SICK WLL180T User Manual

WLL180T Photoelectric sensors for fiber-optic cables
2010-08-02 SICK 17
Subject to change without notice

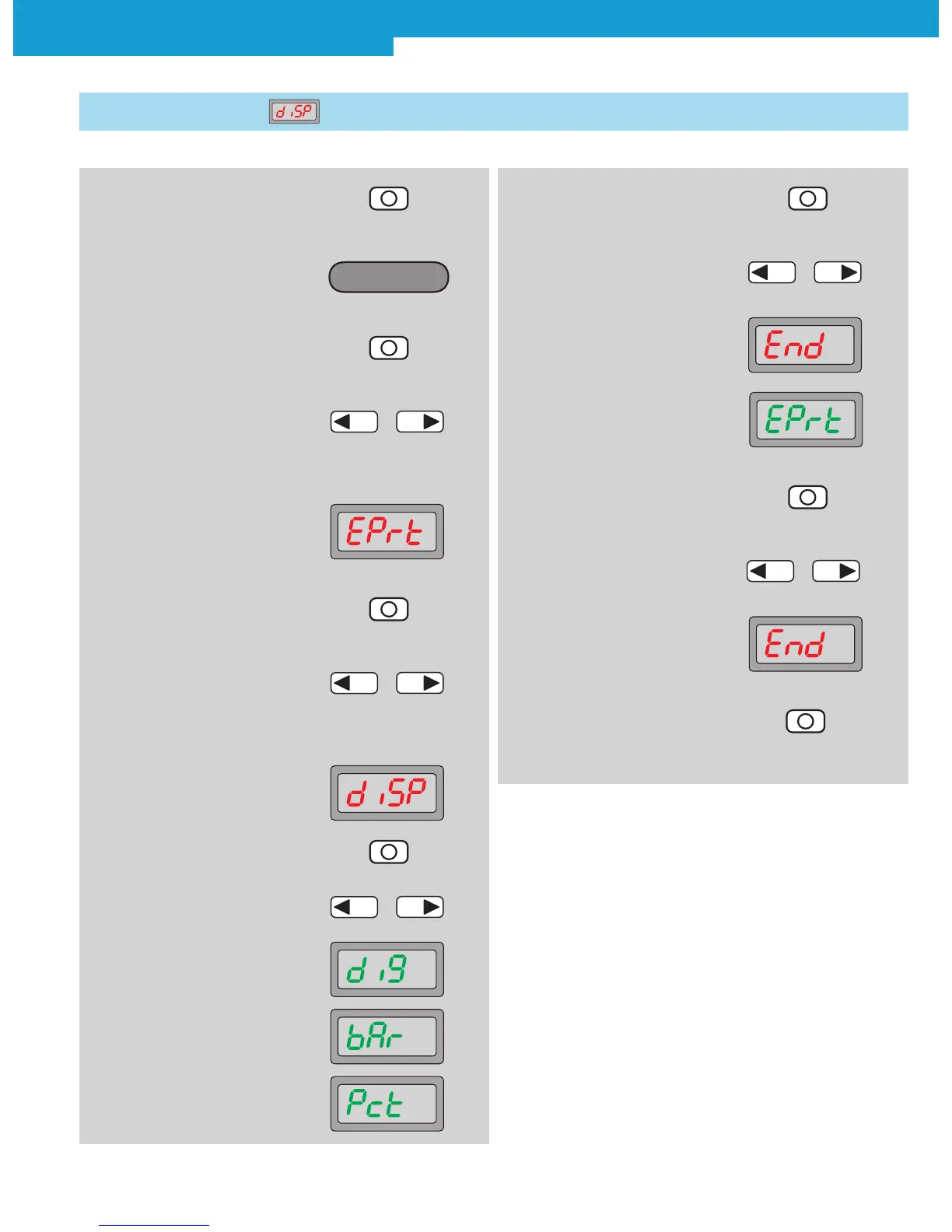

3.2 Display settings
2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys.
5. Expert mode is shown on
the display
Configuring
–
+
7. In Expert mode, select display
settings by pressing the arrow
keys
–
+
6. Press Mode key
8. Display settings are shown
10. Select between numeric
display (diG), bar display (bAr)
and percentage display (Pct)
using arrow keys
11. Finish selection with Mode key
12. Close Expert mode with arrow
key
–
+
9. Press Mode key
3. Press Mode key
–
+
diG: Numeric display (factory setting),
bAr: bar display,
Pct: Percentage display.
13. Finish selection with Mode key
14. Select ending the adjustment
(End)
15. Finish selection with Mode key
–
+
1. Press Mode key for 2 s
