SICK WLL180T User Manual

WLL180T Photoelectric sensors for fiber-optic cables
2010-08-02 SICK 21
Subject to change without notice

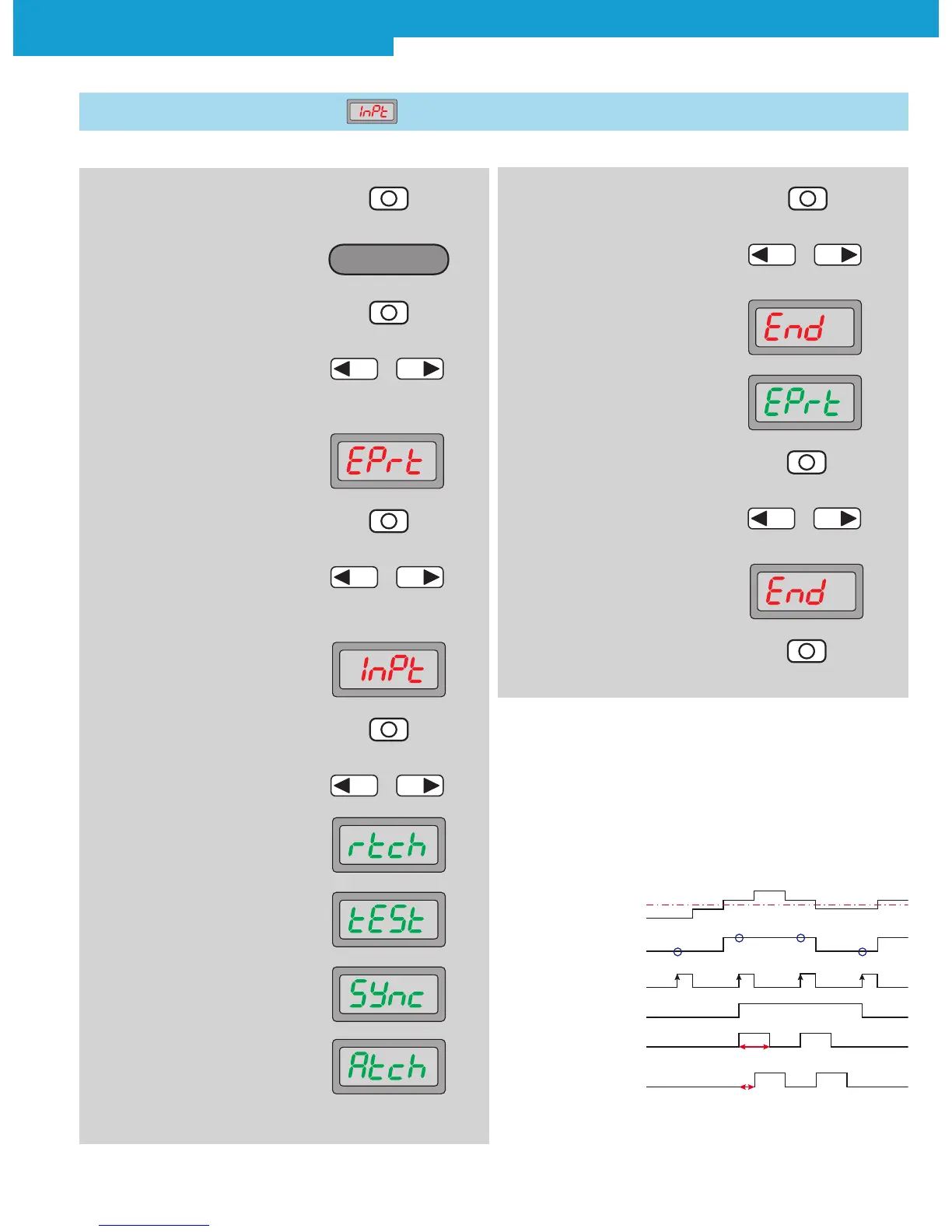

2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys
5. Expert mode is shown on
the display
6. Press Mode key
7. In Expert mode, select input
configuration by pressing the
arrow keys
8. Input configuration is shown
on the display
–
+
–
+
Configuration of the input:
rtch: Remote Teach-in, input for external teach-in
tESt: test input, sender LED is switched off
SYnc: Switching output (Q) is synchronized on an external input
signal.
Atch: Teach-in for all amplifiers in bus mode according to the set
teach mode.
10. Select with arrow keys
external teach-in (rtch), test
input (tESt), synchronization
(SYnc) or bus teach-in (Atch)
3.6 External input configuration
9. Press Mode key
3. Press Mode key
–
+
1. Press Mode key for 2 s 11. Finish selection with Mode key
12. Close Expert mode with arrow
key
–
+
13. Finish selection with Mode key
14. Select ending the adjustment
(End)
15. Finish selection with Mode key
–
+
Configuring
Received light value
(Red: Threshold)
Internal judged result
Synchronization input (SYnc)
(External Clock signal)
Synchronized output
one-shot time
Synchronized one-shot output
on delay time
Synchronized output
with on delay timer
