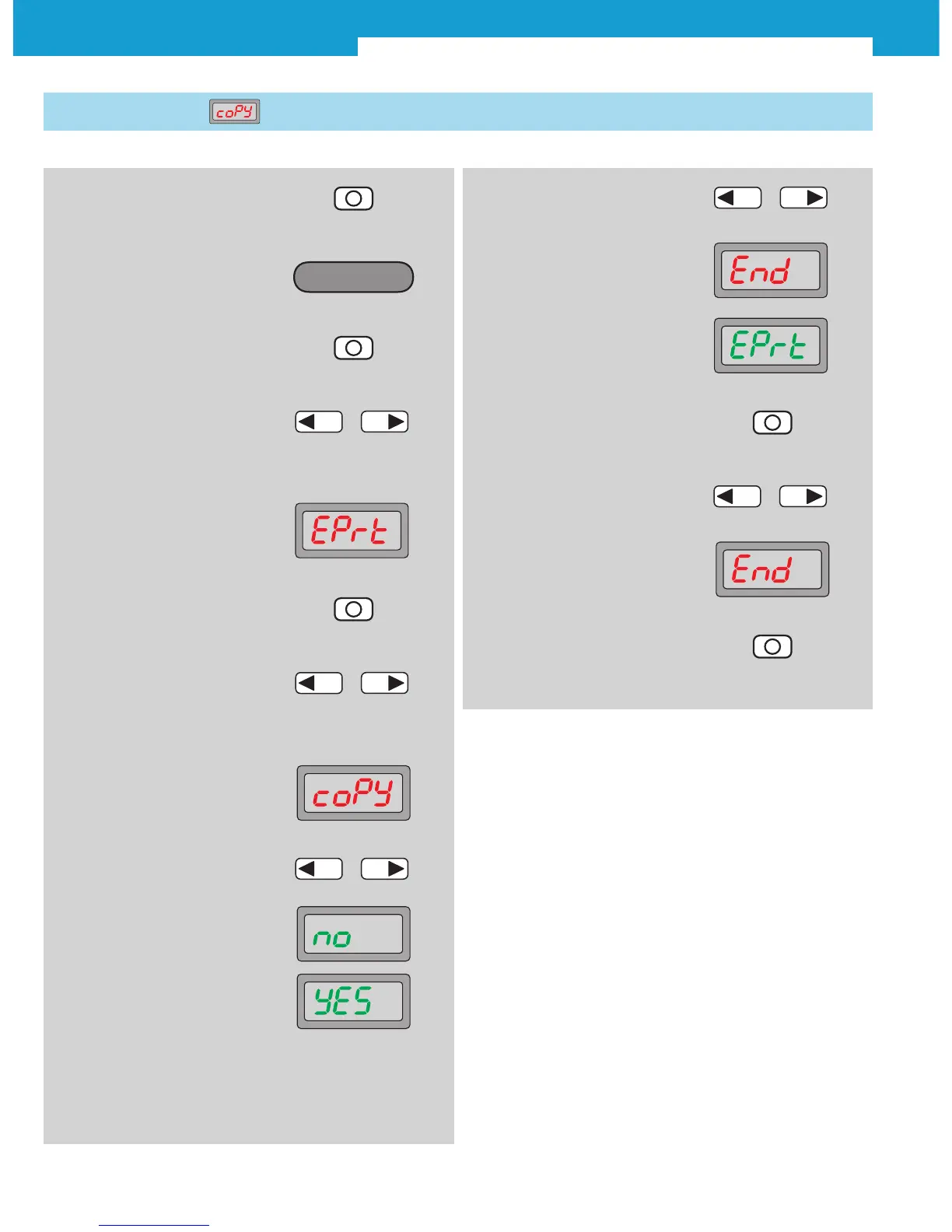

2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys
5. Expert mode is shown on
the display
6. Press Mode key
7. In Expert mode, select Copy
mode by pressing the arrow
keys
8. Copy mode setting is shown
on the display
–
+
–
+
The copy function is only available in bus mode:
no: No copy function,
YES: Copy function, all settings of the base unit are copied to
the connected expansion units. During the copy operation
the green display shows the number of the actually copied
extension unit.
Note:
In locked expansion units (LocL), no data of the base unit
is copied.
The copy function is not available when response time “HiGh”
is selected.
9. Select between “no” and
“YES” by pressing the arrow
keys
3.7 Copy mode (Bus operation only)
–
+
3. Press Mode key
1. Press Mode key for 2 s 10. Close Expert mode with arrow
key
–
+
11. Finish selection with Mode key
12. Select ending the adjustment
(End)
13. Finish selection with Mode key
–
+
