SICK WLL180T User Manual

WLL180T Photoelectric sensors for fiber-optic cables
2010-08-02 SICK 25
Subject to change without notice

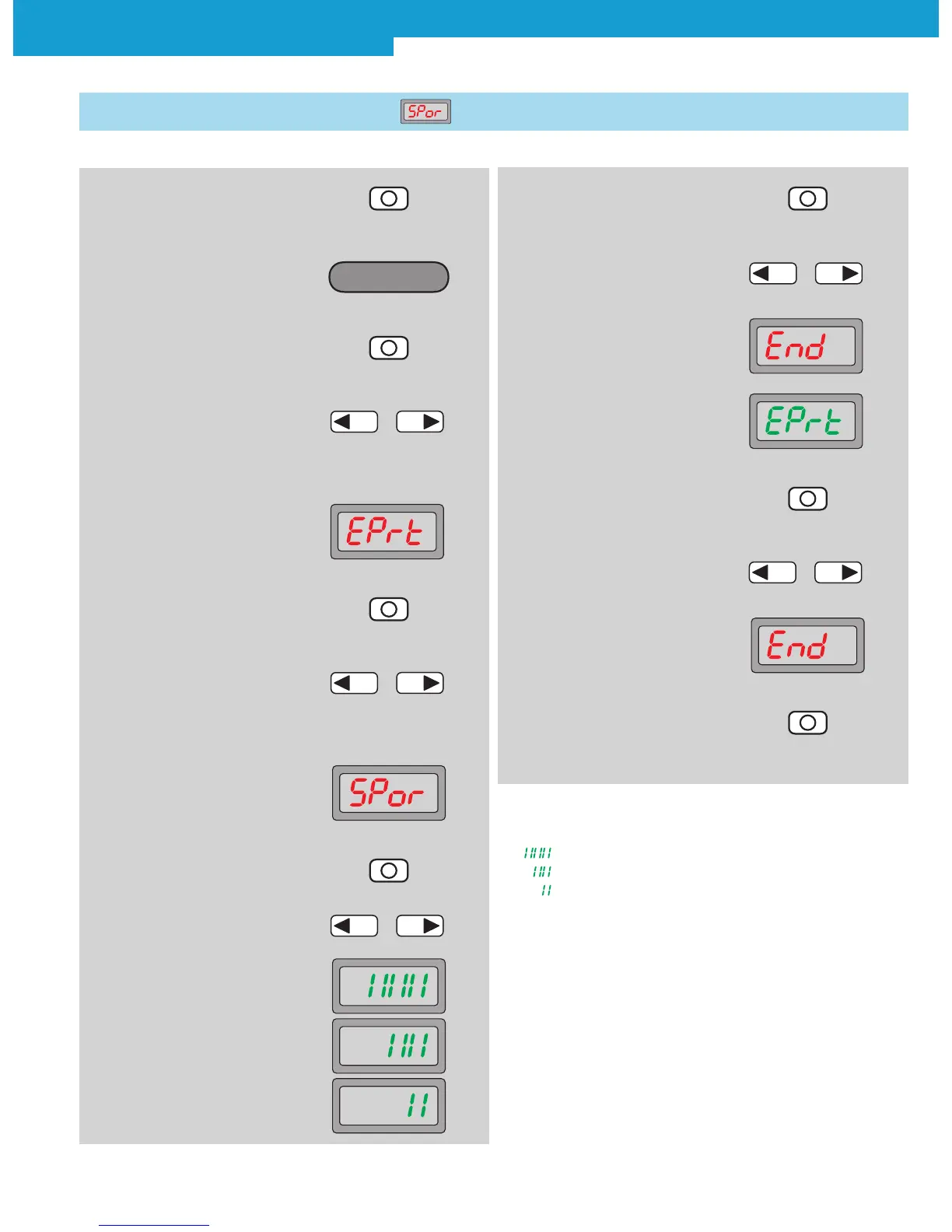

2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys
5. Expert mode is shown on the
display
6. Press Mode key
7. In Expert mode, select
power setting by pressing the
arrow keys
8. Sender power setting is shown
on the display
–
+
–
+
Adjustment of the luminosity of the sender LED:
Full luminosity (factory setting),
medium strength,
low strength.
The power of the sender LED can be set in three stages: satura-
tion, e. g. for highly reflective objects, is prevented, and the life of
the sender LED is extended.
10. Select between standard
setting, medium strength
setting and low strength
setting by pressing the
arrow keys
3.10 Power setting of the sender LED
9. Press Mode key
3. Press Mode key
–
+
Typical applications: highly reflective objects, or very short
distance to the object, semi-transparent objects.
1. Press Mode key for 2 s
12. Close Expert mode with arrow
key
–
+
13. Finish selection with Mode key
14. Select ending the adjustment
(End)
15. Finish selection with Mode key
–
+
11. Finish selection with Mode key
Configuring
