SICK WLL180T User Manual

WLL180T Photoelectric sensors for fiber-optic cables
20 SICK 2010-08-02
Subject to change without notice

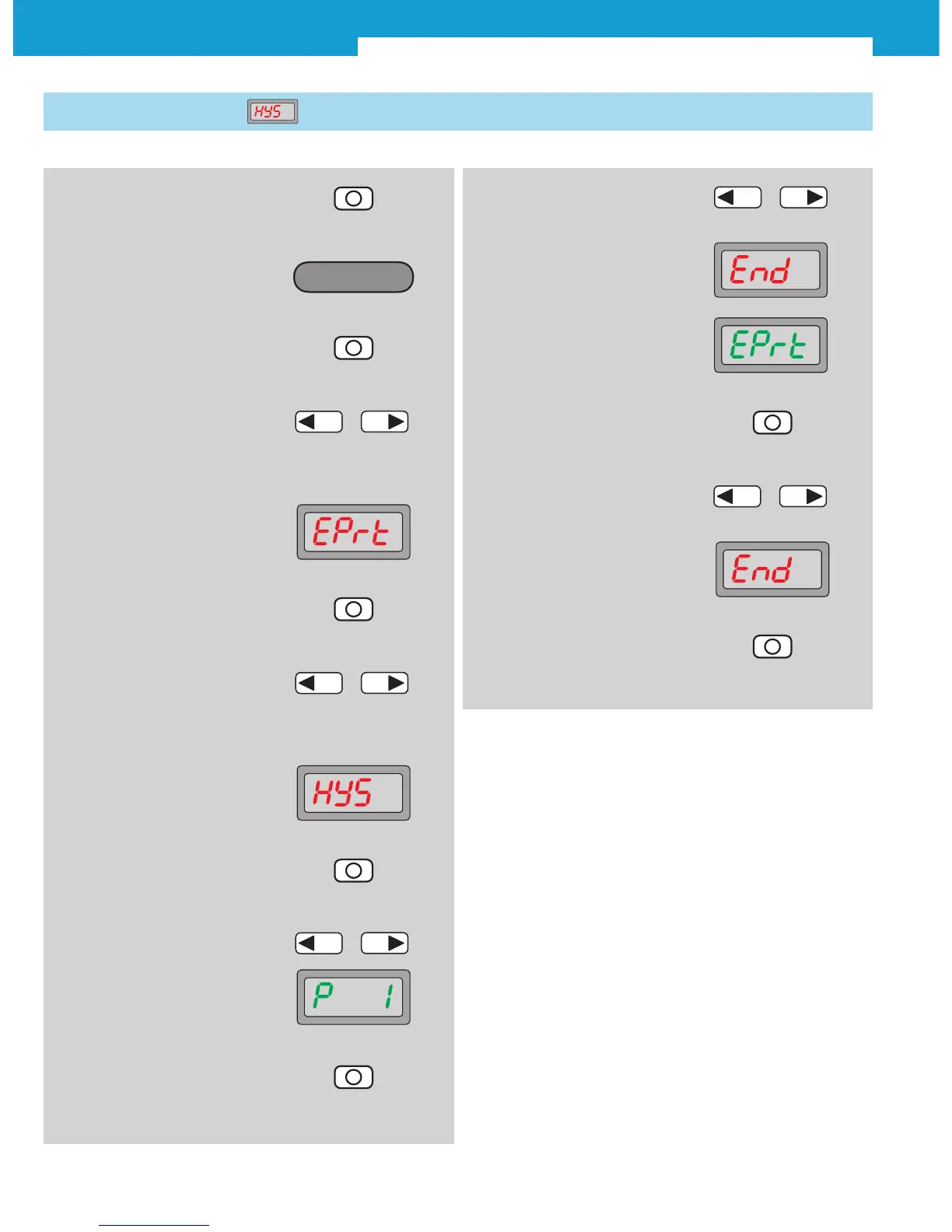

2. Operating mode Configuring
active
4. In the basic menu, select
Expert mode by pressing the
arrow keys
5. Expert mode is shown on
the display
6. Press Mode key
7. In Expert mode, select
Hysteresis by pressing the
arrow keys
8. Hysteresis setting is shown on
the display
11. Finish selection with Mode key
–
+
–
+
Setting of hysteresis in percent (%) of the switching threshold
(nominal value).
Value range: 1 ... 40
10. Hysteresis setting by
pressing the arrow keys
3.5 Hysteresis setting
9. Press Mode key
–
+
3. Press Mode key
1. Press Mode key for 2 s
12. Close Expert mode with arrow
key
–
+
13. Finish selection with Mode key
14. Select ending the adjustment
(End)
15. Finish selection with Mode key
–
+
Configuring
