[dw_7SR45 case dimensions side view, 4, en_US]

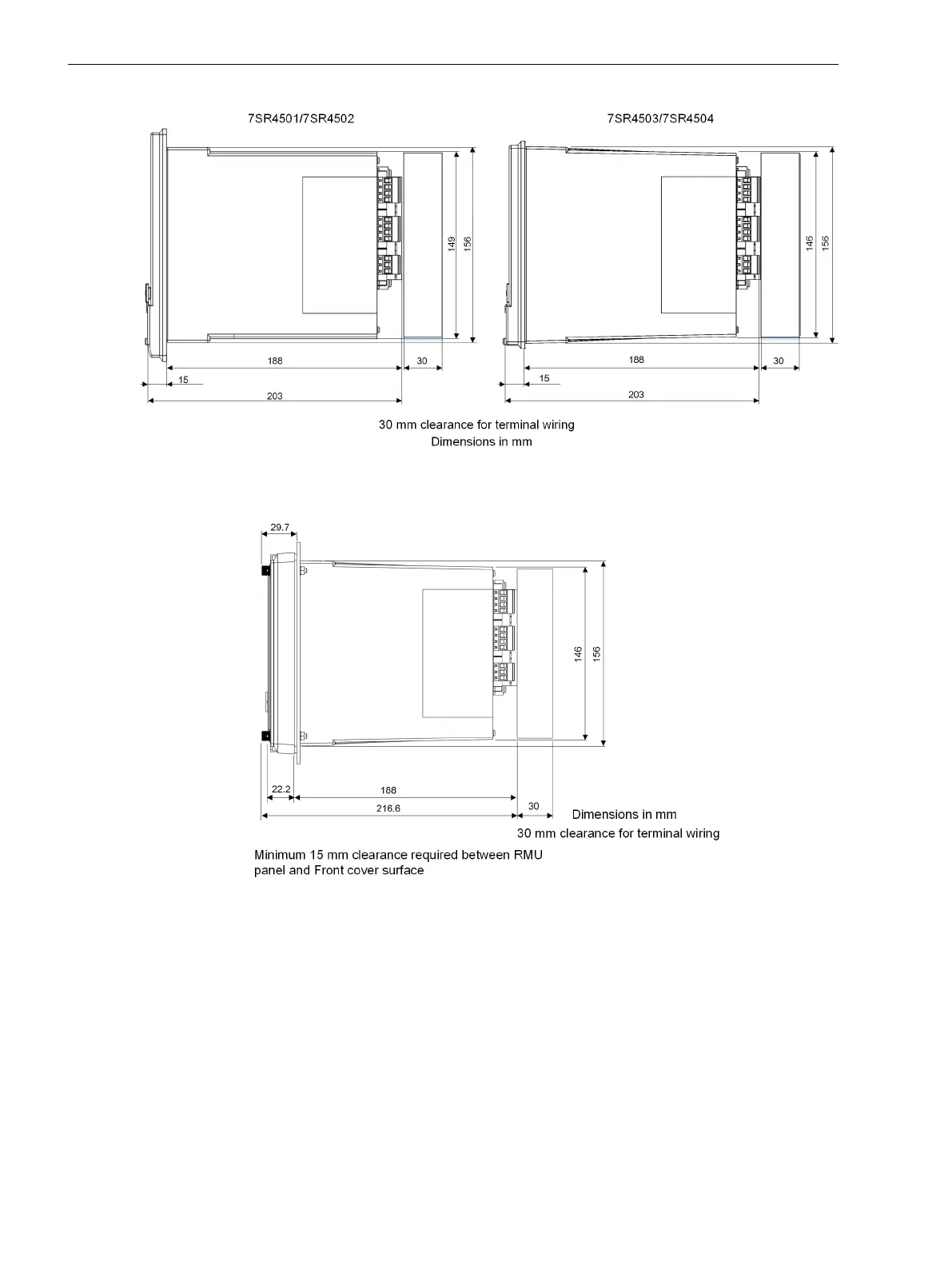

Figure 2-4 Side View
[dw_7SR45 case dimensions side view with front cover, 2, en_US]
Figure 2-5 Side View with Front Cover
Installing the Device
2.1 Drilling Patterns and Device Dimensions
