Installing Surface Mounting Bracket
Table 3-3 Fastener Kit Specification for Surface Mounting Bracket
Fastener Kit Specifications Quantity
M6x8mm Stainless steel Phillips pan head machine
screws
4
M6 Stainless steel spring washer 4
M4x8mm Stainless steel Phillips pan head machine
screws
1
M4 Stainless steel plain washer 1
²
Fasten the surface mounting bracket to the RMU/protection panel using 4 M6x8mm stainless steel Phil-
lips pan head machine screws and M6 stainless steel spring washers with a torque of 8.2 Nm.

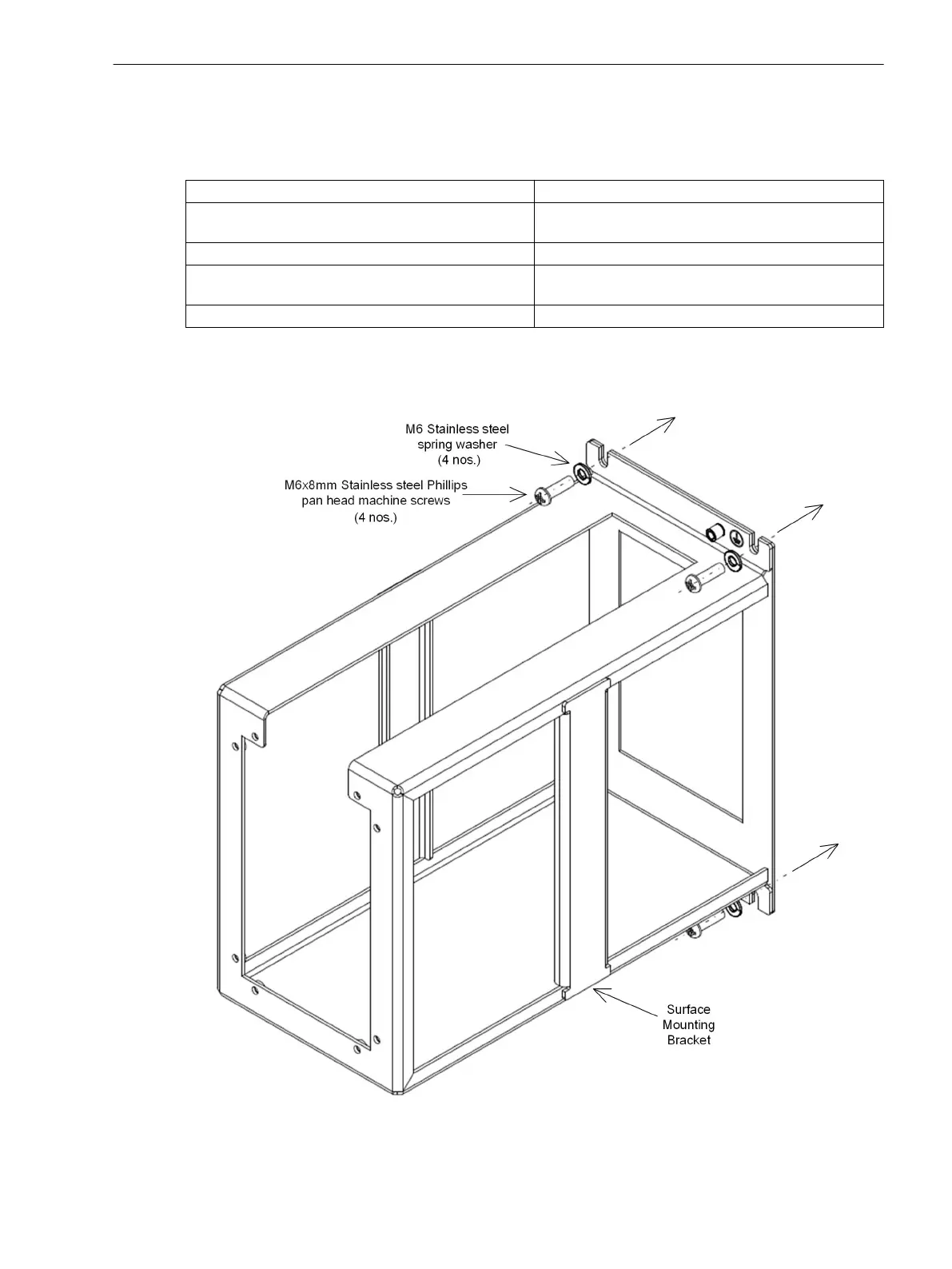

[dw_7SR45_surfacemountbracket_step1, 1, en_US]
Figure 3-8
Fixing Surface Mounting Bracket to the RMU/protection panel
