Siemens Cerberus PACE - 10 Desk Call Station (RS485, 8+1) PT2009-A1 and Call Station Extension (RS485, 8) PTO2006-A1; Operating Functions PT2009-A1

Desk call station (RS485, 8+1) PT2009
-
A1 and Call station extension (RS485, 8) PTO2006
-
A1
Operating functions PT2009-A1
10
A6V10430571_en--_c 35 | 57
10 Desk call station (RS485, 8+1) PT2009-A1
and Call station extension (RS485, 8)
PTO2006-A1

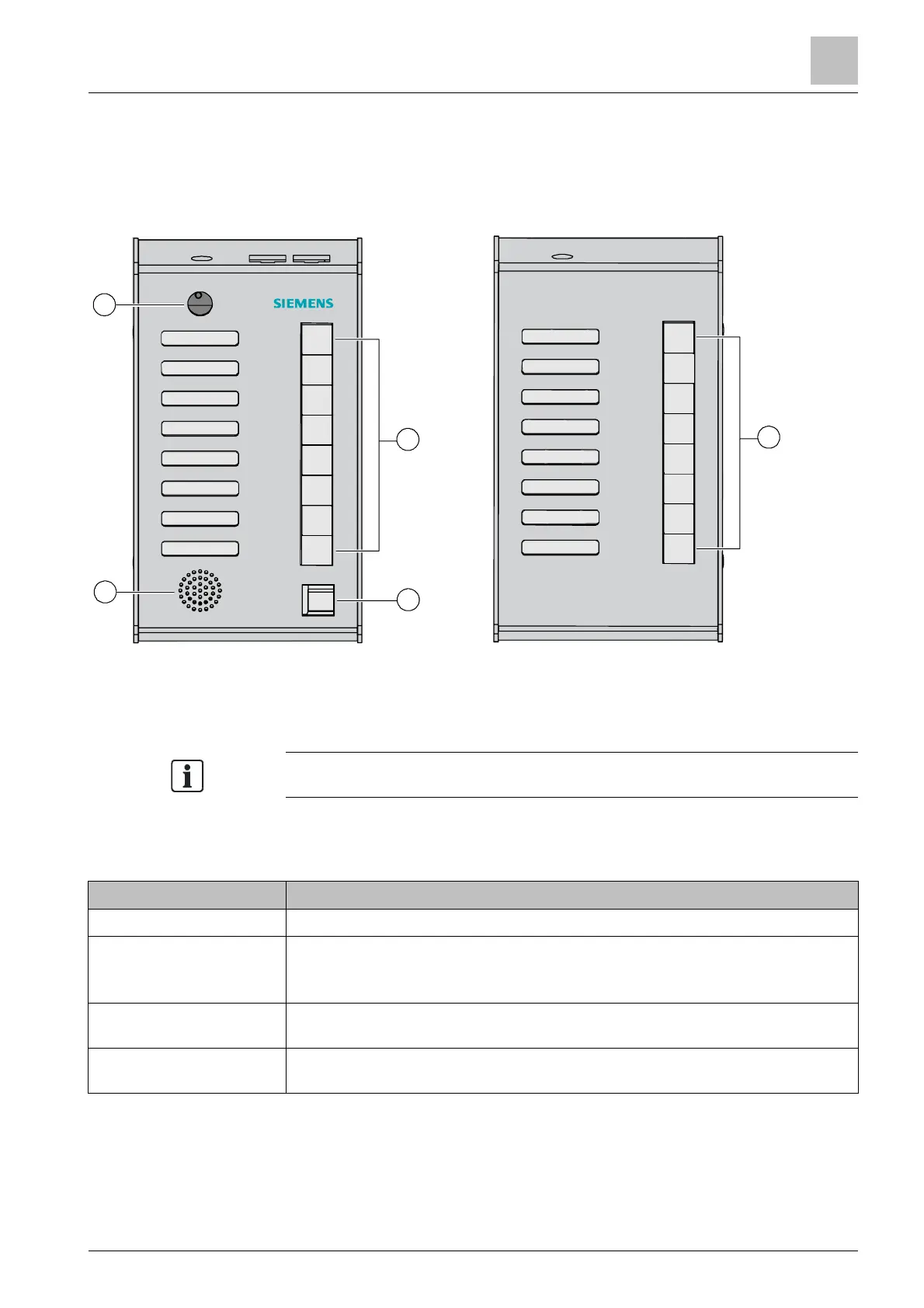

1 Microphone 3 Talk button
2 Configurable buttons 4 Speaker
You can create and print the button identification in '
PACE
-
Design
'.
10.1 Operating functions PT2009-A1
Function Design
Selecting zone
◈
Press the button labeled accordingly
Carrying out manual
announcement /
triggering evacuation
1. Press and hold the talk button
2. Talk into the microphone
Playing pre-recorded
voice message
◈
Press the button labeled accordingly
Stopping voice message
playback
◈
Press the button labeled accordingly
PTO2006
PT2009
ZONE1
ZONE2
ZONE3
ZONE4
ZONE5
ZONE6
ZONE7
ZONE8
ZONE9
ZONE10
ZONE11
ZONE12
ZONE13
ZONE14
ZONE15
ZONE16
1
3
2
4
2
