Siemens CP 343-1 User Manual

LEDs
CP 343-1
32 Manual, 12/2018, C79000−G8976−C201-08

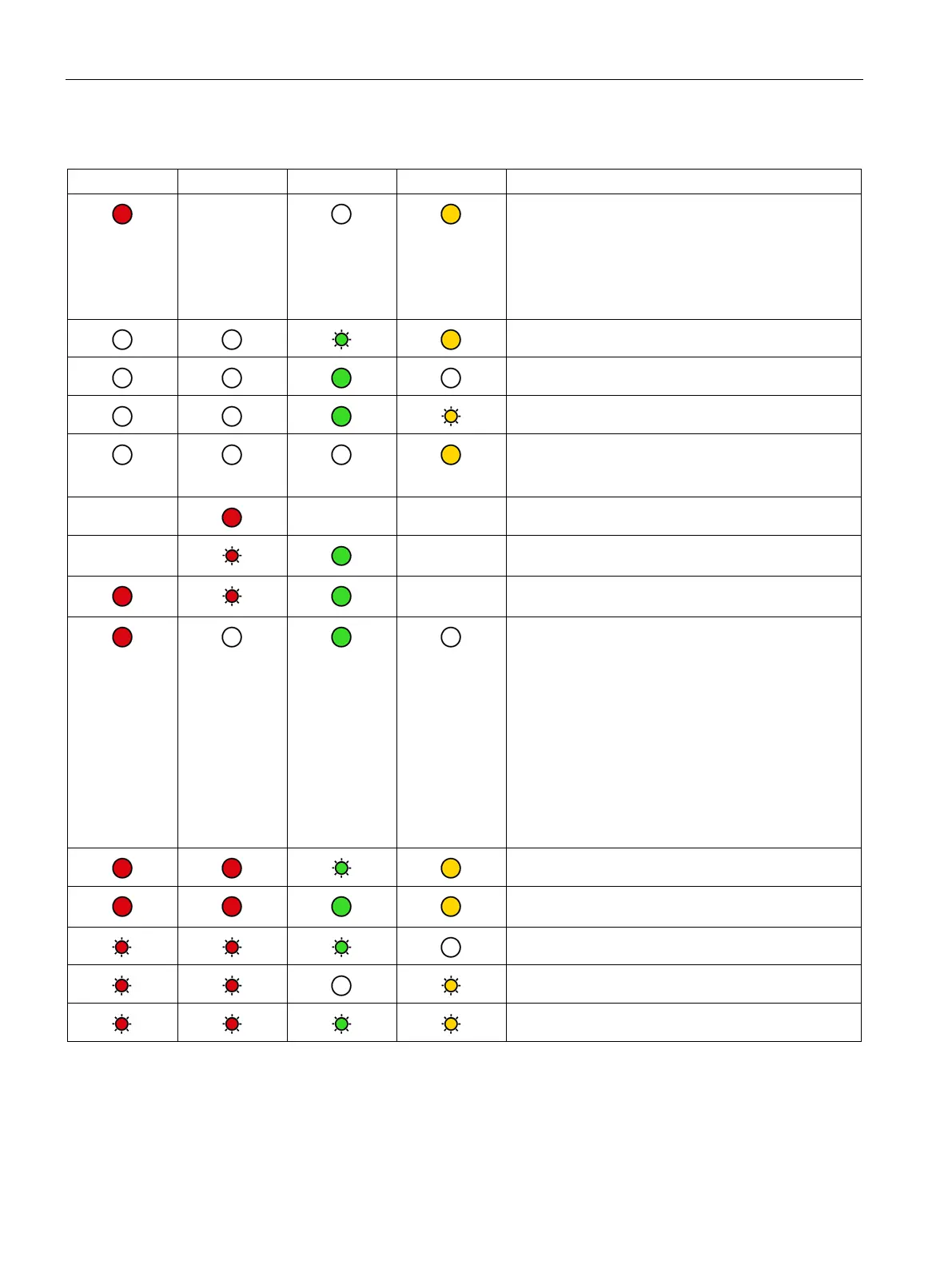

Table 4- 1 LEDs: SF, BF, RUN, STOP
SF(red)
BF (red)
RUN (green)
STOP (yellow)
CP operating mode
-
• Starting up after power "ON"
or
• Stopped (STOP) with errors
In this state, the CPU or intelligent modules in the
rack remain accessible using PG functions.
Starting up (STOP → RUN)
Running (RUN)
Stopping (RUN → STOP)
Stopped (STOP)
In STOP mode, configuring and performing diagnos-
tics on the CP remain possible.
- - - Duplicate IP address detected
-
- The is configured as a PROFINET IO device. There is
no data exchange with the PROFINET IO controller.
- The CP (configured as an I/O controller) has recog-
nized at least 1 IO device as being disrupted.
Running (RUN) with error. Possible causes:
• Event display in conjunction with the MRP func-
tion. The CP diagnostics buffer provides detailed
information.
• Extended port diagnostics reports an error. Ex-
amples:
– Current port setting (transmission medium,
duplex) does not correspond to the configura-
tion.
– Port interconnection does not correspond to
the configuration.
Loading using the Firmware Loader is active.
*
)
Firmware activation after loading using the Firmware
Loader is active. *
)
Firmware was successfully downloaded.
*
)
Firmware download aborted.
*
)
Module fault / system error
*
)
Does not apply to loading via the update center in Web diagnostics.

Siemens CP 343-1 Specifications

General

Product Type Designation	CP 343-1
Power Supply	24 V DC
Protection Class	IP20
Product Type	Communications processor
Interface	Ethernet
Data Transmission Rate	10/100 Mbit/s
Protocols Supported	TCP/IP, UDP
Number of Ports	1
Operating Temperature	0 to 60 °C
