Siemens CP 343-1 User Manual

CP 343-1
Manual, 12/2018, C79000−G8976−C201-08
3
Preface
Legend:
①
LEDs
②
Under the front panel:
PROFINET interface, 2 x 8-pin RJ-45 jack
③
Under the front panel:
- Socket for 24 V DC power supply
- Slider for setting the ground connector
④
Article number
⑤
Under the front panel:
printed text with MAC addresses and firmware version
⑥
X = placeholder for hardware product version

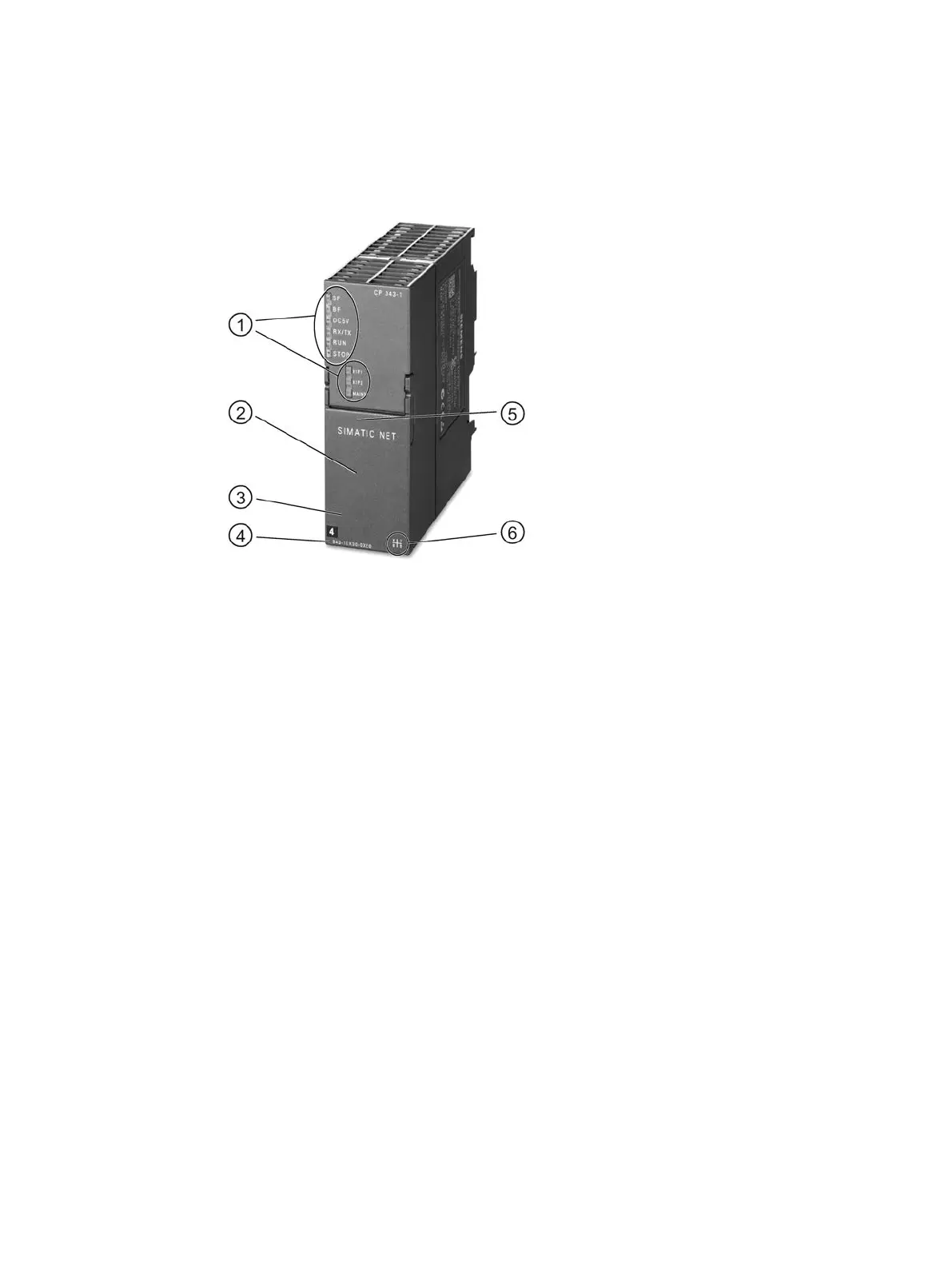

Figure 1 CP 343-1
Validity and product names
This description contains information on the following product:
● CP 343−1
Article number 6GK7343-1EX30-0XE0
Hardware product version 7
Firmware version V3.0
Communications processor for SIMATIC S7−300 / C7−300 und SINUMERIK 840D power
line
● CP 343−1
Article number 6AG1343-1EX30-7XE0
Hardware product version 7
Firmware version V3.0
Communications processor for SIMATIC S7−300 / C7−300 und SINUMERIK 840D power
line - conformal coating

Siemens CP 343-1 Specifications

General

Product Type Designation	CP 343-1
Power Supply	24 V DC
Protection Class	IP20
Product Type	Communications processor
Interface	Ethernet
Data Transmission Rate	10/100 Mbit/s
Protocols Supported	TCP/IP, UDP
Number of Ports	1
Operating Temperature	0 to 60 °C
