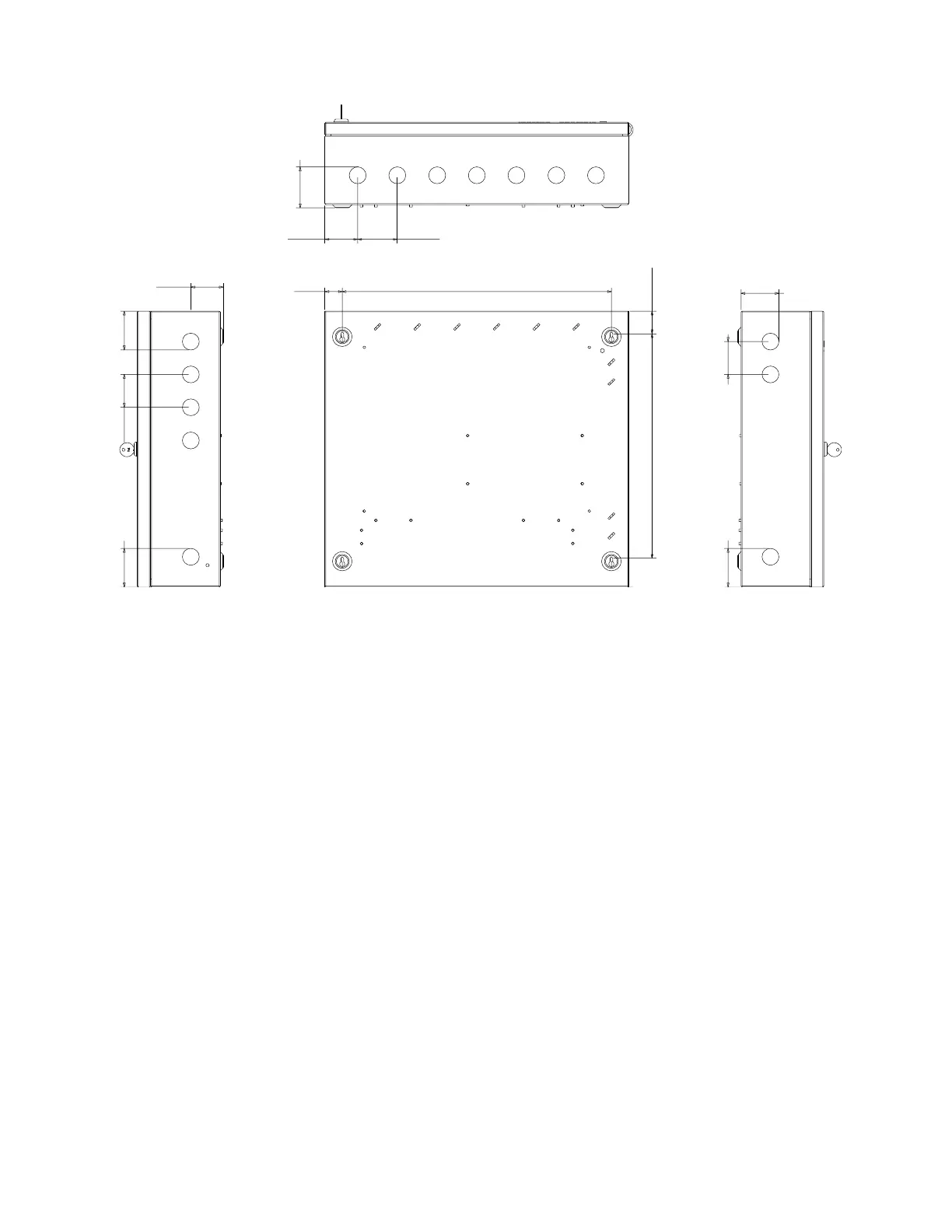

FC2005 Installation Size
Remove Knock-Outs
Prepare the enclosure for electrical wiring by breaking out the appropriate conduit entry points.
Segregation is required between power limited and non-power limited conductors. In order to
maintain the minimum separation, follow the wire routing illustrated on page 31. Separation of
at least 1/4 inch is required between the non-power limited and power limited conductors.
Power limited and non-power limited wiring must be run in separate conduit.
Attach conduit (if required) and run wires as required. Label each field cable for future
reference.
Basic system wiring and detector location must be in accordance with NFPA 72 or other
instructions from the appropriate local authority having jurisdiction. Unit connections and
limitations are as indicated on the wiring diagrams included in System Wiring part of this
manual.
Wire reference data are included in Appendix A.
16”
1 25/64”3 1 23/64”
1 1/32”
1 61/64”
6-2 3/8”
1 7/16”
1 7/16”
1 31/32”2 5/16”
1 3/16”
1 31/32” 2 5/16”
2 5/16”
