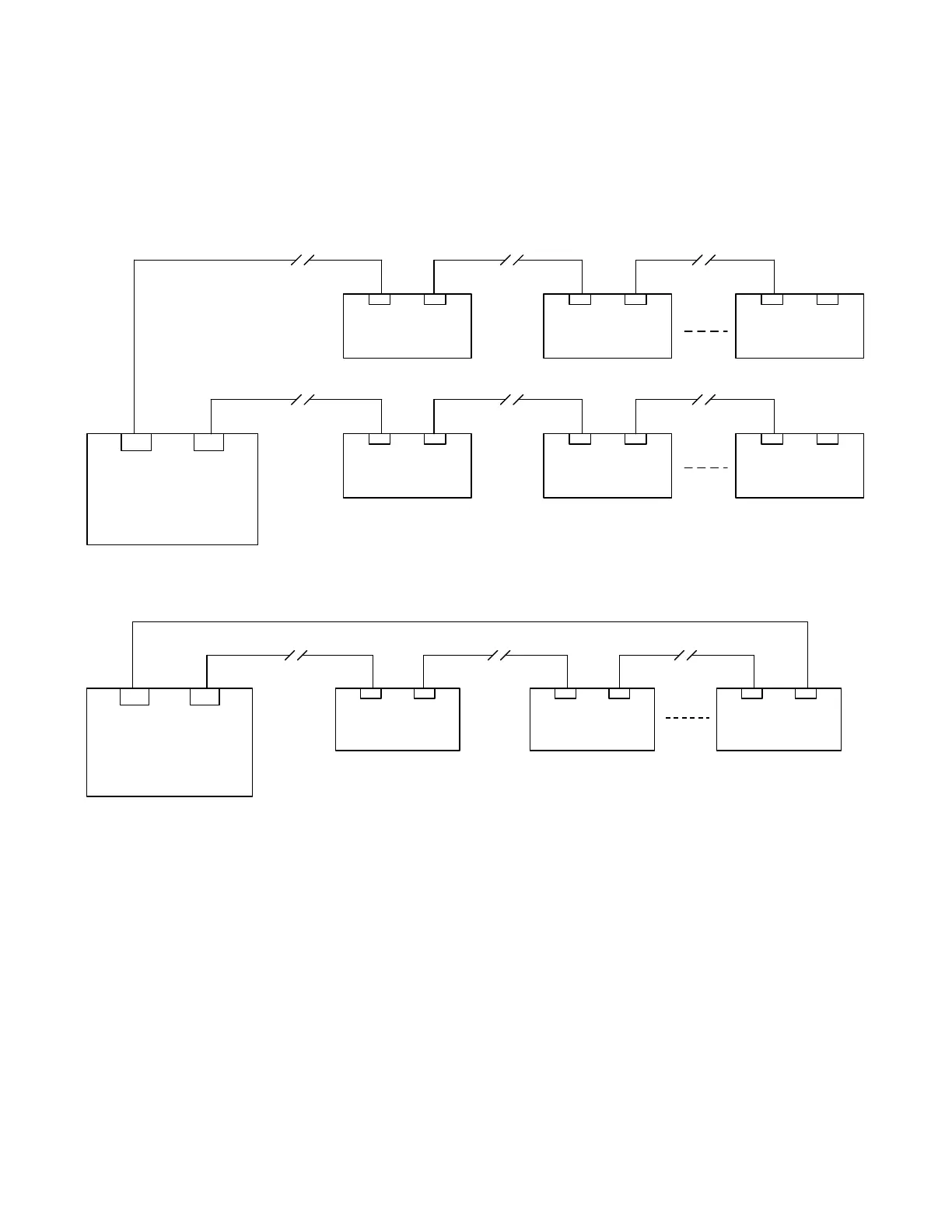

Serial Remote Device Wiring Overview
When connecting devices on the Serial Interface Circuit
(UFP), the data wires must be daisy
chained and with no T-taps to preserve the integrity of the data. The following diagrams show
the proper wiring.
