89
Releasing indication configuration in Canada
For Canadian applications, LEDs on FT2018 or FT2019 annunciator shall be configured to
indicate pre-discharge, discharge, abort in alarm condition and “invalid abort” trouble in normal
standby condition.

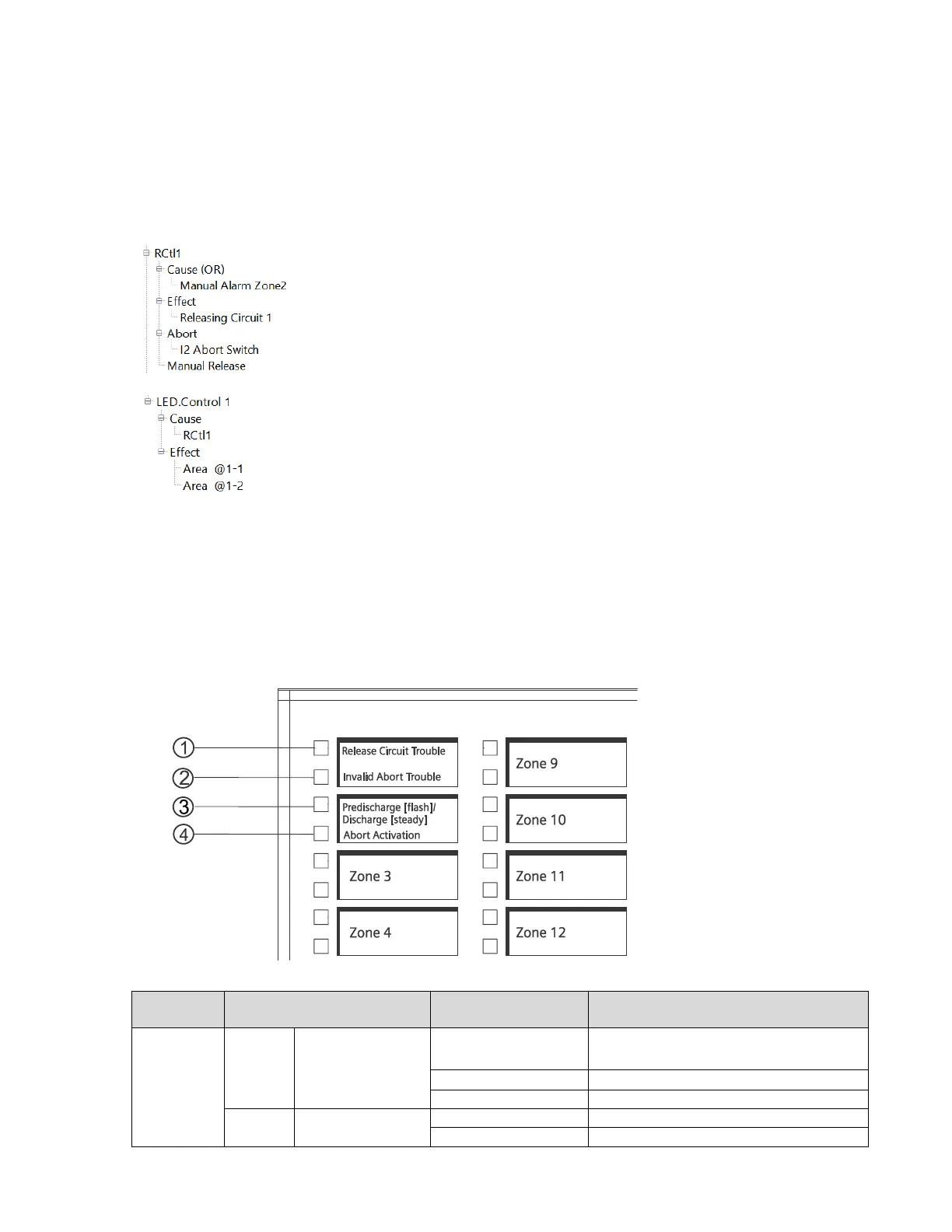

Following is an example of configuration:
Preconditions:
• Releasing control configuration
• LED control configuration
Area configuration
Under the property for Area, there is a setting named “Function”. Two options are
available for it: Normal and Release Trouble Indication. Users can select either one as
needed. Each Area corresponds to one LED zone on the annunciator. Area 1
corresponds to zone 1; Area 2 corresponds to zone 2, etc. By selecting “Normal” or
“Release Trouble Indication”, users get different LED status and different meaning the
LEDs represent. In this case, Area 1 is set to “Release Trouble Indication” and Area 2 is
set to “Normal”:
Predischarge
[flash]/Discharge
[steady]
Abort switch is activated
Abort switch is not activated
To Next Page
