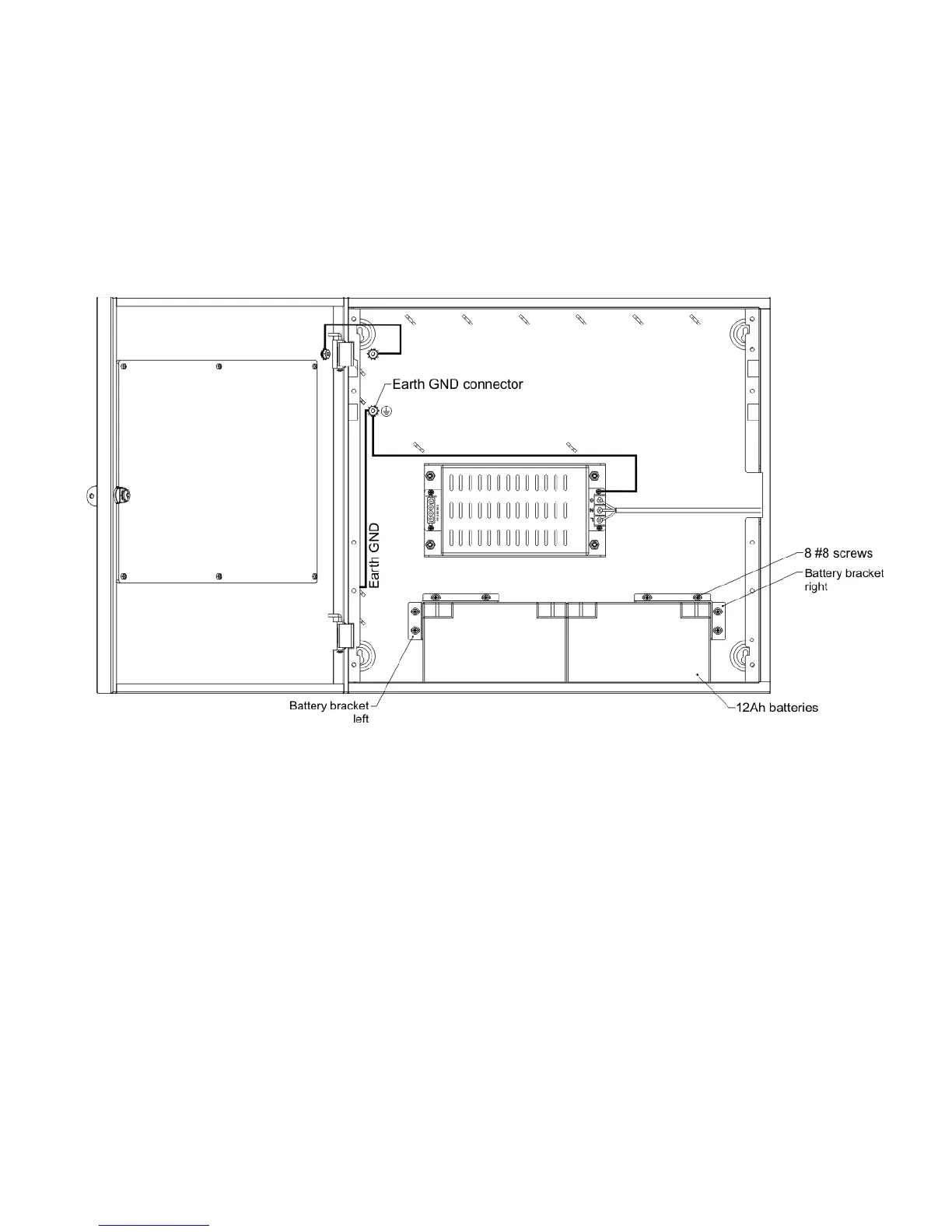

Battery Installation
Use the battery calculation chart to determine the battery size. Place the batteries in the space
provided in the bottom of the backbox. Secure the battery bracket (if required) to the back of
enclosure using the eight provided #8-32 x 3/8 screws.
Recommended battery size : Length:5.94 inch, Width: 3.86 inch, Height:3.7 inch.
A separate enclosure must be used if a battery set larger than 12 AH in the FC901 is required.
The CAB-BATT or any enclosure UL Listed for Fire Protective Signaling Use may be used.
29
