Main Board Assembly Installation

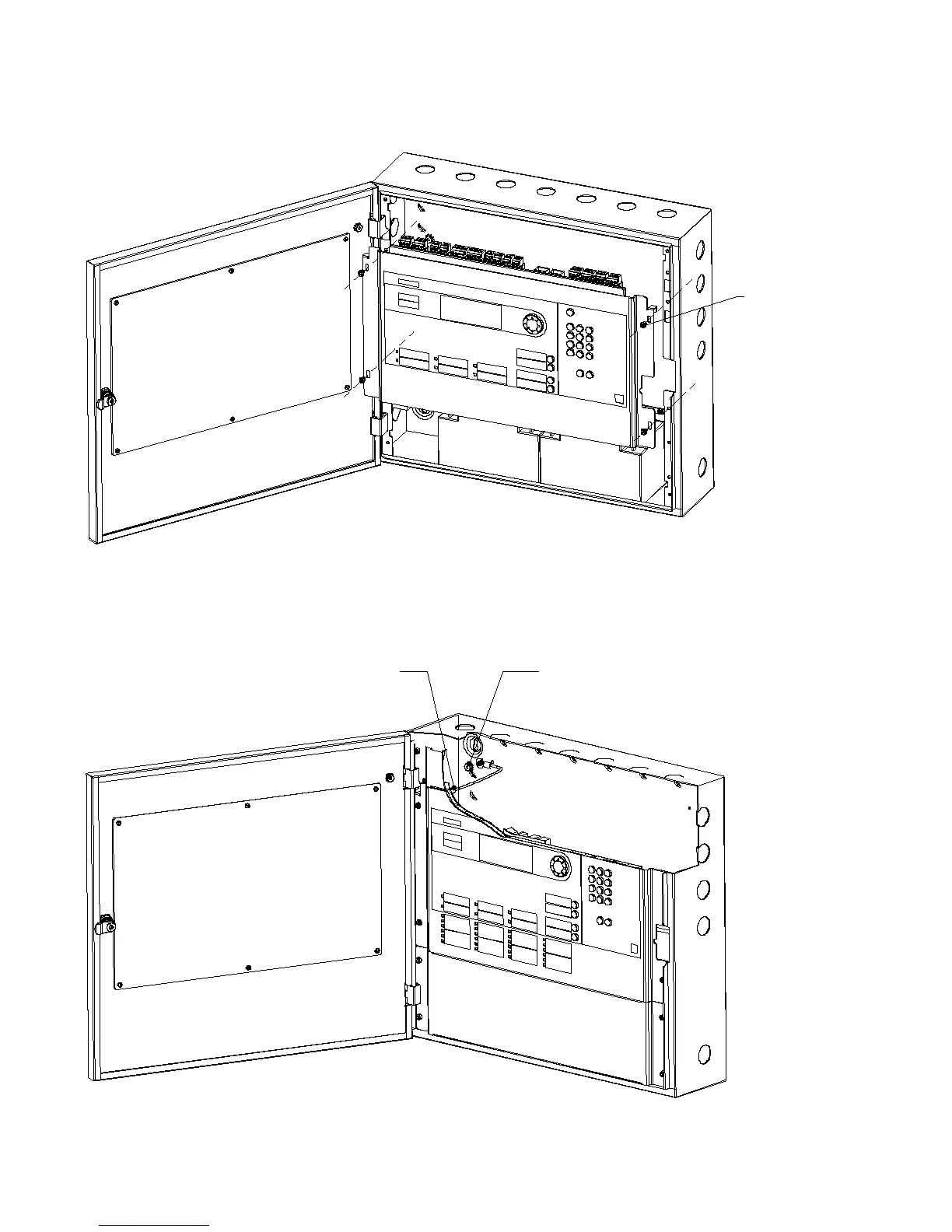

Secure the main board assembly to the enclosure using the four provided #8-32 x 3/8 screws

Earth Cable Installation

Connect the earth cable to the backbox and connector at the upper left corner of the main

board.

4 #8 screws

Secure the nut on the stud

Plug the earth cable on the

connector on the main board
