NAC Wiring
Two individual NACs are provided and the polarity shown is when the NAC is activated.
Power Limited
Supervised
Current Draw Maximum Line Resistance
2.5A 3.2Ω
2.0A 4.0Ω
1.5A 5.3Ω
1.0A 8.0Ω
0.5A 16.0Ω
Alarm voltage: 16 to 32VDC
Maximum ripple: 0.1VAC
Used for special application only
Two Style Y/Class B or one Style Z/Class A
Total maximum current: 2.5A
Refer to Cerberus Pro_NACs_A6V10333532_c_en to determine synchronized notification
appliances allowed per NAC

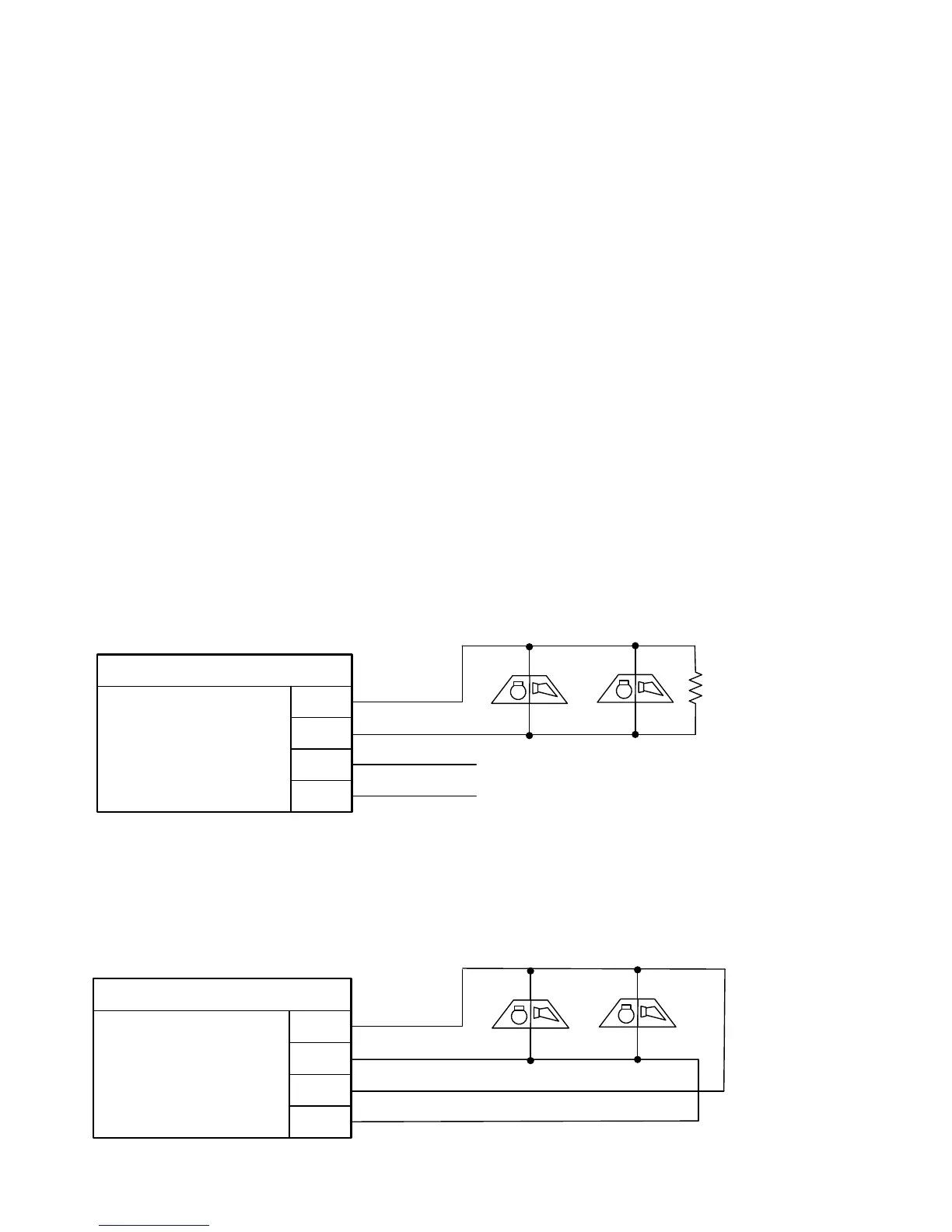

Style Y, Class B
Supervised
Power Limited
See Appendix B for compatible devices
EOL available in the package as part of accessory
24K 0.5W
resistor*
…..
N_AN
N_AP
N_BN
NAC
N_BP
Same as above
Style Z, Class A
Supervised
Power Limited
See Appendix B for compatible devices
No EOL devices
38
