Siemens Hipath 5000 - SIP Ports

administration.fm
A31003-01010-M11-1-7619, 29/01/2007
HiPath 8000 - OpenStage 60/80, Administrator Manual
3-31
Administration
System Settings
Administration via Local Phone
3.4.4.2 SIP Ports
In this group of parameters, the ports for the SIP server, the SIP registrar, and the SIP gateway
are defined (for further information see Section 3.4.4.1, “SIP Addresses”), as well as the SIP
port used by the phone (SIP local).
Data required
• SIP server: Port of the SIP proxy server.
• SIP registrar: Port of the registration server.
• SIP gateway: Port of the SIP gateway.
• SIP local: Port used by the phone for sending and receiving SIP messages.
Administration via WBM

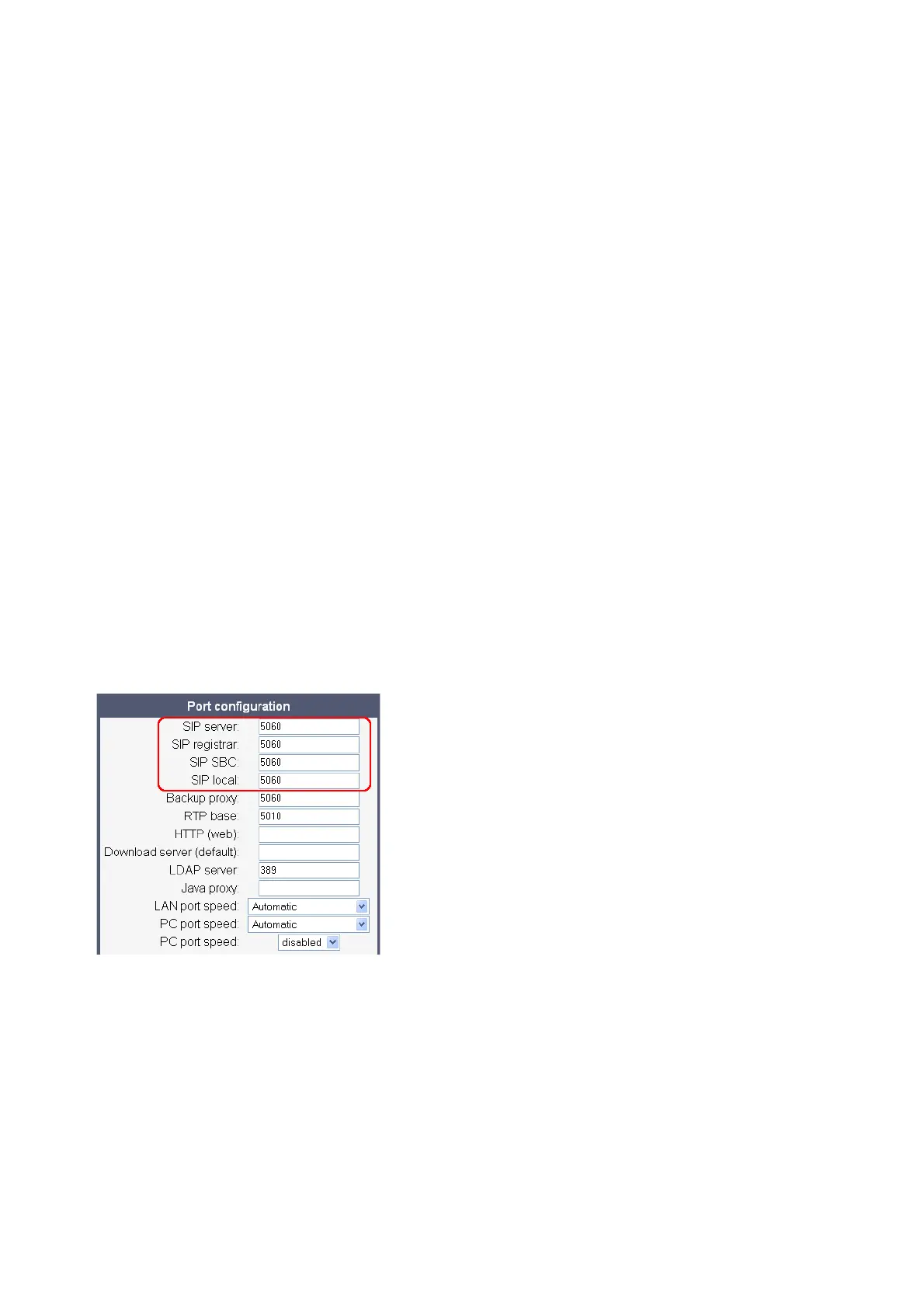

Network > Port configuration
|
--- Administration
|
--- System
|
--- Registration
|
--- SIP Addresses
|--- SIP server
|--- SIP registrar
|--- SIP gateway
