Application and properties
1.1 Application, modes and operating modes
IE/PB LINK PN IO
Operating Instructions, 11/2017, C79000-G8976-C393-02
13
Gateway in standard operation

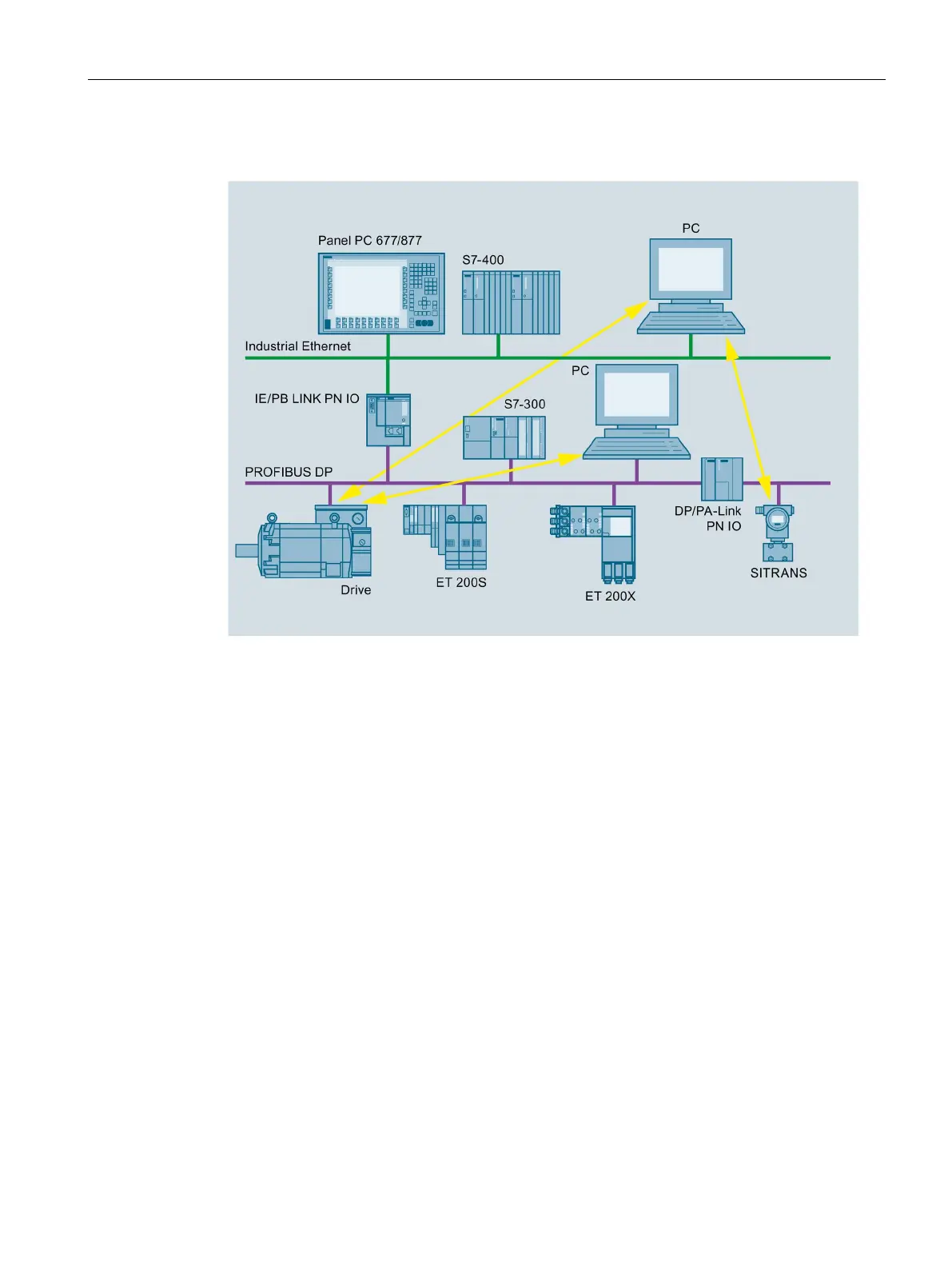

Figure 1-2 IE/PB LINK PN IO as gateway in standard operation
In standard operation, the LINK supports the following functions:
● PG/OP communication, e.g. for loading programs and configuration data.
● Data record routing, among other things, for configuring field devices, for example with
SIMATIC PDM.
● Gateway to a DP master system
● S7 routing
You will find further details about the functions in the below.
