15.2 Connection diagrams for fuel train
applications (examples)
15.2.1 Gas direct ignition (G), 1-stage
SV
V1
Program
G
Gas direct 1-stage
X7-04
LME73.000...
X7-01

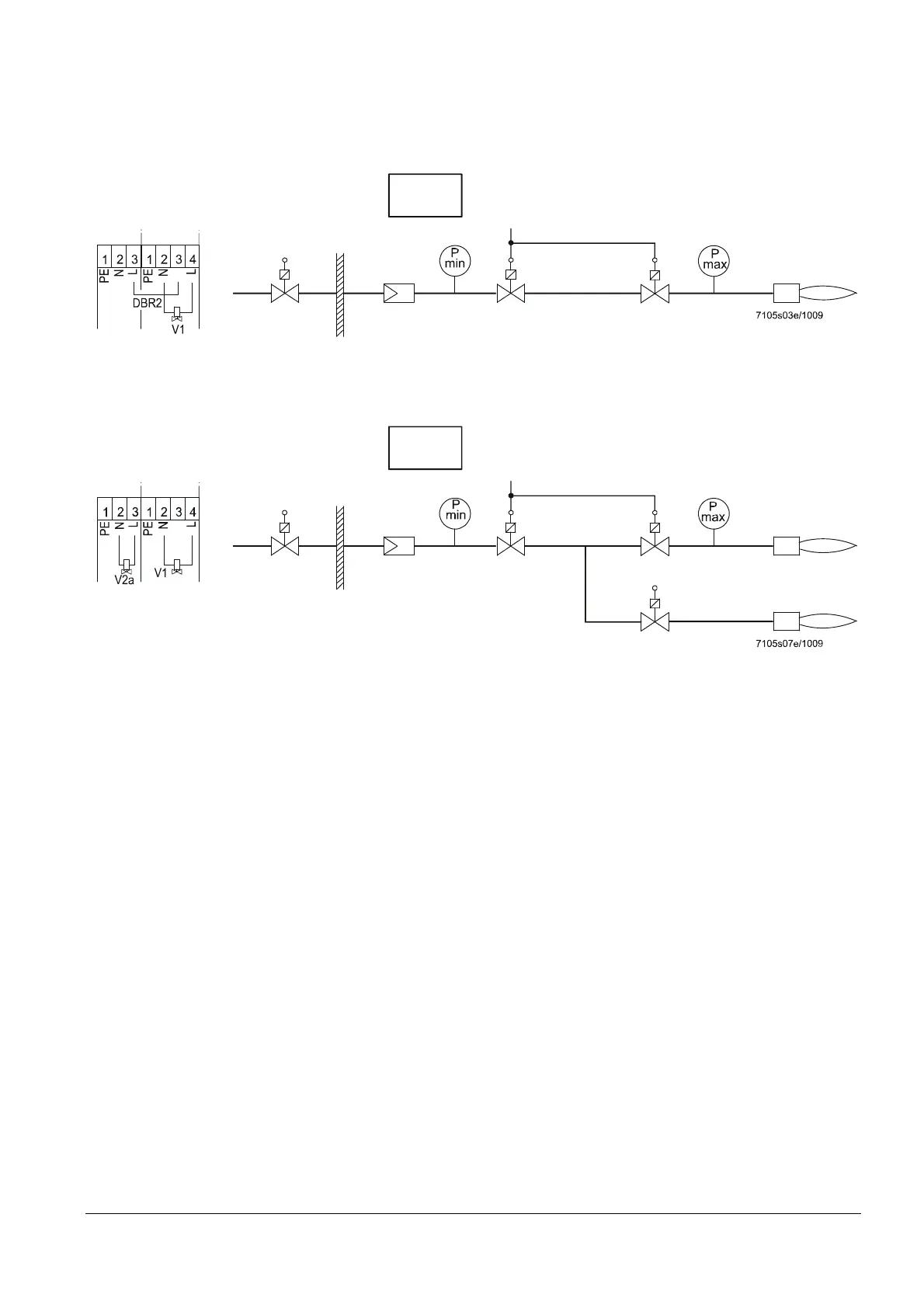

Figure 39: Connection diagram fuel train gas direct ignition (G), 1-stage
15.2.2 Gas direct ignition (G), 2-stage
SV
V1
Program
G
Gas direct 2-stage
X7-01 X7-04
LME73.000...
V2a
Figure 40: Connection diagram fuel train gas direct ignition (G), 2-stage
