6. Disconnect the intrinsic safety wires from the studs above the PECM.
Display Cable Routing Into SYSCON
Intrinsic-Safety Ground Connection Points
TIB Door Assembly
ESD
Ground
Connection

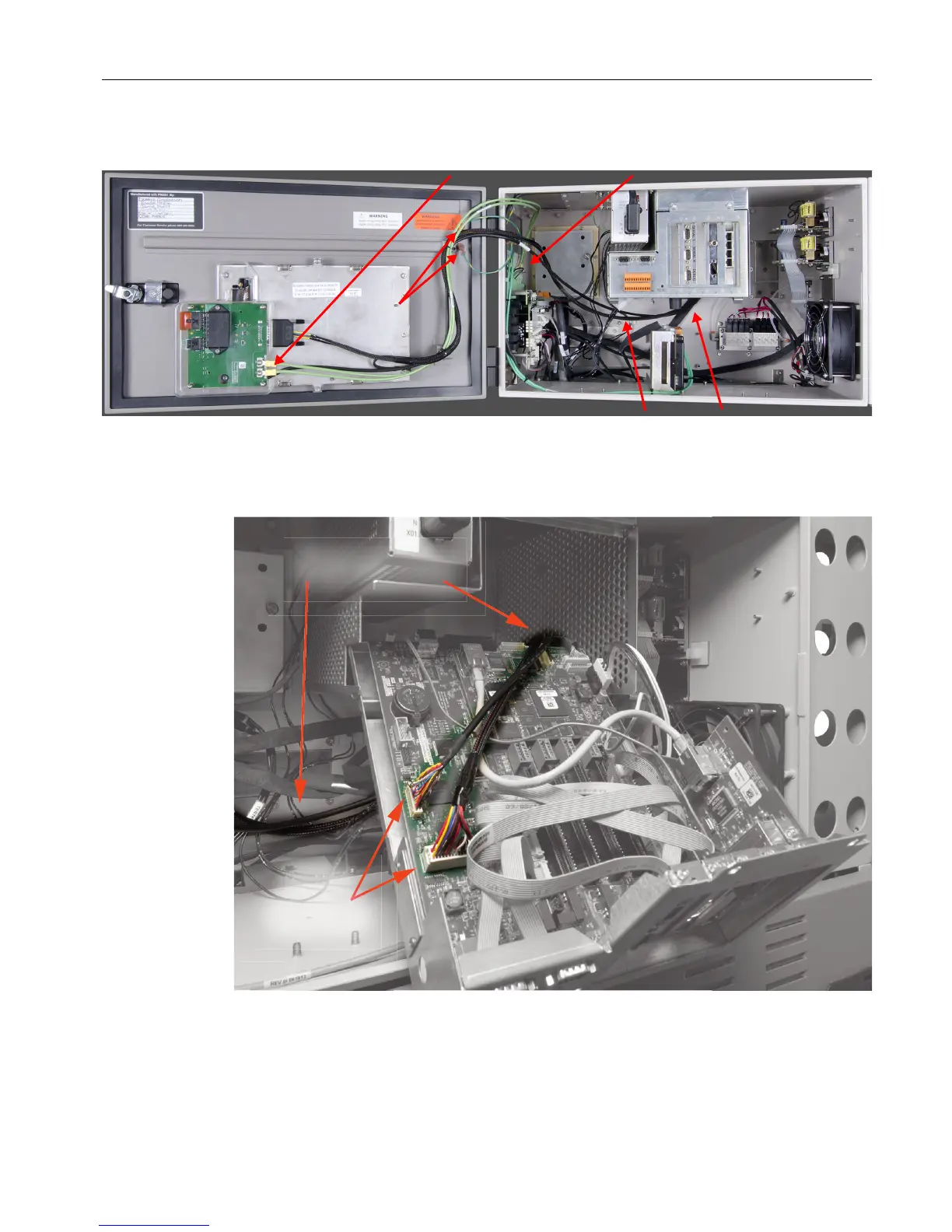

Figure 2-44 TIB Door and Display Cables
7. Pull out the SYSCON2.1 drawer and disconnect the display cables from the SIB3 as shown
below. The cables can then be pulled out through the rear of the cage.
Display Cable Routing
Display
Cable
Connections
Figure 2-45 Display Cable Connectors In SYSCON2.1
Electronic Compartment Component Descriptions and Maintenance Procedures
2.10 Color Touchscreen
Maxum II Reference Manual
Manual, 7/2017, 2000596-001 87
