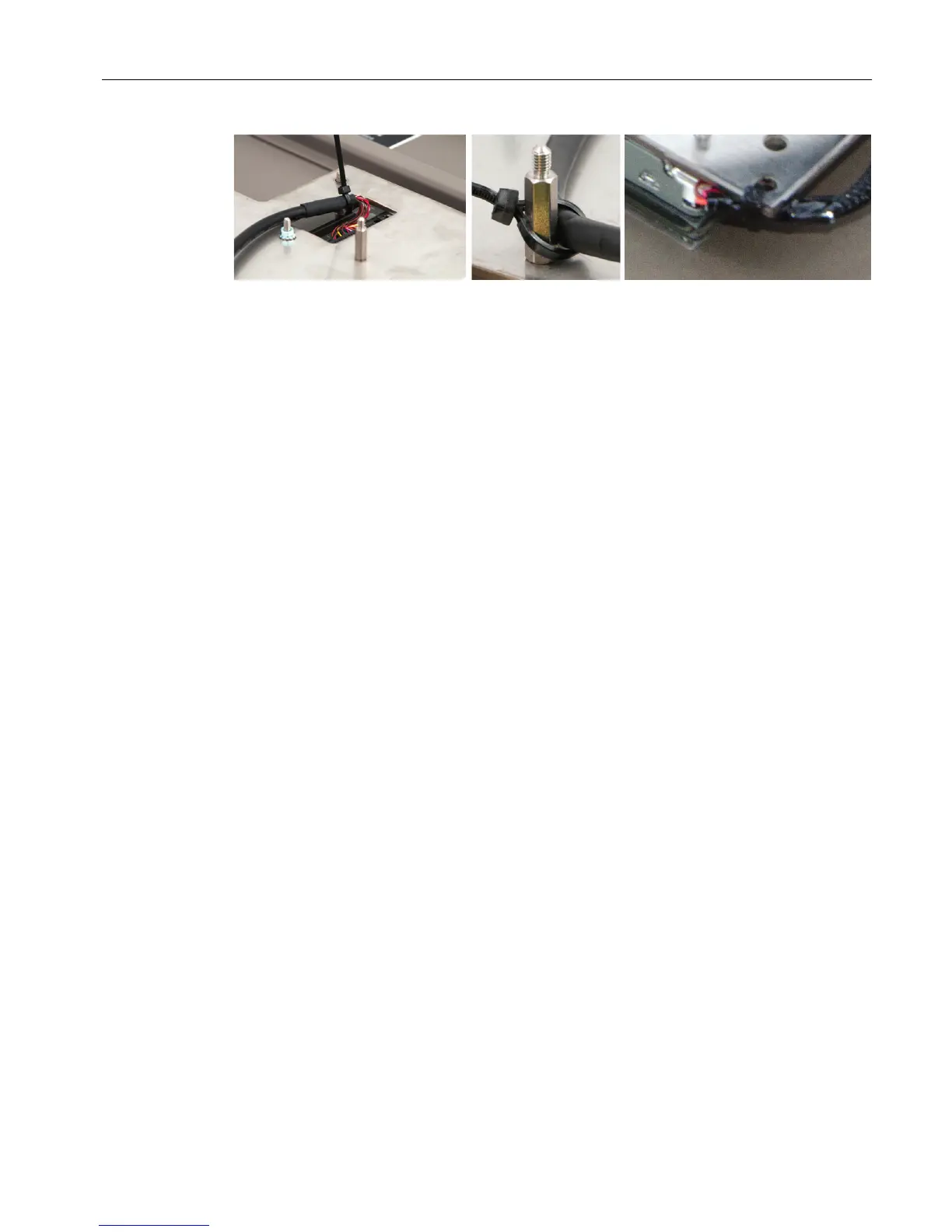

Install wire tie for the LCD connector
through hole adjacent to the cutout.
Install wire tie on the lower
TIB standoff near the
intrinsic safety ground lugs.
Install wire tie for backlight connector
through small hole at the corner of the
panel plate.
Figure 2-49 Wire Tie Installation Detail
Electronic Compartment Component Descriptions and Maintenance Procedures
2.10 Color Touchscreen
Maxum II Reference Manual
Manual, 7/2017, 2000596-001 91
