11.Disconnect the two cables from the display panel to the TIB
12.Unscrew the four standoffs and remove the TIB. (C in exploded view)
Keep touch screen surfaces clean and free of any dust and dirt because small particles
could scratch the touch screen.)
13.Cut the three wire ties securing the cable assemblies to the display assembly. (In small slot
on panel steel slab adjacent to cutout for LCD connector, small hole near corner of slab for
backlight connector, and TIB lower standoff) (D in exploded view)

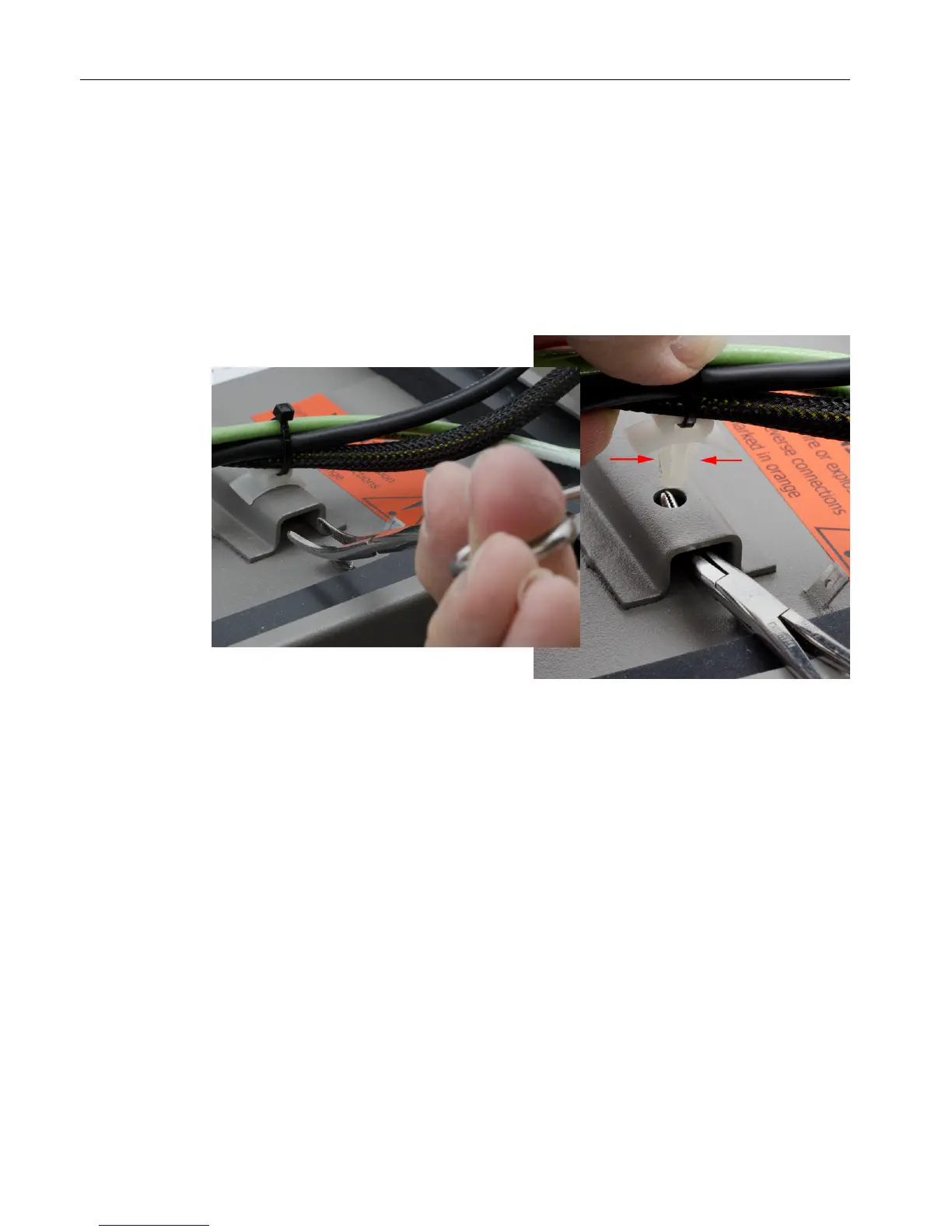

14.Unplug the two wire-tie anchors by compressing the nylon anchor as shown below. (The
cable assembly and anchors may be left in place if desired.)
Figure 2-48 Removing Wire-Tie Anchors
15.Remove the 6 nuts (E in exploded view) and remove display assembly.
Assembly Considerations
Reassembly of the TIB door is generally the reverse order of the disassembly steps given
above.
Display Panel
The replacement display panel has a protective plastic sheet on the glass surface. Remove
this prior to mounting on the door.
When replacing the mounting nuts, use between 3 and 5 inch-pounds of torque. Do not
overtighten.
Wire Ties
Three wire ties are required on the display steel slab. See the exploded view above and the
illustration below for installation locations.
When installing the wire tie for the LCD connector, orient the head flat to keep it clear of the
protective cover when it is reinstalled.
Electronic Compartment Component Descriptions and Maintenance Procedures
2.10 Color Touchscreen
Maxum II Reference Manual
90 Manual, 7/2017, 2000596-001
