Issue 04/04 6 Commissioning
MICROMASTER 420
Compact Operating Manual
13
6 Commissioning

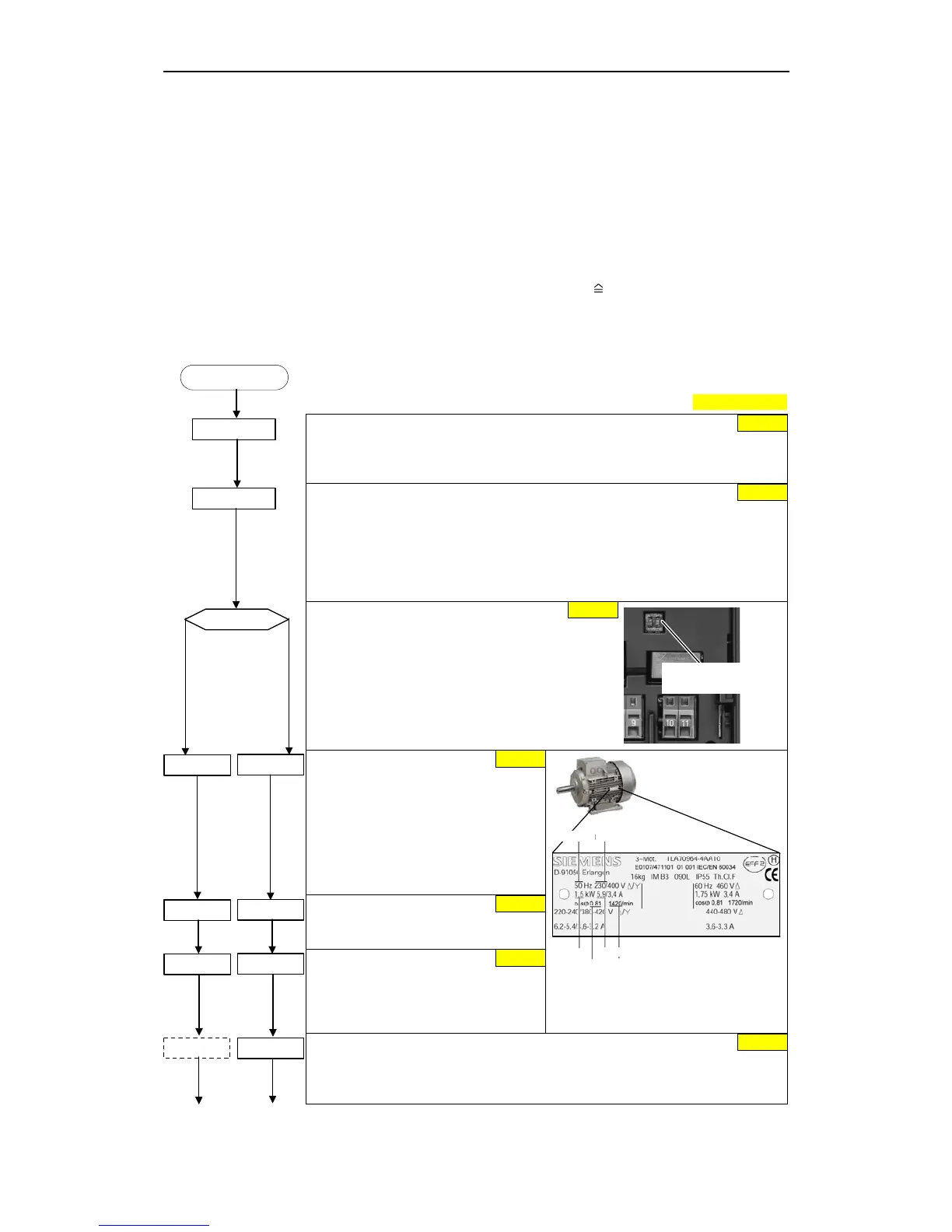

6.1 Quick commissioning
The frequency inverter is adapted to the motor using the quick commissioning
function and important technological parameters are set. The quick commissioning
shouldn't be carried-out if the rated motor data saved in the frequency inverter
(4-pole 1LA Siemens motor, star circuit configuration
frequency inverter (FU)-
specific) match the rating plate data.
Parameters, designated with a * offer more setting possibilities than are actually
listed here. Refer to the parameter list for additional setting possibilities.
START
Factory setting
P0003 = 2
User access level *
1 Standard: Allows access into most frequently used parameters
2 Extended: Allows extended access e.g. to inverter I/O functions
3 Expert (For expert use only)
P0010 = 1
Commissioning parameter *
0 Ready
1 Quick commissioning
30 Factory setting
NOTE
P0010 should be set to 1 in order to parameterize the data of the motor rating
plate.
P0100 =...
P0100 = 1, 2
P0100 = 0
Europe/ North America
(enters the line supply frequency)
0 Europe [kW],
frequency default 50 Hz
1 North America [hp], frequency default
60 Hz
2 North America [kW], frequency default
60 Hz
NOTE
For P0100 = 0 or 1, the setting of switch DIP2(2)
determines the value of P0100 (refer to the
parameter list).
50/60 Hz DIP switch
for frequency setting
60 Hz
50 Hz
P0304 =...
P0304 =...
Rated motor voltage
(Nominal motor voltage [V] from rating
plate)
The rated motor voltage on the rating
plate must be checked, regarding the
star/delta circuit configuration to ensure
that it matches with the circuit
connection configured at the motor
terminal board
P0305 =...
P0305 =...
Rated motor current
(Nominal motor current [A] from rating
plate)
P0307 =...
P0307 =...
Rated motor power
(Nominal motor power [kW/hp] from
rating plate)
If P0100 = 0 or 2, value will be in kW. If
P0100 = 1, value will be in in hp.
P0304
P0305
P0307
P0308 P0311
P0310
P0308 =...P0308 =...
Rated motor cosPhi
(Nominal motor power factor (cos ϕ) from rating plate)
If the setting is 0, the value is automatically calculated
P0100 = 1,2: P0308 no significance, no entry required.
0
1
0
FU-spec.
FU-spec.
FU-spec.
FU-spec.
