International English 3. COMMISSIONING
34 MICROMASTER 420 Operating Instructions
6SE6400-5AA00-0BP0

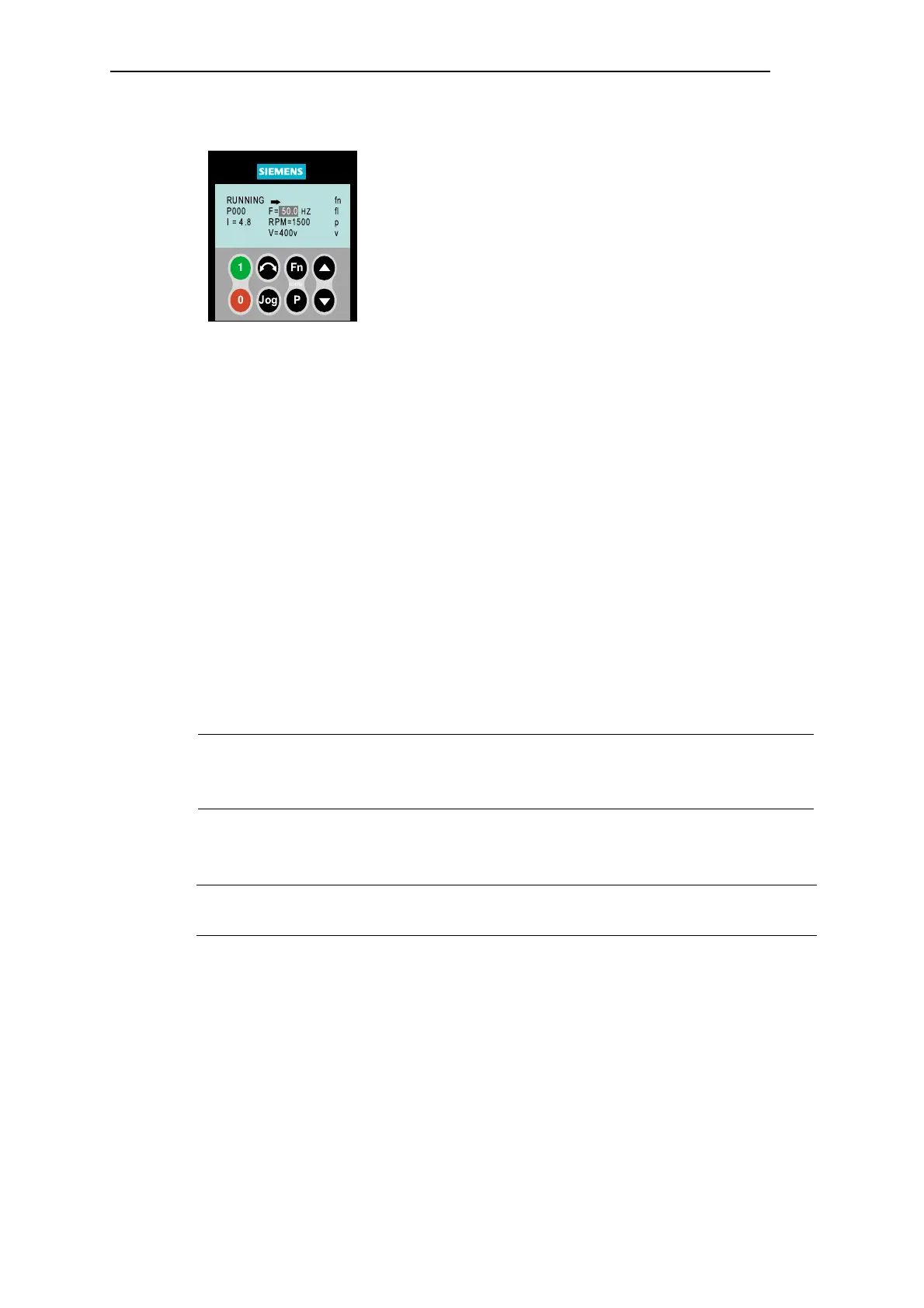

3.1.4 Commissioning with the Advanced Operator Panel (AOP)
The Advanced Operator Panel (AOP) is available as an option.
Its advanced features include the following:
 Multilingual clear text display
 Upload/download of multiple parameter sets
 Programmable via PC
 Multidrop capability to drive up to 30 MICROMASTER 4’s
Please refer to the AOP Manual for details or contact your
local Siemens sales office for assistance.
3.2 General operation
For a full description of standard and extended parameters, please refer to Section 6.
3.2.1 General
1. The inverter does not have a main power switch and is live when the mains supply is
connected. It waits, with the output disabled, until the RUN button is pressed or for
the presence of a digital ON signal at terminal 5 (rotate right).
2. If a BOP or an AOP is fitted and the output frequency is selected to be displayed
(P0005 = 21) the corresponding setpoint is displayed approximately every 1.0
seconds while the inverter is stopped.
3. The inverter is programmed at the factory for standard applications on Siemens four-
pole standard motors that have the same power rating as the inverters. When using
other motors it is necessary to enter the specifications from the motor's rating plate.
See figure 3-5 for details on how to read motor data.
Notes
♦ Changing motor parameters is not possible unless P0010 = 1.
♦ You must set P0010 back to 0 in order to initiate run.
3.2.2 Basic operation with SDP
Prerequisites
 The terminals are connected like shown in Figure 3-2
♦ Start and stop the motor via switch between terminals 5 and 8
♦ Reverse the motor via switch between terminals 6 and 8
♦ Control the motor speed by the potentiometer, connected to the terminals 1 to 4
RUNNING
P000
I = 4.8
fn
fl
p
v
F= 50.0
HZ
RPM=1500
V=400v
Jog
0
1
P
Fn
menu
