Siemens MOBILETT Plus HP Installation Instructions

MOBILETT Plus/ -E/ -HP SPR8-220.031.04 Page 10 of 30 Siemens AG
Rev. 04 09.03 CS PS 24 Medical Solutions
2 - 10 Installation
11. Disconnect the yellow cable from the terminal at pos. 1 / Fig. 11.
12. Disconnect the white cable from the terminal at pos. 2 / Fig. 11.
13. Disconnect the orange cable from the terminal at pos. 3 / Fig. 11.
14. Disconnect the two white cables from the terminal at pos. 4 / Fig. 11 (nut
dimension 5.5 mm).
15. Disconnect the brown cable from the terminal at pos. 5 / Fig. 11.
MOB00458

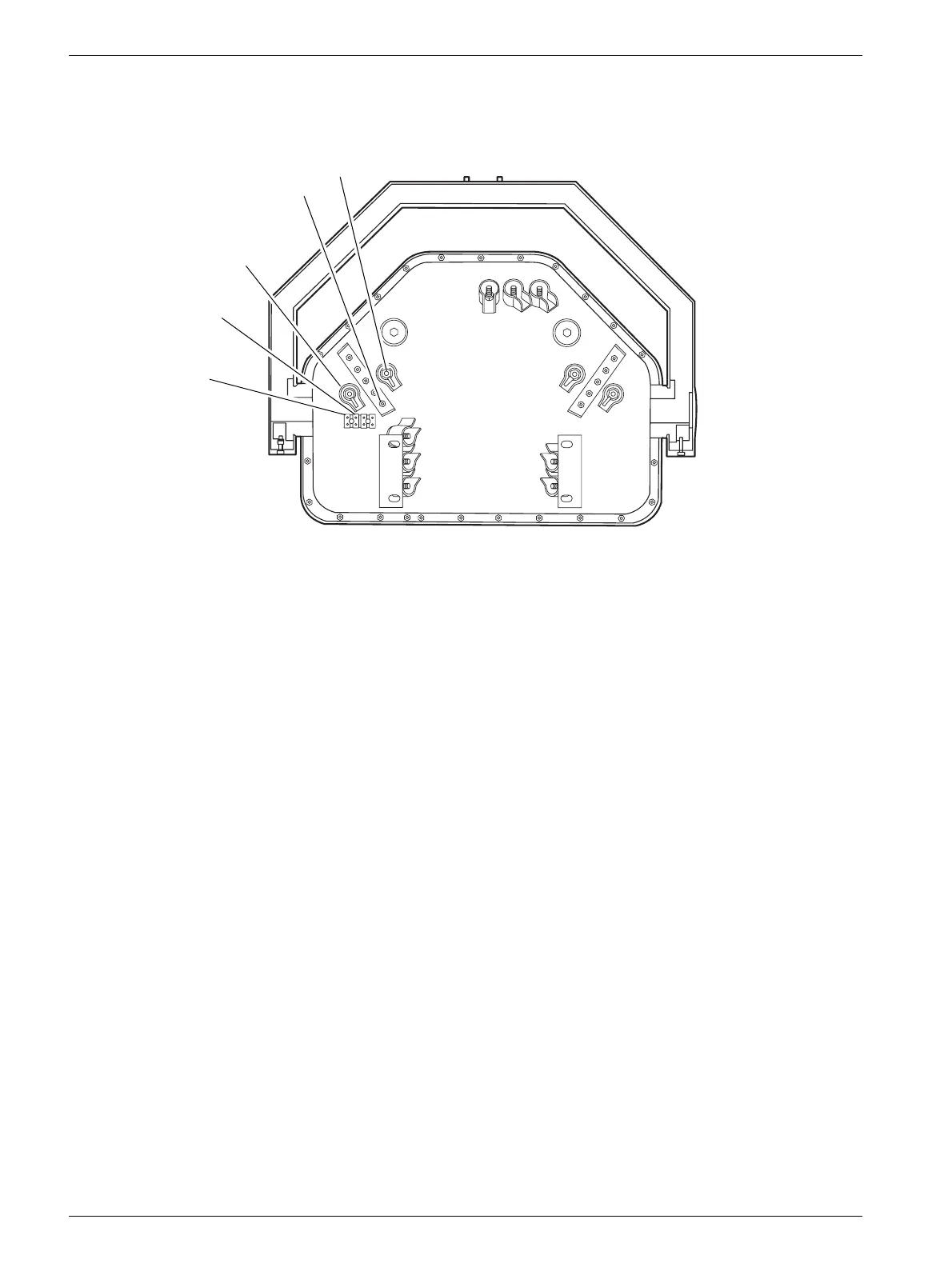

Fig. 11 Inside the single tank
3
5
1
2
4
