6. Thread the ends with pin plugs K24 and K25 through the upper hole (pos. 2 / Fig.
33) and through the lower hole (pos. 3 / Fig. 33).
7. Fasten the cable with cable ties (2.5x100mm) (see Fig. 34).
8. Fasten the pin plugs K24 and K25 to the new power supply.
MOB00523

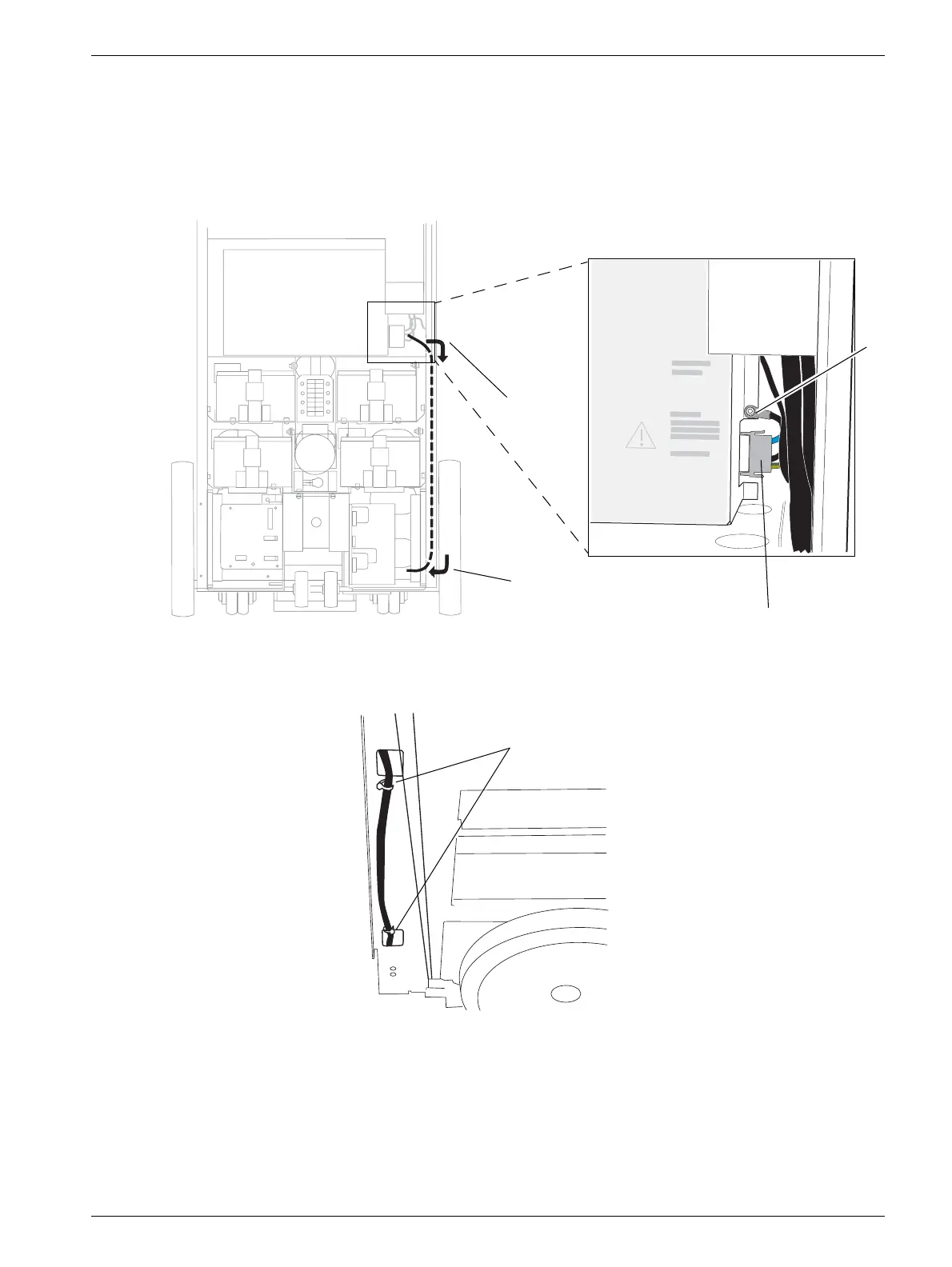

Fig. 33 Threading cable to new power supply
2
1
3
D8
4
MOB00530
Fig. 34 Fasten cable ties
