Siemens RWF40 User Manual

8
TECHNICAL DATA
Power controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RWF40.000.A97 (LOW version) - RWF40.002.B97 (HIGH version)
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110...240 V AC + / - 10 %
Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48...63 Hz
Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Max 10 VA
Contact capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .AC 24...240 V, 2A at p.f. (cos
ϕ) >0,6
In conformity with EEC directives. . . . . . . . . . . . . . . . . . . . . . . . .To NAMUR recommendation NE 21, EN 50 081 part 1, EN 50 082 part 2,
89/366/EEC
Protection rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Front: IP 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Case: IP 20
Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .– 20...+ 50°
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .– 40...+ 70°
Max. relative humidity (annual average) . . . . . . . . . . . . . . . . . . .75 % (avoid condensation)
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .At the back, via pug-in screw terminal strips, angled at 45°
Case. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Mounting depth 130 mm
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .approx. 0,76 kg
The RWF40 power controller conforms to EN 60730 standards.

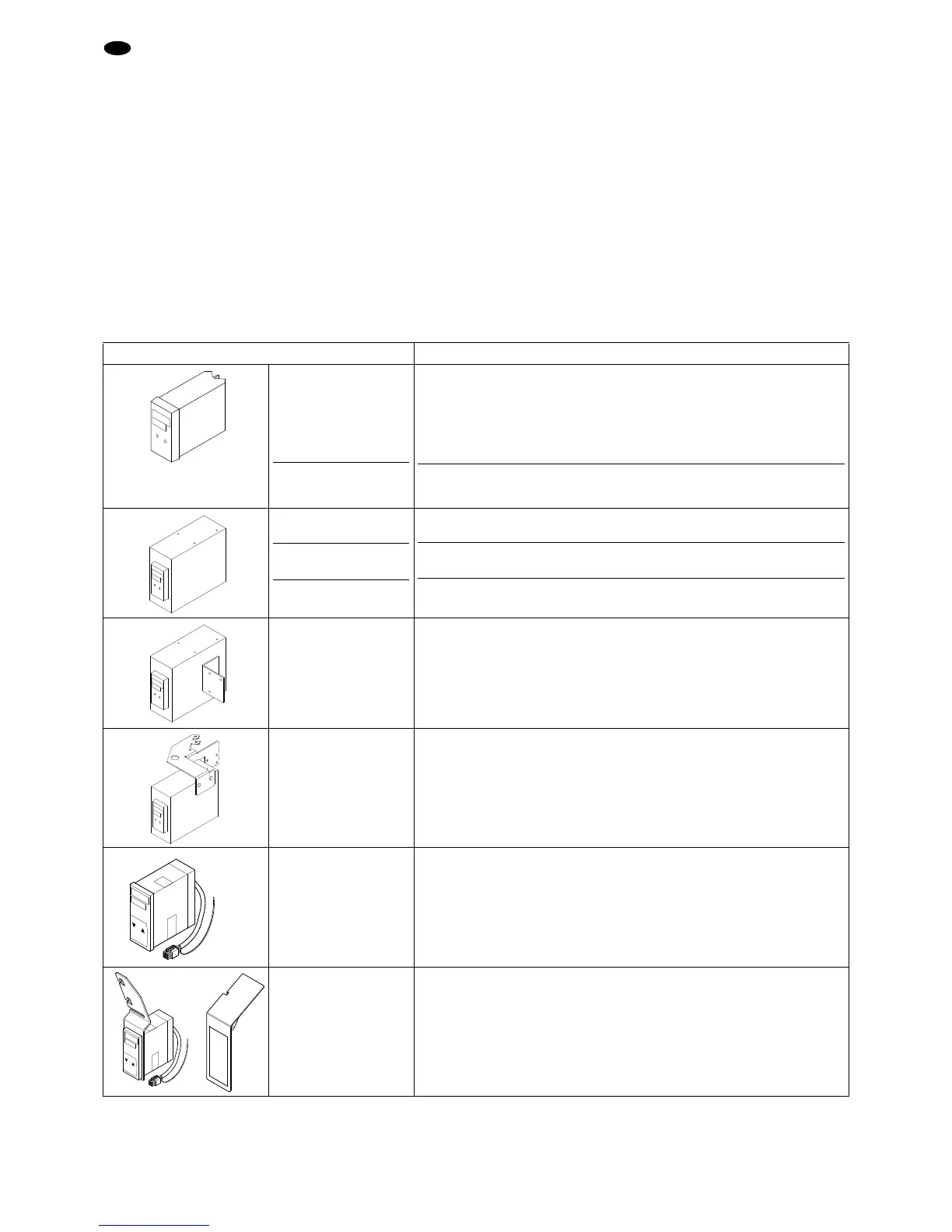

It is available in 6 models:
Model Application
3010212 (LOW)
3010356 (LOW)
3010357 (HIGH)
RL ... /M burners - modulating version
RLS ... /M burners - modulating version
RS ... /M burners - modulating version
FG ... M burners - modulating version
FL ... M burners - modulating version
RS 300 - 400
3010210 (LOW)
3010220 (LOW)
3001074 (LOW)
GAS 3 - 4 - 5 - 6 - 7 P/M
GAS 3 - 4 - 5 - 6 - 7 P/M (USA)
GS 10 - 20 /M
3010211 (LOW)
GAS 8 - 9 - 10 P/M
P 140 - 200 - 300 - 450 P/G
P 140 - 200 - 300 - 450 P/N
G/M 1400 - 2000 - 3000 - 4500
N/M 1400 - 2000 - 3000 - 4500
3001078 (LOW)
BS ... /M burners
3010414 (LOW)
RS 250/M
RS 68 - 120 - 160/E BLU
RS 70 - 100 - 130 - 190 - 250/E
3010417 (LOW)
RS 34 - 44/M MZ
RS 25 - 35/M BLU
RS 34 - 44/E MZ
RS 25 - 35/E BLU
RS 45/E BLU - RS 64/E MZ
GB
D1903
D1901
D1902
D7247
D7480
D7481
D8331
+
