3 Installation
3.1 Installation site and climatic conditions
- The installation site should be free from vibrations, dust and corrosive media
- The controller should be installed away from sources of electromagnetic fields, such
as variable speed drives or high-voltage ignition transformers
Relative humidity: 95% (noncondensing)
Ambient temperature: -20...50 °C
Storage temperature: -40...70 °C
3.2 Dimensions
51
99
91,5
44,5
48
57,1
110
11,8
96
45
+0.6
92
+0.8
(2)
(1)
7867m01/0612

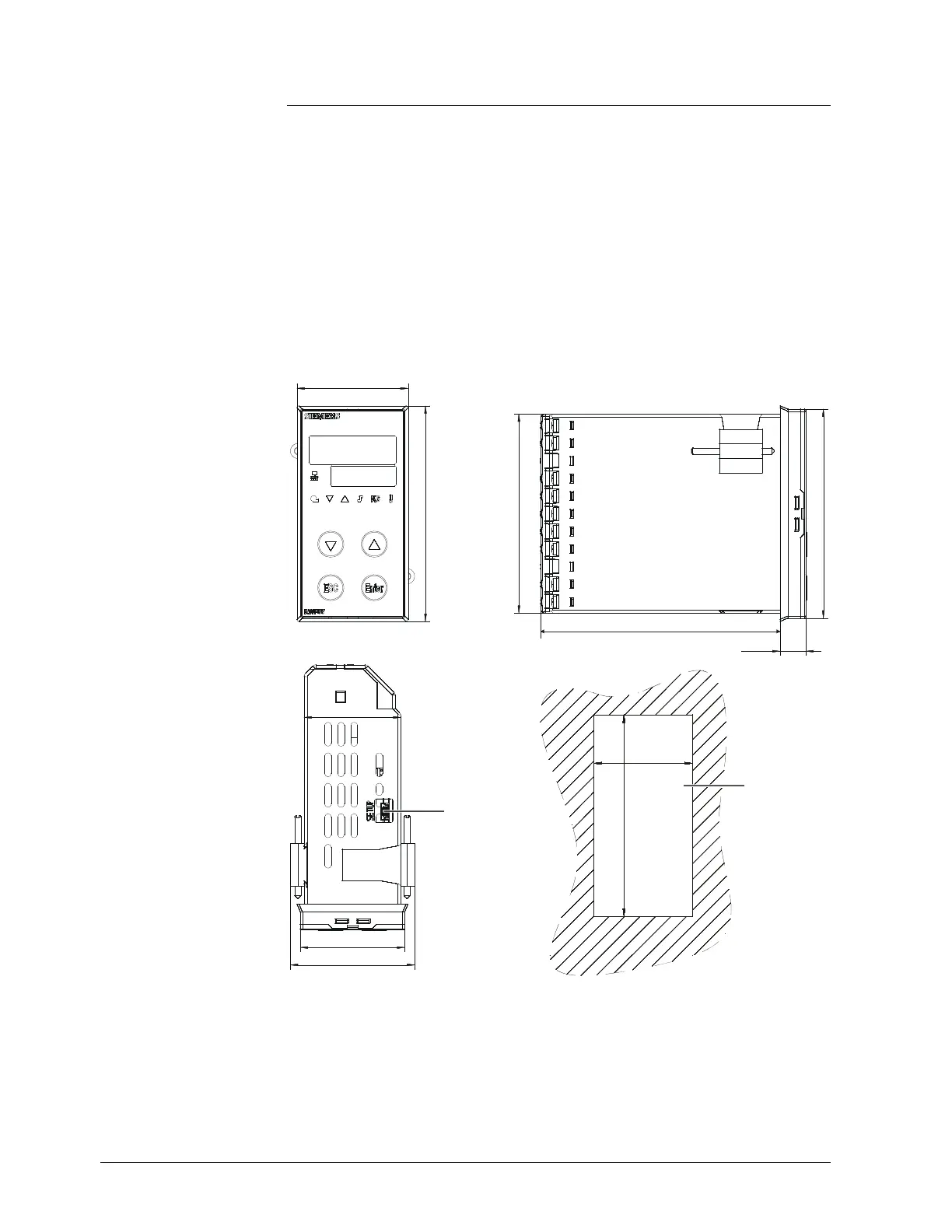

Figure 2: Dimensions of RWF55
Key
(1) USB interface setup
(2) Panel cutout
