2.1 Network structures
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
18 Configuration Manual, 03/2015, C79000-G8976-C267-08

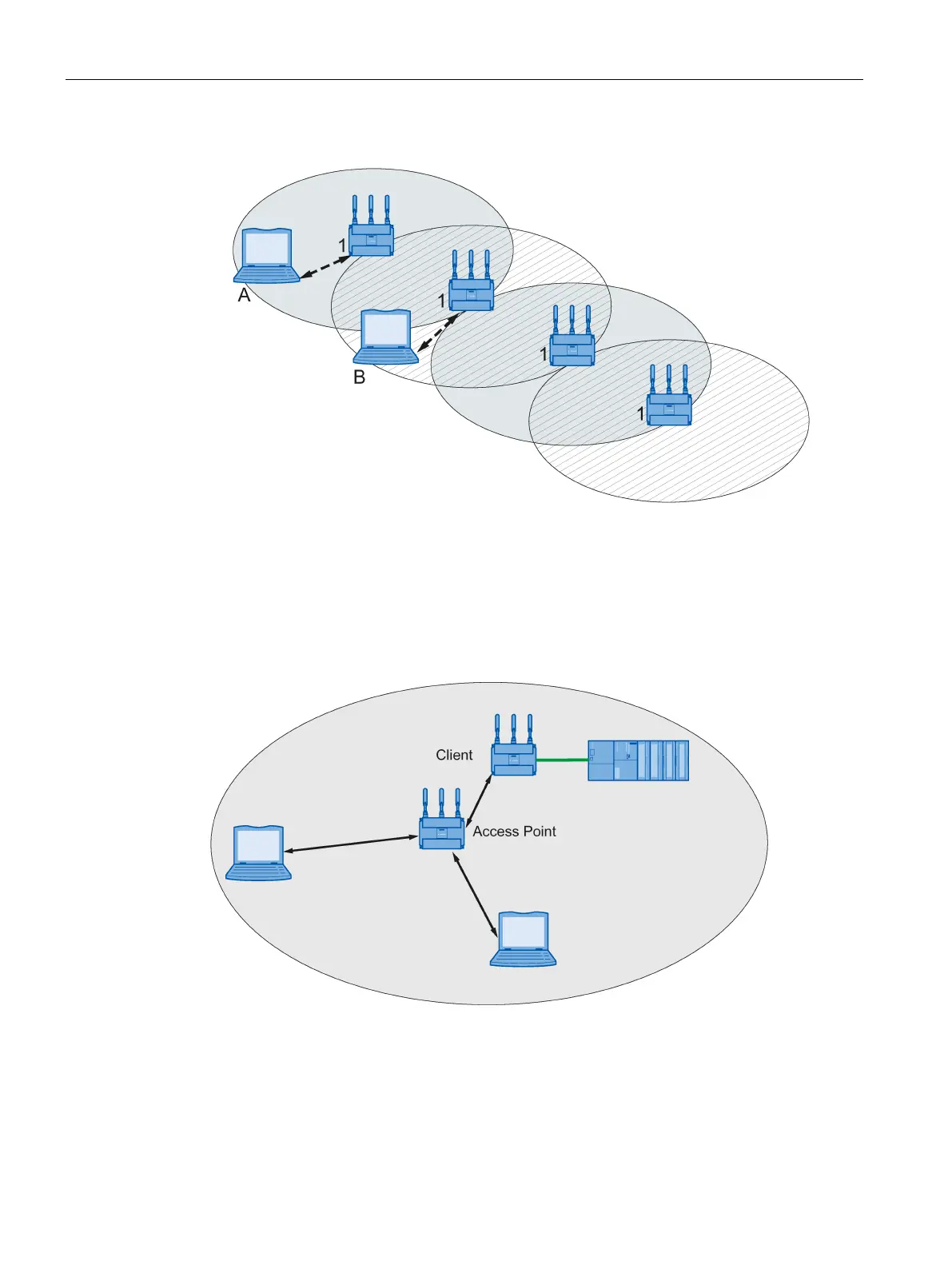

Figure 2-4 Implementation of WDS with four access points
Network access with a client or an access point in client mode
The device can be used to integrate wired Ethernet devices (for example SIMATIC S7 PLC)
in a wireless network.
Figure 2-5 Connecting a SIMATIC S7 PLC to a wireless LAN.
