Siemens SCALANCE W780

Configuring with Web Based Management
5.4 "Information" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
94 Configuration Manual, 03/2015, C79000-G8976-C267-08
5.4.4
ARP Table
Assignment of MAC address and IP address
With the Address Resolution Protocol (ARP), there is a unique assignment of MAC address
to IP address. This assignment is kept by each network node in its own separate ARP table.

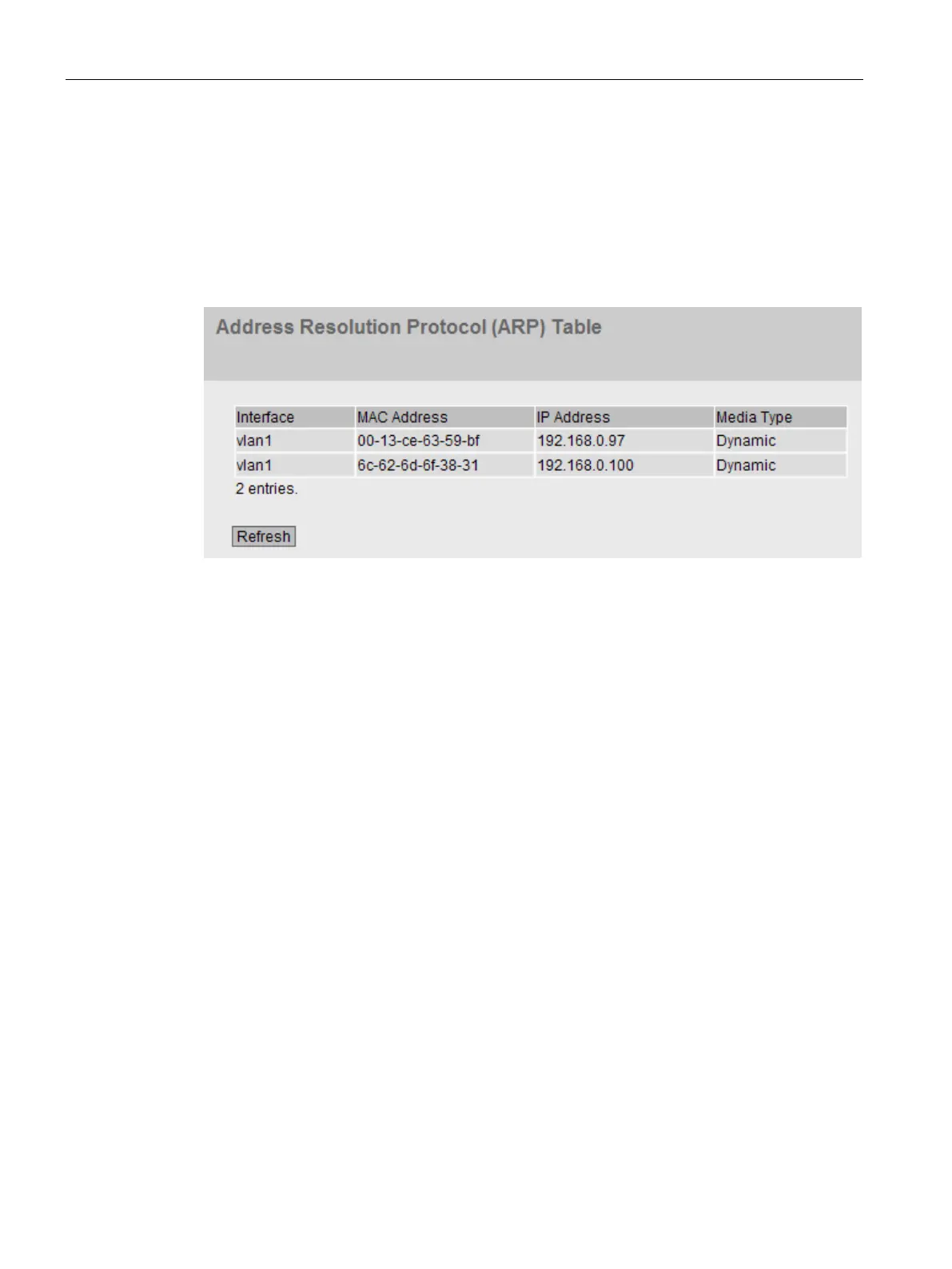

The WBM page shows the ARP table of the device.
Description
The table has the following columns:
●
Interface
Shows the interface via which the row entry was learnt.
●
MAC Address
Shows the MAC address of the target device.
●
IP Address
Shows the IP address of the target device.
●
Media Type
Shows the type of connection.
– Dynamic
The device recognized the address data automatically.
– Static
The addresses were entered as static addresses.
