Siemens SCALANCE X101-1 Commissioning Manual

Network Topologies
3.1 Network Topologies
Star Topology

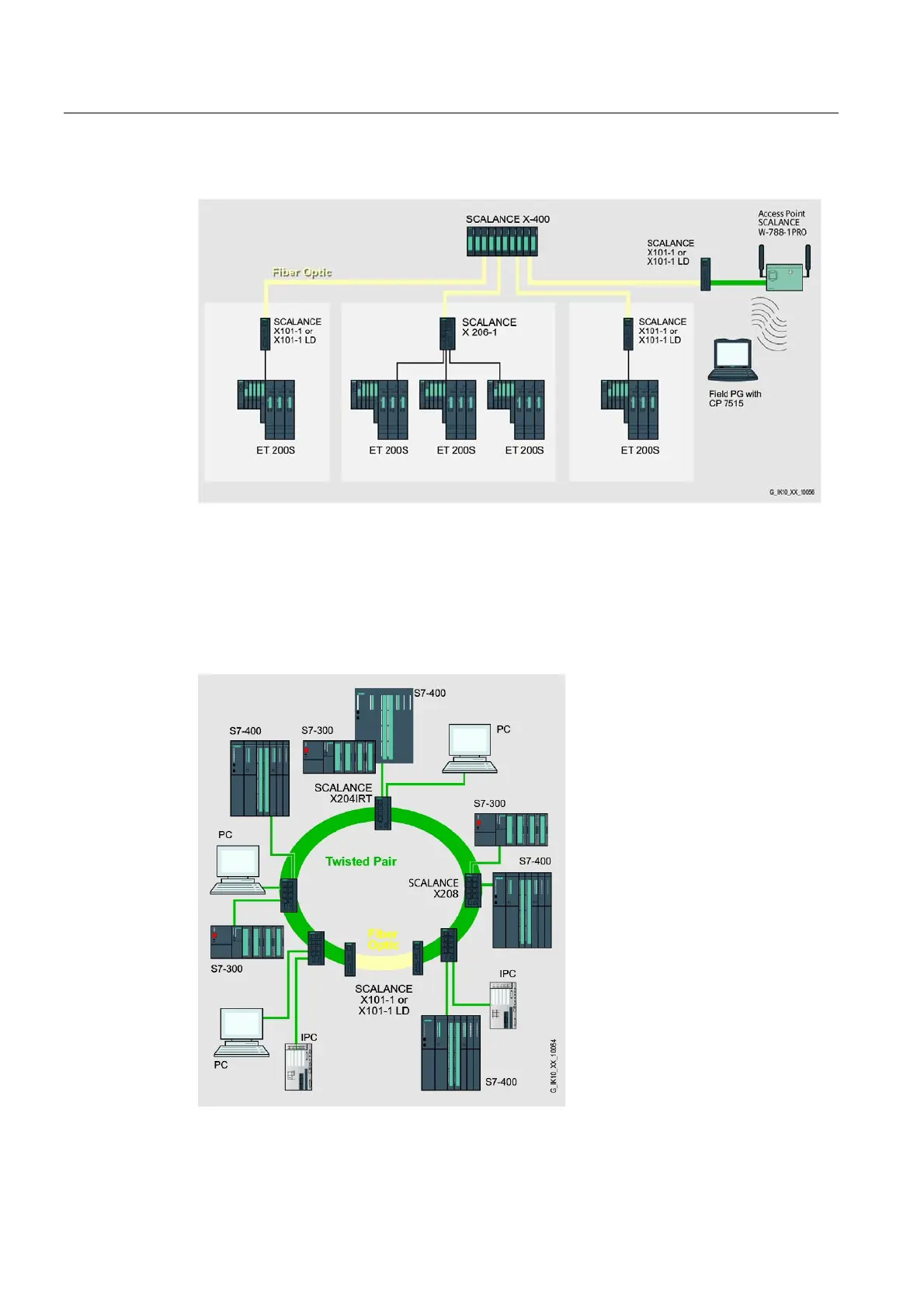

Figure 3-2 Optical Ring, Example with SCALANCE X-400 as Redundancy Manager, X204-2 and a
extension for Optical Lines with SCALANCE X101-1LD Media converter
Ring Topology
See in chapter 4 Product Characteristics, subsection Cascade, of the concerning media
converter.
Figure 3-3 Electrical Ring, Example with SCALANCE X204IRT as Redundancy Manager, X208 and
conversion to a Optical Line with SCALANCE X101-1 or X101-1LD Media converter
Industrial Ethernet Media Converters SCALANCE X-100 Series
3-2 Commissioning Manual, 07/2008, A2B00051521A

Siemens SCALANCE X101-1 Specifications

General

Brand	Siemens
Model	SCALANCE X101-1
Category	Media Converter
Language	English
