Installation and Maintenance
5.3 Assembling the IE FC Standard Cable
5.3 Assembling the IE FC Standard Cable
Assemble the IE FC RJ-45 plug 180 and the IE FC standard cable as follows
For information on the assembly, please refer to the instructions that ship with the IE FC
RJ-45 plug 180.
The robust connectors of the nodes are designed for industry and are PROFINET-compliant.
Due to the locking mechanism on the casing, they provide additional strain and torsion relief.

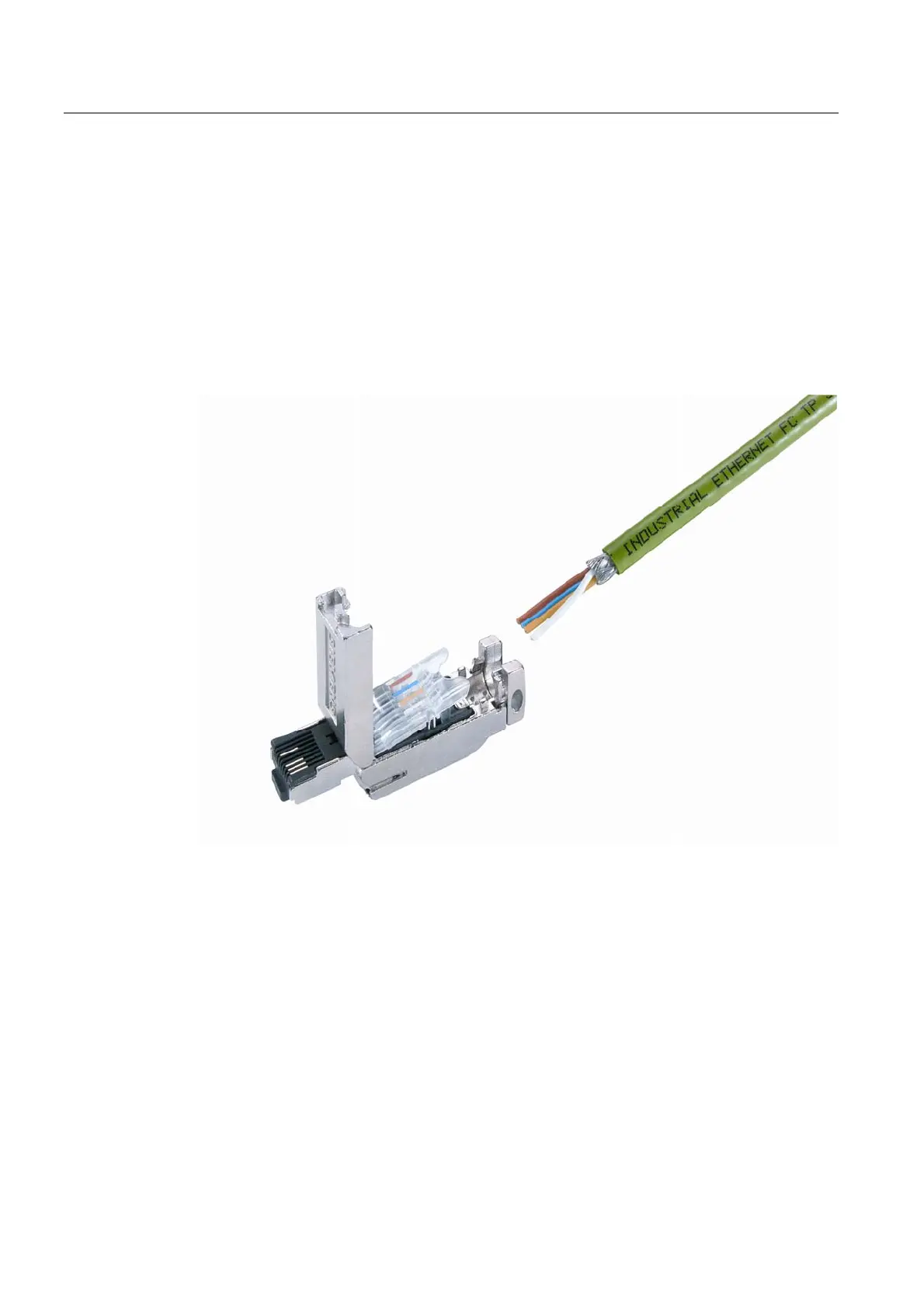

Figure 5-4 IE FC RJ-45 plug 180
Industrial Ethernet Media Converters SCALANCE X-100 Series
5-6 Commissioning Manual, 07/2008, A2B00051521A
