4.3 SCALANCE X101-1FL
4.3.4 SCALANCE X101-1FL TP Port
Connector Pinout
RJ-45 jack

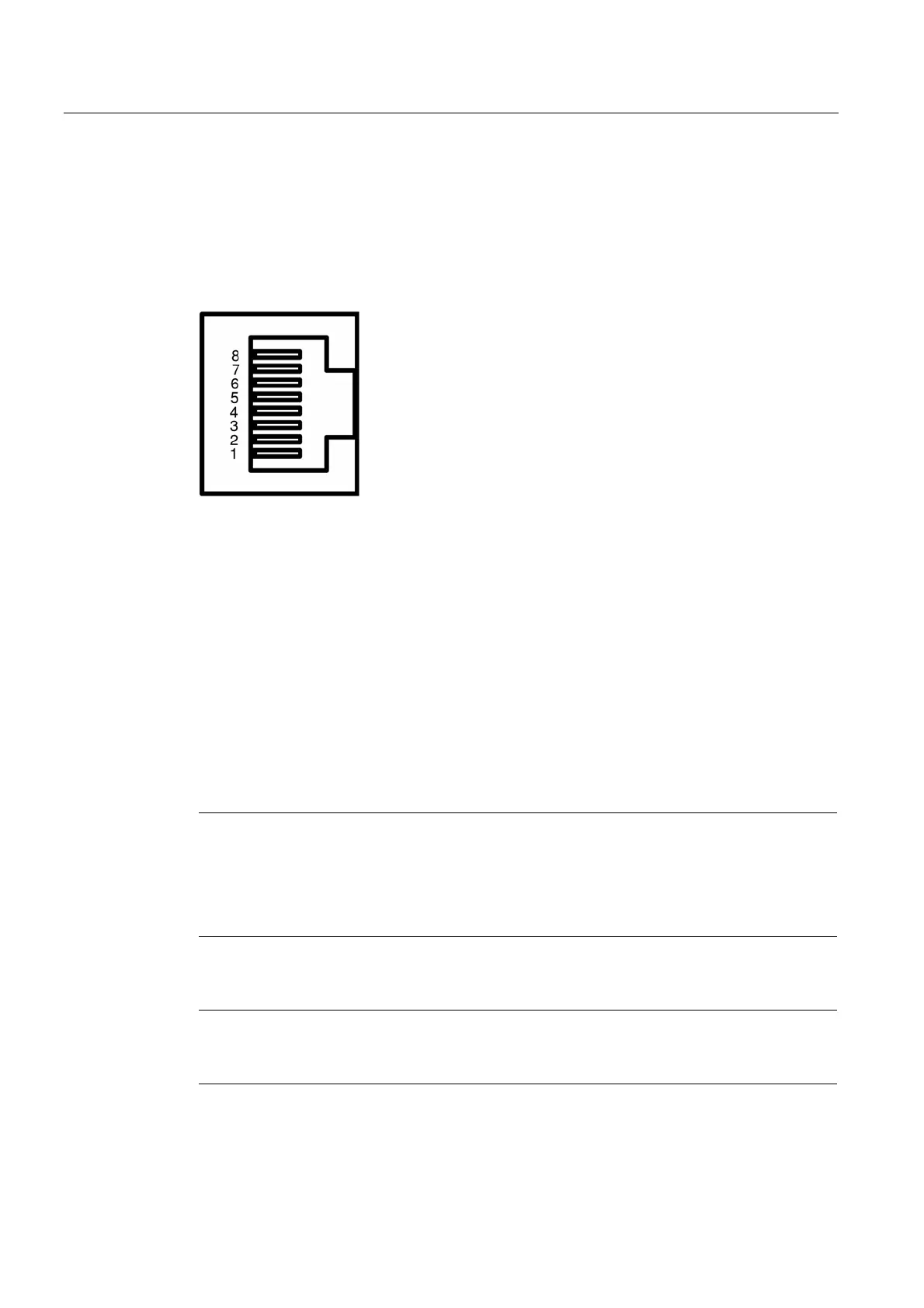

Figure 4-8 RJ-45 connector pinout
Pin number Pinout
Pin 8 NC
Pin 7 NC
Pin 6 TD-
Pin 5 NC
Pin 4 NC
Pin 3 TD+
Pin 2 RD-
Pin 1 RD+
On SCALANCE X101-1FL, the twisted pair port is implemented as RJ-45 jack with MDI-X
assignment (Medium Dependent InterfaceāAutocrossover) of a network component.
Notice
TP cords or TP-XP cords with a maximum length of 10 m can be connected to the RJ-45 TP
port.
Depending on the cable type, a total cable length of up to 100 m is permitted between two
devices with the IE FC cables and IE FC RJ-45 plug 180.
Note
The SCALANCE X101-1FL works with a fixed transmission speed of 10 Mbps in half duplex.
Devices not supporting autonegotiation must be set to 10 Mbps half duplex.
Industrial Ethernet Media Converters SCALANCE X-100 Series
4-16 Commissioning Manual, 07/2008, A2B00051521A
