Network Topologies
3.2 Coupling of Network Segments
3.2 Coupling of Network Segments
The coupling of two ring network topologies using two SCALANCE X101-1 media converters
shown here as an example is only possible indirectly via nodes with redundancy capability
(e.g. SCALANCE X-400). This applies to all media converters of the SCALANCE X-100
series.

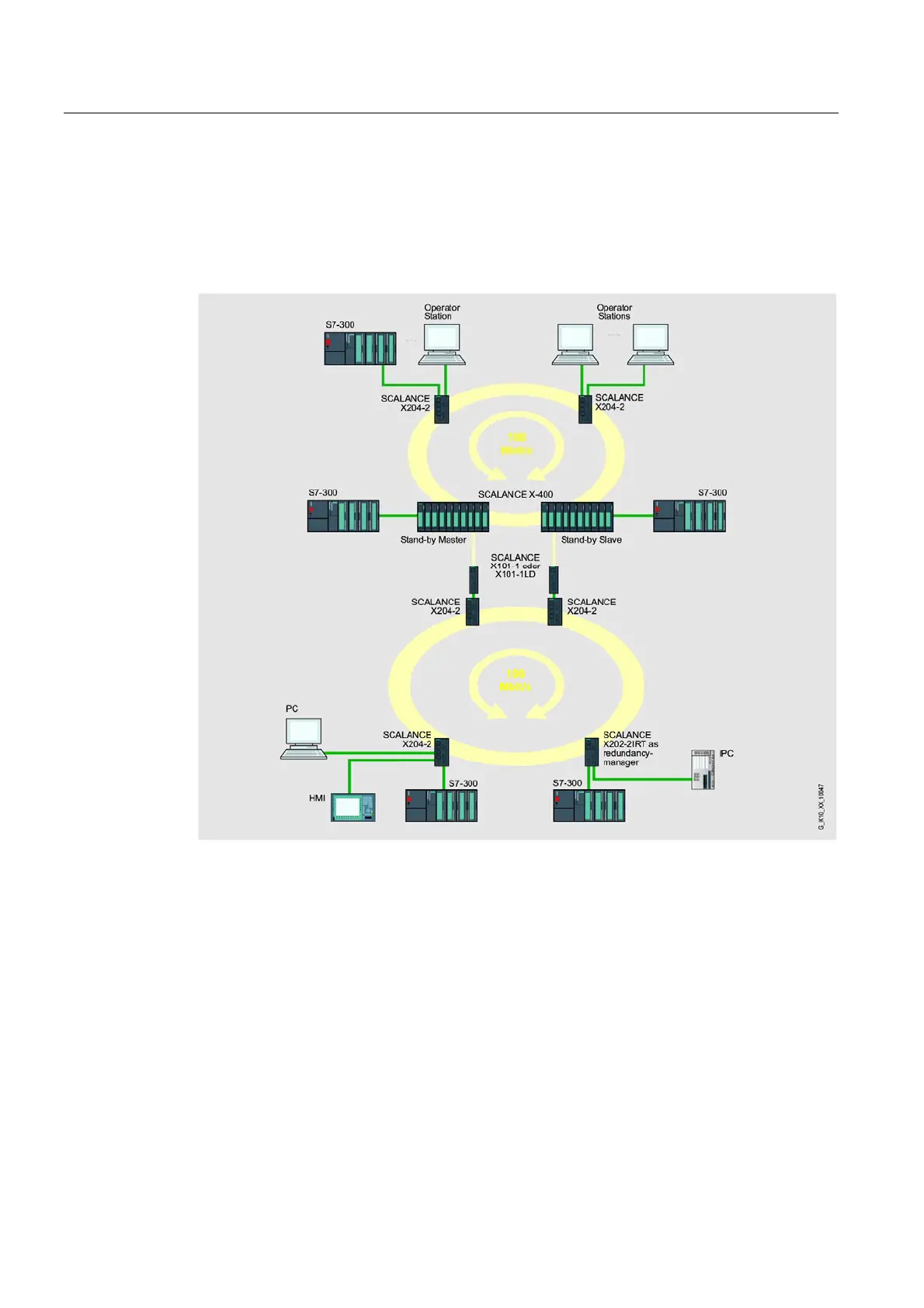

Figure 3-5 Stand-By Coupling of two Redundant Rings via Master / Slave Concept of SCALANCE
X-400. Coupling is realized with SCALANCE X101-1 or X101-1LD Media converter
Industrial Ethernet Media Converters SCALANCE X-100 Series
3-4 Commissioning Manual, 07/2008, A2B00051521A
