Network Topologies
3.1 Network Topologies

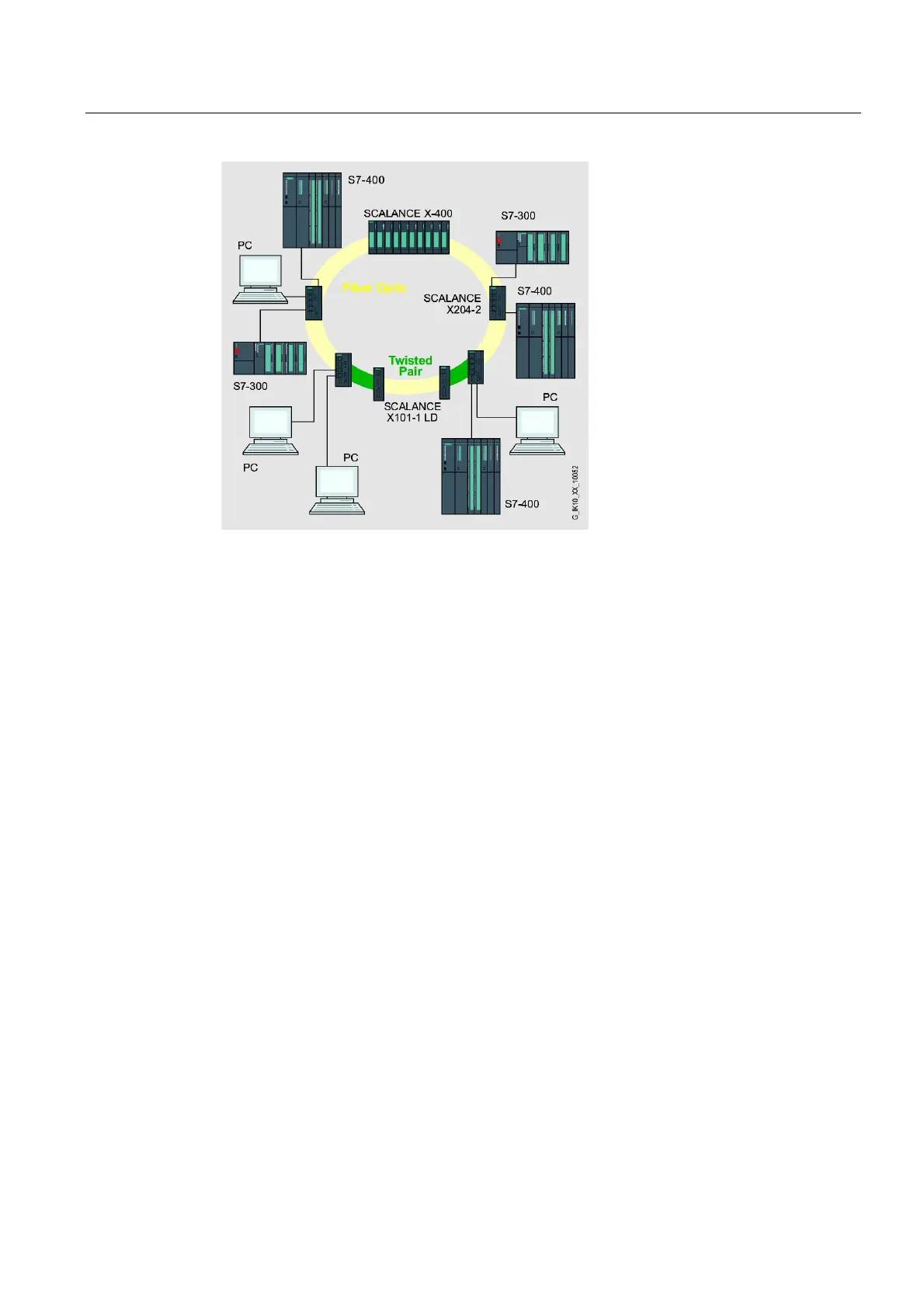

Figure 3-4 Optical Ring, Example with SCALANCE X-400 as Redundancy Manager, X204-2 and a
extension for Optical Lines with SCALANCE X101-1LD Media converter
Industrial Ethernet Media Converters SCALANCE X-100 Series
Commissioning Manual, 07/2008, A2B00051521A
3-3
