Product Characteristics
4.2 SCALANCE X101-1
4.2.3 SCALANCE X101-1 Product Characteristics
Possible Attachments
The SCALANCE X101-1 media converter features an RJ-45 jack and a BFOC port for the
connection of DTEs or other network segments.
Note
The BFOC socket (Bayonet Fiber Optic Connector) corresponds to the ST socket

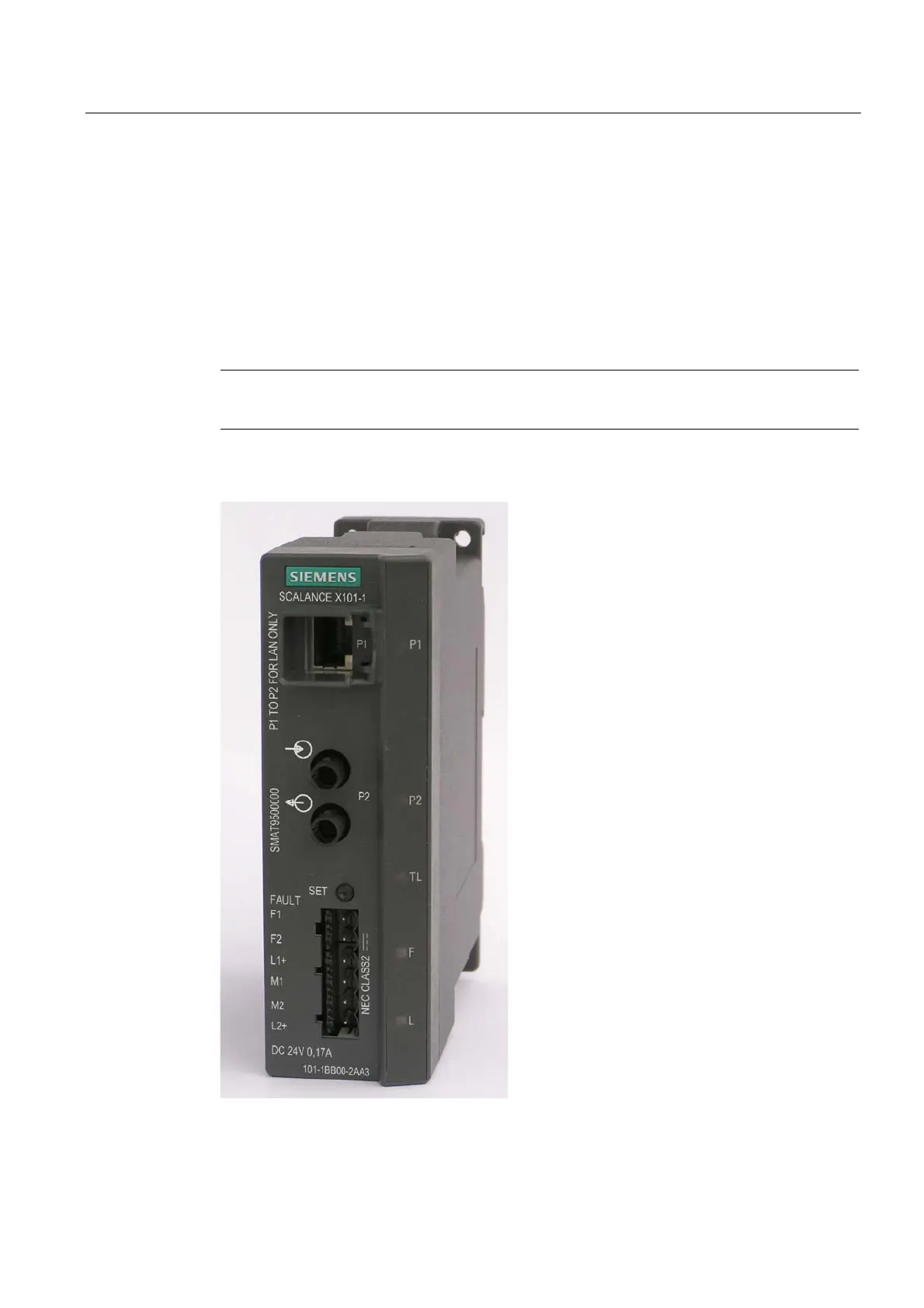

Figure 4-1 SCALANCE X101-1
Industrial Ethernet Media Converters SCALANCE X-100 Series
Commissioning Manual, 07/2008, A2B00051521A
4-3
