Installation and Maintenance
5.1 Installation
Uninstalling
To remove the media converter from the DIN rail:
1. First disconnect the TP cable and the FO cables. Remove the terminal block for the
power supply and the signaling contact.
2. Use a screwdriver to release the lower rail catch of the device and pull the lower part
of the device away from the rail.

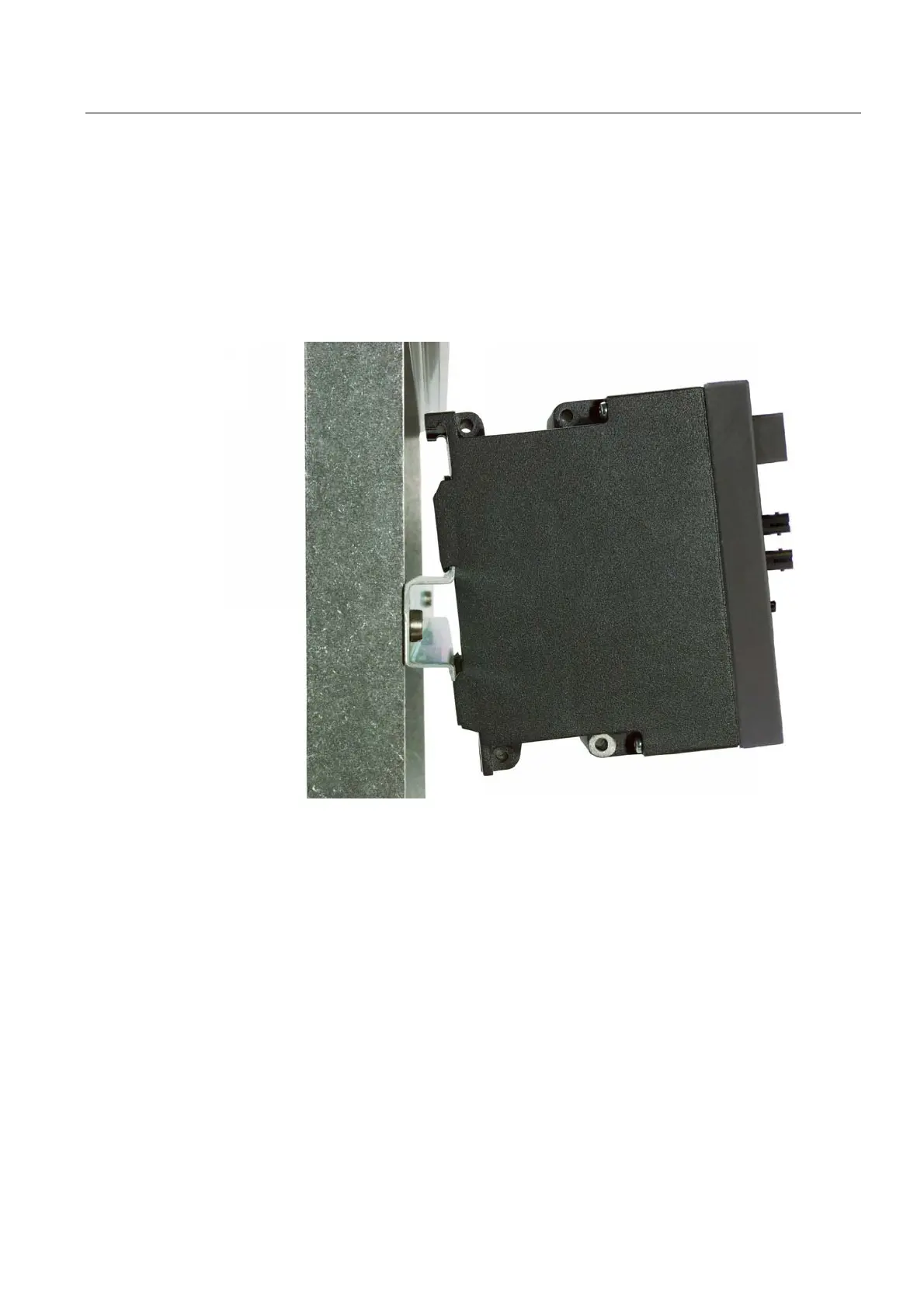

Figure 5-2 Removing from a DIN rail (35 mm)
Industrial Ethernet Media Converters SCALANCE X-100 Series
Commissioning Manual, 07/2008, A2B00051521A
5-3
