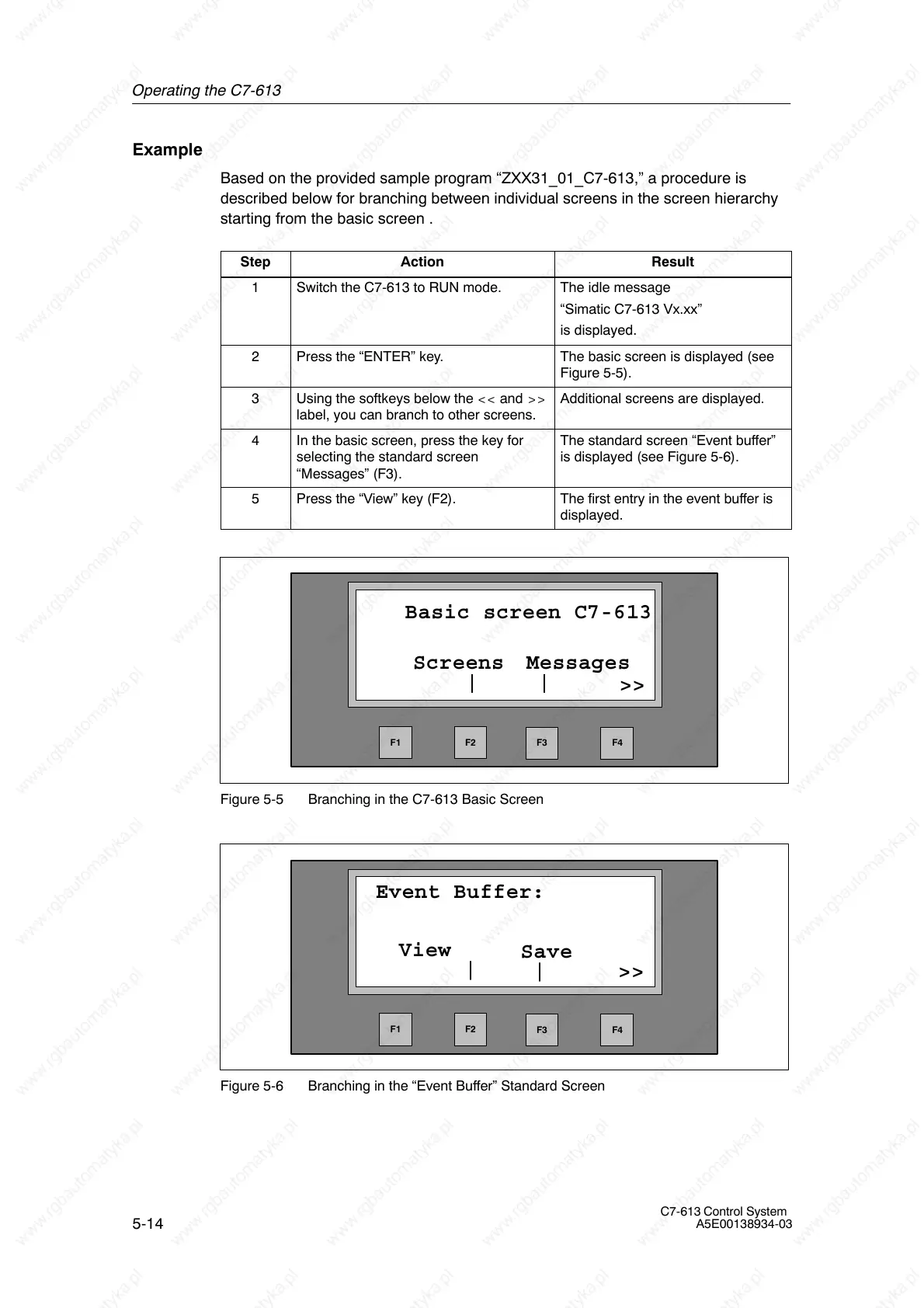

Operating the C7-613
5-14
C7-613 Control System
A5E00138934-03
Example
Based on the provided sample program “ZXX31_01_C7-613,” a procedure is
described below for branching between individual screens in the screen hierarchy
starting from the basic screen .
Step Action Result
1 Switch the C7-613 to RUN mode. The idle message
“Simatic C7-613 Vx.xx”
is displayed.
2 Press the “ENTER” key. The basic screen is displayed (see
Figure 5-5).
3 Using the softkeys below the << and >>
label, you can branch to other screens.
Additional screens are displayed.
4 In the basic screen, press the key for
selecting the standard screen
“Messages” (F3).
The standard screen “Event buffer”
is displayed (see Figure 5-6).
5 Press the “View” key (F2). The first entry in the event buffer is
displayed.
F1 F2
F3 F4
Screens
Basic screen C7-613
Messages
>>
Figure 5-5 Branching in the C7-613 Basic Screen
= Selection of
F1 F2
F3 F4
View
Event Buffer:
Save
>>
Figure 5-6 Branching in the “Event Buffer” Standard Screen
