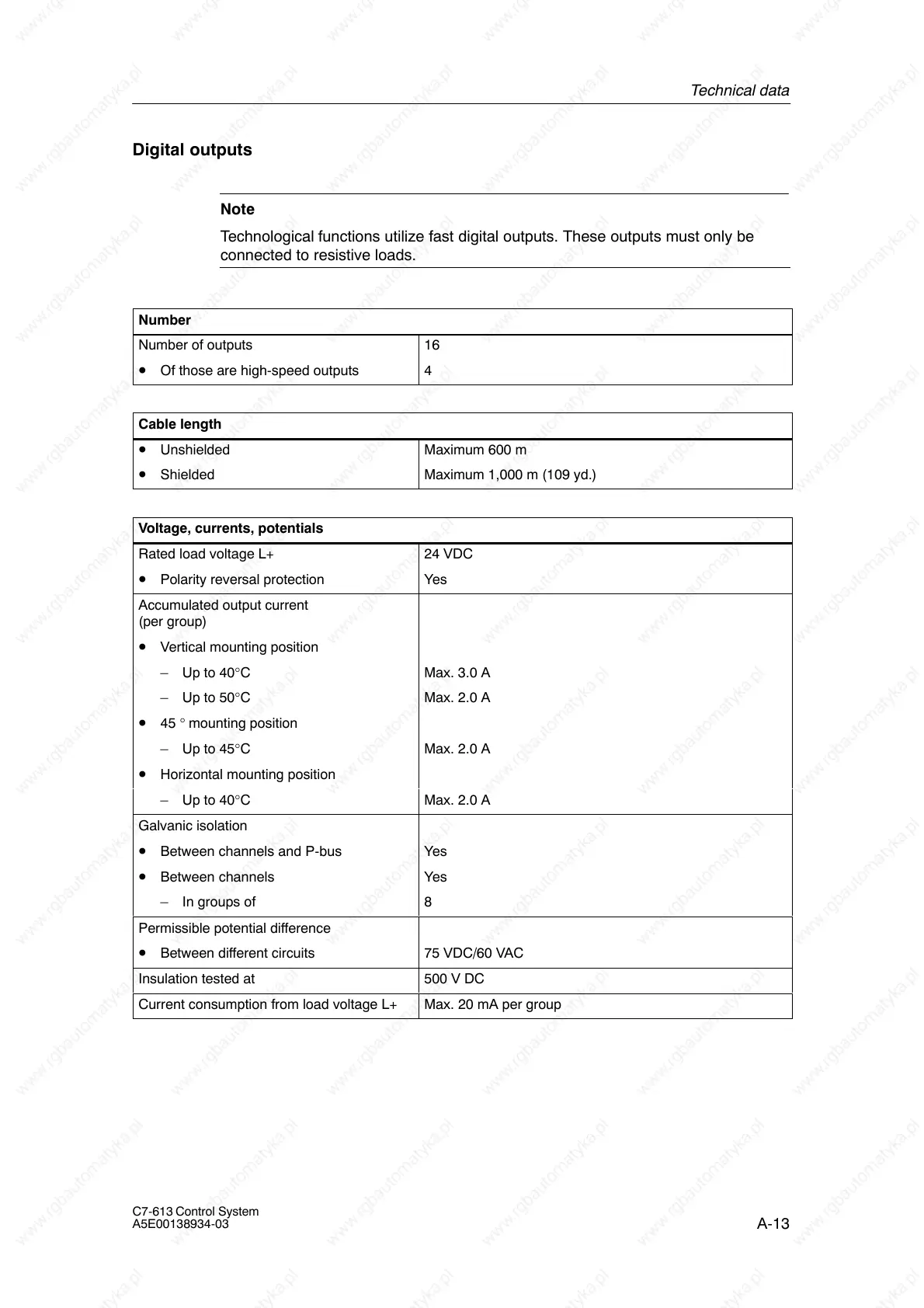

Technical data
A-13
C7-613 Control System
A5E00138934-03
Digital outputs
Note
Technological functions utilize fast digital outputs. These outputs must only be
connected to resistive loads.
Number
Number of outputs 16
• Of those are high-speed outputs 4
Cable length
• Unshielded Maximum 600 m
• Shielded Maximum 1,000 m (109 yd.)
Voltage, currents, potentials
Rated load voltage L+ 24 VDC
• Polarity reversal protection Yes
Accumulated output current
(per group)
• Vertical mounting position
– Up to 40°C Max. 3.0 A
– Up to 50°C Max. 2.0 A
• 45 ° mounting position
– Up to 45°C Max. 2.0 A
• Horizontal mounting position
– Up to 40°C Max. 2.0 A
Galvanic isolation
• Between channels and P-bus Yes
• Between channels Yes
– In groups of 8
Permissible potential difference
• Between different circuits 75 VDC/60 VAC
Insulation tested at 500 V DC
Current consumption from load voltage L+ Max. 20 mA per group
