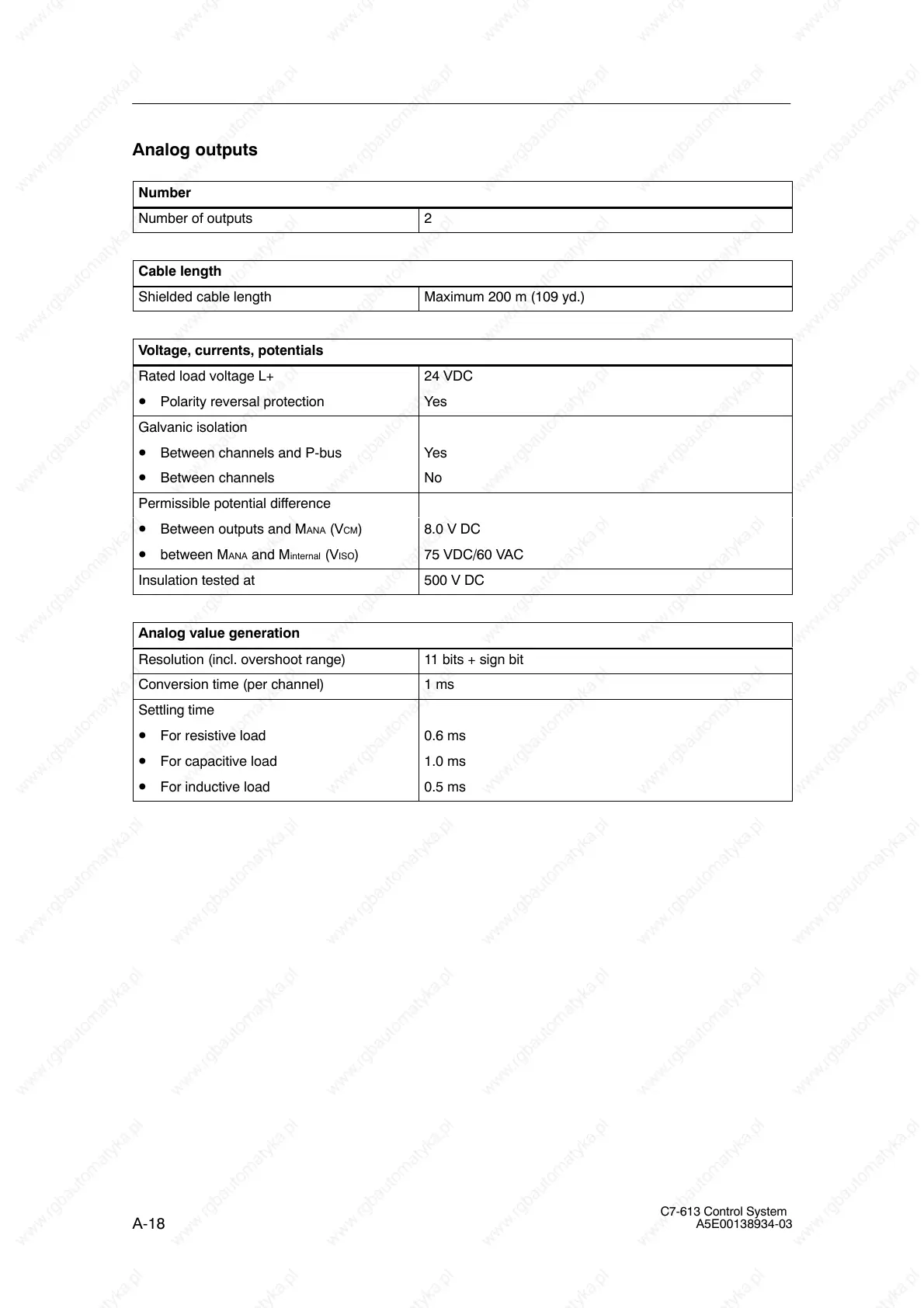

A-18
C7-613 Control System
A5E00138934-03
Analog outputs
Number
Number of outputs 2
Cable length
Shielded cable length Maximum 200 m (109 yd.)
Voltage, currents, potentials
Rated load voltage L+ 24 VDC
• Polarity reversal protection Yes
Galvanic isolation
• Between channels and P-bus Yes
• Between channels No
Permissible potential difference
• Between outputs and MANA (VCM) 8.0 V DC
• between MANA and Minternal (VISO) 75 VDC/60 VAC
Insulation tested at 500 V DC
Analog value generation
Resolution (incl. overshoot range) 11 bits + sign bit
Conversion time (per channel) 1 ms
Settling time
• For resistive load 0.6 ms
• For capacitive load 1.0 ms
• For inductive load 0.5 ms
