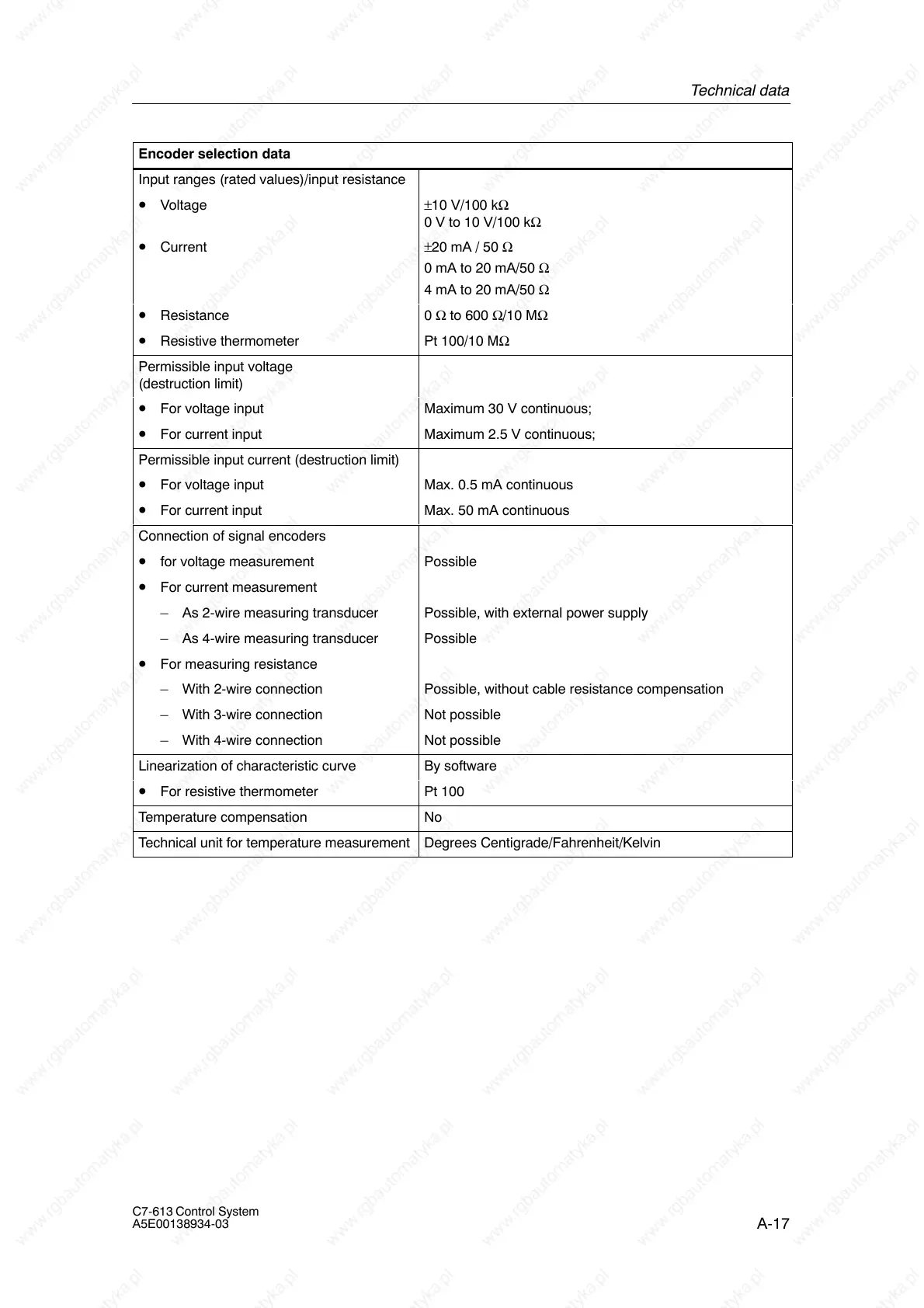

Encoder selection data
Input ranges (rated values)/input resistance
• Voltage ±10 V/100 kΩ
0 V to 10 V/100 kΩ
• Current ±20 mA / 50 Ω
0 mA to 20 mA/50 Ω
4 mA to 20 mA/50 Ω
• Resistance 0 Ω to 600 Ω/10 MΩ
• Resistive thermometer Pt 100/10 MΩ
Permissible input voltage
(destruction limit)
• For voltage input Maximum 30 V continuous;
• For current input Maximum 2.5 V continuous;
Permissible input current (destruction limit)
• For voltage input Max. 0.5 mA continuous
• For current input Max. 50 mA continuous
Connection of signal encoders
• for voltage measurement Possible
• For current measurement
– As 2-wire measuring transducer Possible, with external power supply
– As 4-wire measuring transducer Possible
• For measuring resistance
– With 2-wire connection Possible, without cable resistance compensation
– With 3-wire connection Not possible
– With 4-wire connection Not possible
Linearization of characteristic curve By software
• For resistive thermometer Pt 100
Temperature compensation No
Technical unit for temperature measurement Degrees Centigrade/Fahrenheit/Kelvin
