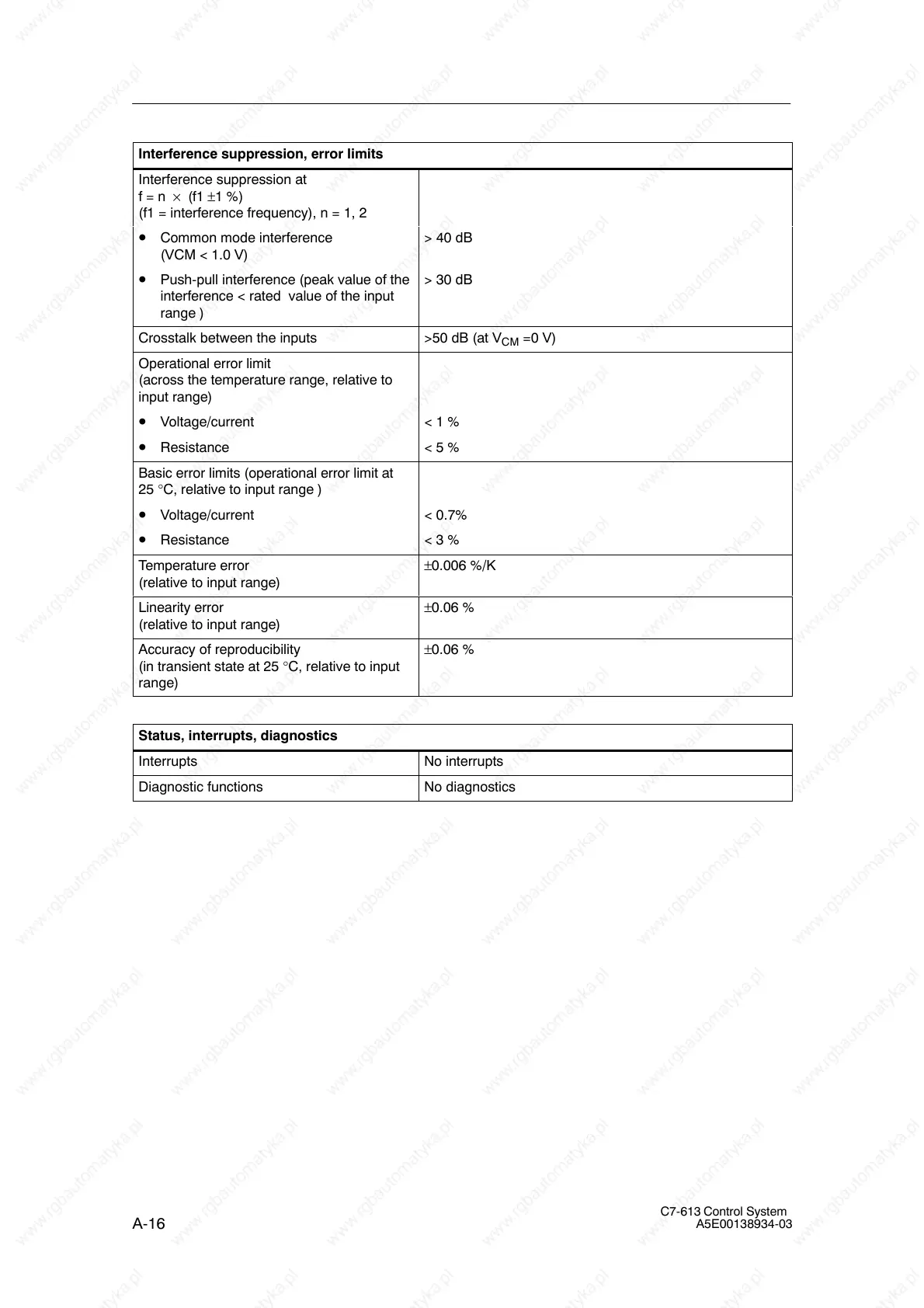

A-16
C7-613 Control System
A5E00138934-03
Interference suppression, error limits
Interference suppression at
f = n × (f1 ±1 %)
(f1 = interference frequency), n = 1, 2
• Common mode interference
(VCM < 1.0 V)
> 40 dB
• Push-pull interference (peak value of the
interference < rated value of the input
range )
> 30 dB
Crosstalk between the inputs >50 dB (at V
CM
=0 V)
Operational error limit
(across the temperature range, relative to
input range)
• Voltage/current < 1 %
• Resistance < 5 %
Basic error limits (operational error limit at
25 °C, relative to input range )
• Voltage/current < 0.7%
• Resistance < 3 %
Temperature error
(relative to input range)
±0.006 %/K
Linearity error
(relative to input range)
±0.06 %
Accuracy of reproducibility
(in transient state at 25 °C, relative to input
range)
±0.06 %
Status, interrupts, diagnostics
Interrupts No interrupts
Diagnostic functions No diagnostics
