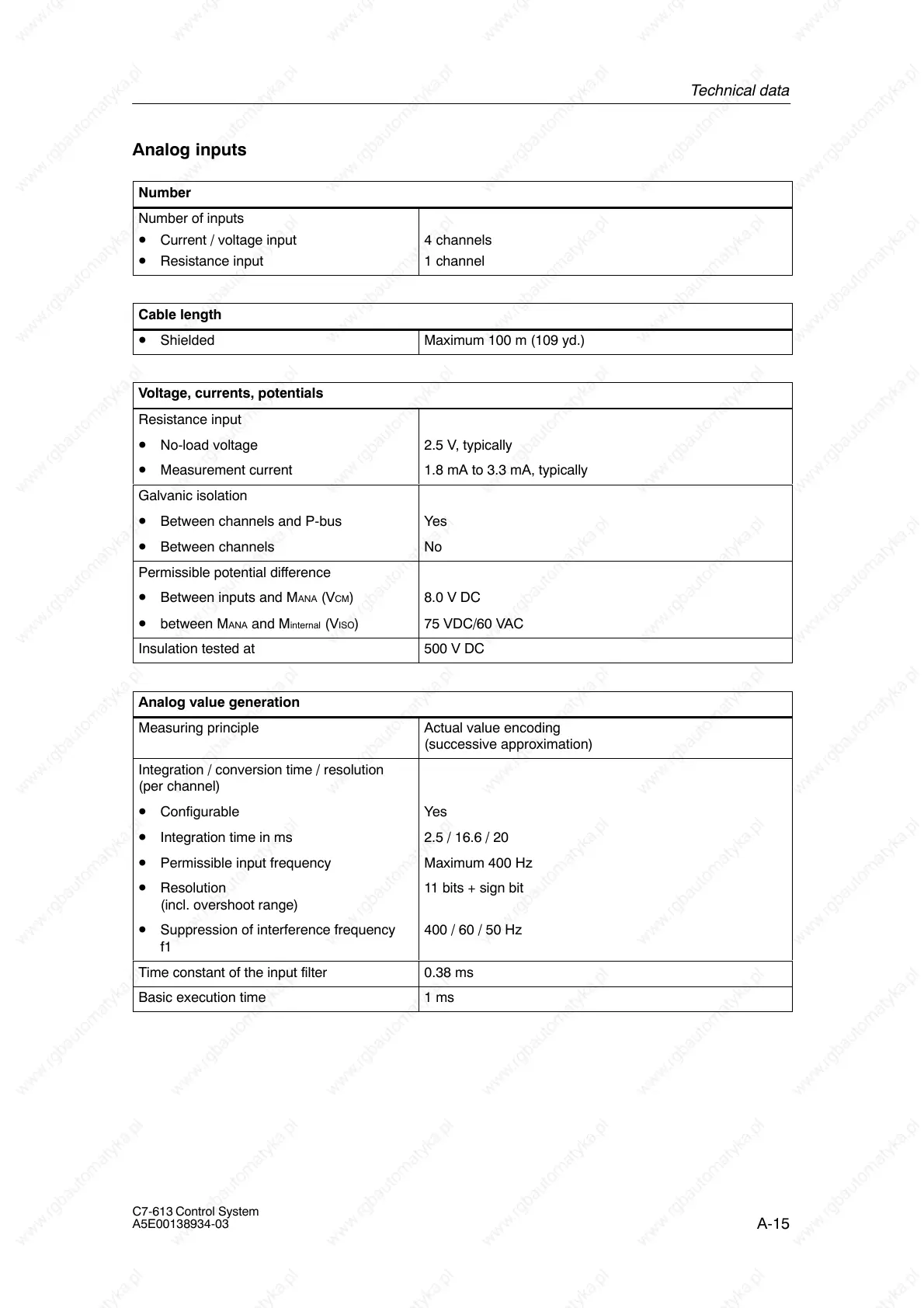

Technical data
A-15
C7-613 Control System
A5E00138934-03
Analog inputs
Number
Number of inputs
• Current / voltage input
• Resistance input
4 channels
1 channel
Cable length
• Shielded Maximum 100 m (109 yd.)
Voltage, currents, potentials
Resistance input
• No-load voltage 2.5 V, typically
• Measurement current 1.8 mA to 3.3 mA, typically
Galvanic isolation
• Between channels and P-bus Yes
• Between channels No
Permissible potential difference
• Between inputs and MANA (VCM) 8.0 V DC
• between MANA and Minternal (VISO) 75 VDC/60 VAC
Insulation tested at 500 V DC
Analog value generation
Measuring principle Actual value encoding
(successive approximation)
Integration / conversion time / resolution
(per channel)
• Configurable Yes
• Integration time in ms 2.5 / 16.6 / 20
• Permissible input frequency Maximum 400 Hz
• Resolution
(incl. overshoot range)
11 bits + sign bit
• Suppression of interference frequency
f1
400 / 60 / 50 Hz
Time constant of the input filter 0.38 ms
Basic execution time 1 ms
