Installing and Wiring the C7-613
2-9
C7-613 Control System
A5E00138934-03
I/O
connector
X12 top
X11
bottom
I/O connector
X13 top
X10 bottom
Analog output X14
Supply
connector
X1
Micro
Memory
Card
X7
Back-
plane bus
(I/O bus)
X5
Program-
ming
device
conne-cti
on (MPI)
X2
11
1
1

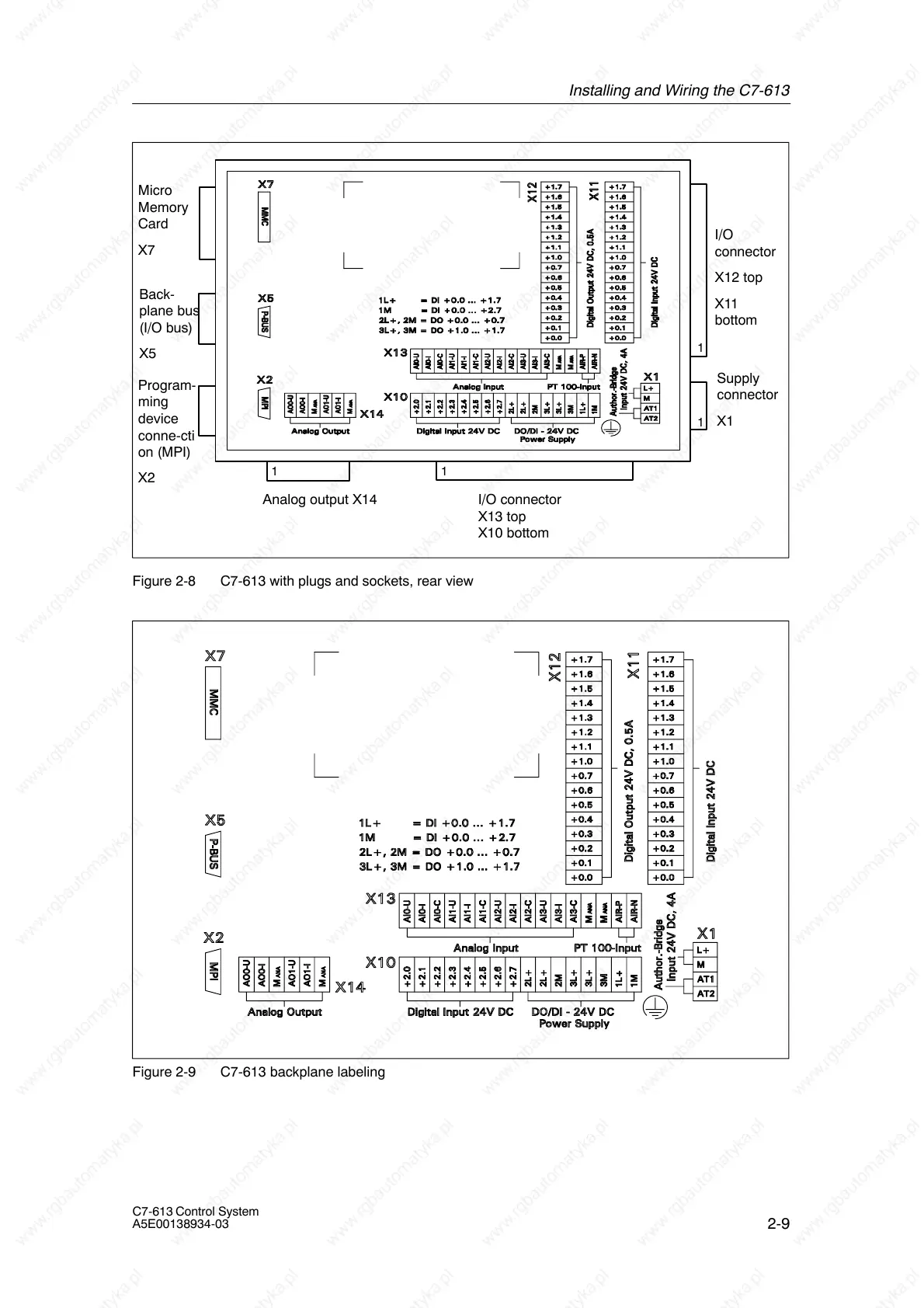

Figure 2-8 C7-613 with plugs and sockets, rear view
Figure 2-9 C7-613 backplane labeling
