Installing and Wiring the C7-613
2-16
C7-613 Control System
A5E00138934-03

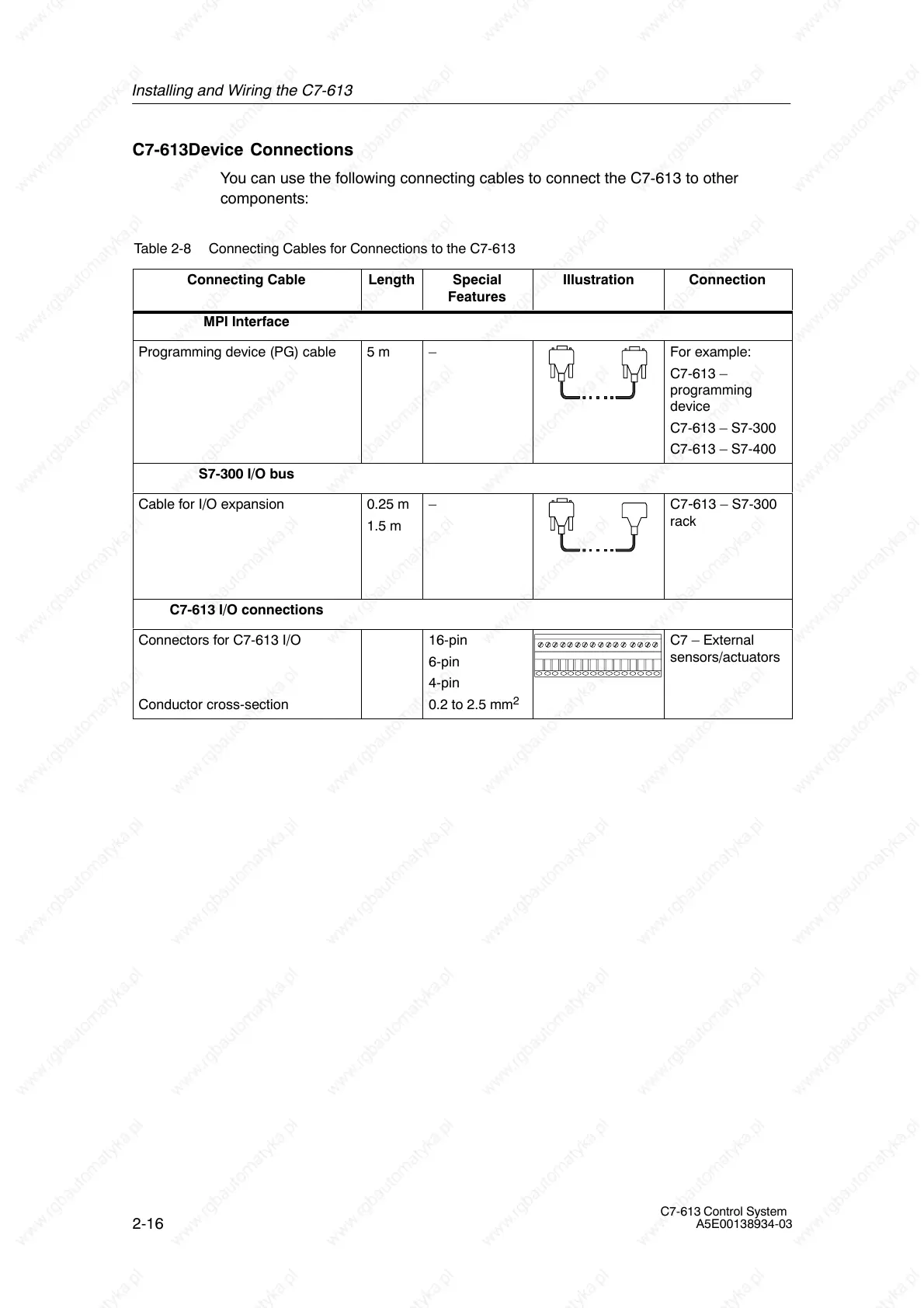

C7-613Device Connections
You can use the following connecting cables to connect the C7-613 to other
components:
Table 2-8 Connecting Cables for Connections to the C7-613
Connecting Cable
Length Special
Features
Illustration Connection
MPI Interface
Programming device (PG) cable 5 m – For example:
C7-613 –
programming
device
C7-613 – S7-300
C7-613 – S7-400
S7-300 I/O bus
Cable for I/O expansion 0.25 m
1.5 m
– C7-613 – S7-300
rack
C7-613 I/O connections
Connectors for C7-613 I/O
Conductor cross-section
16-pin
6-pin
4-pin
0.2 to 2.5 mm
2
C7 – External
sensors/actuators
