Integration into the User Program
4-13
C7-613 Control System
A5E00138934-03

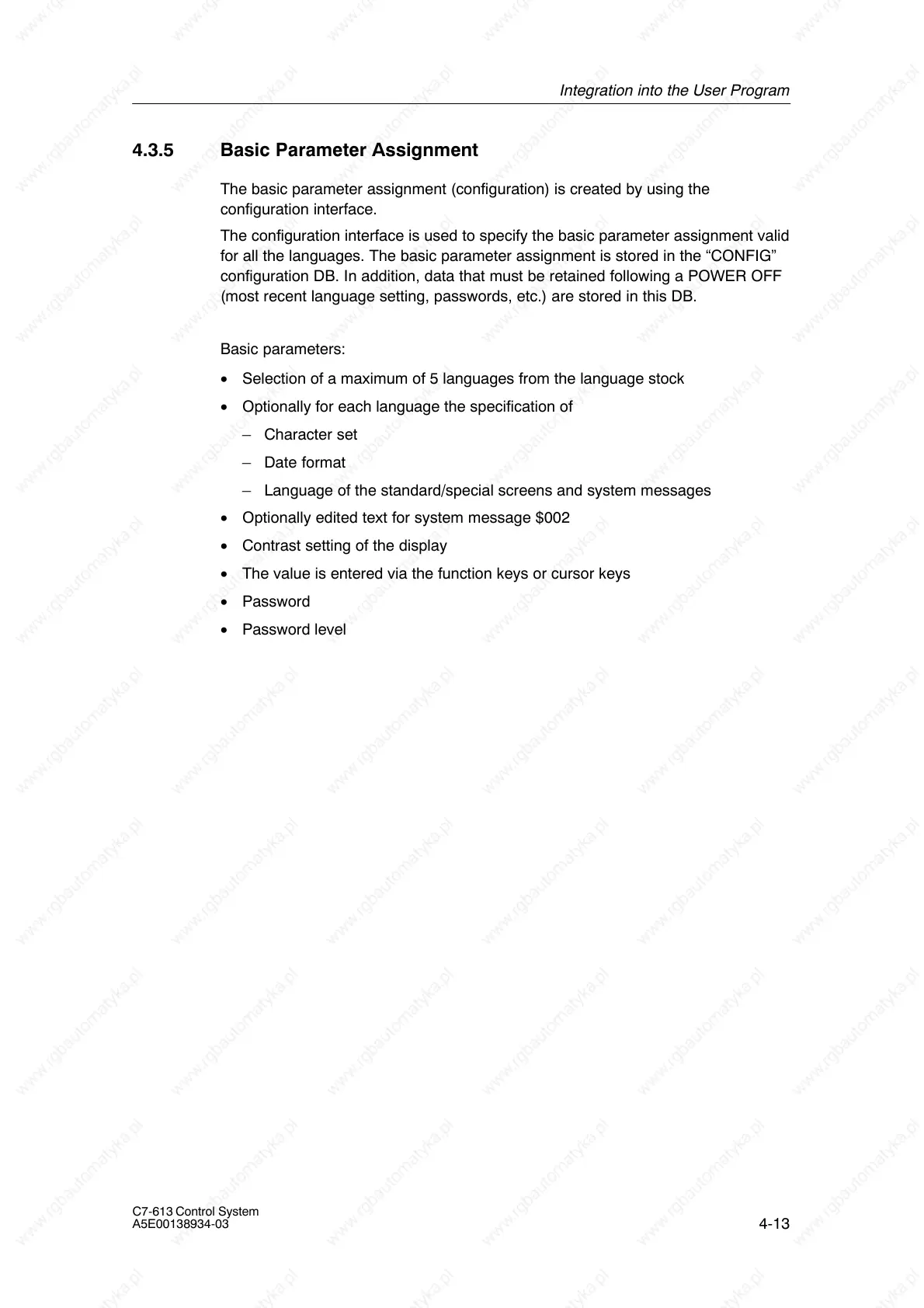

4.3.5 Basic Parameter Assignment
The basic parameter assignment (configuration) is created by using the
configuration interface.
The configuration interface is used to specify the basic parameter assignment valid
for all the languages. The basic parameter assignment is stored in the “CONFIG”
configuration DB. In addition, data that must be retained following a POWER OFF
(most recent language setting, passwords, etc.) are stored in this DB.
Basic parameters:
• Selection of a maximum of 5 languages from the language stock
• Optionally for each language the specification of
– Character set
– Date format
– Language of the standard/special screens and system messages
• Optionally edited text for system message $002
• Contrast setting of the display
• The value is entered via the function keys or cursor keys
• Password
• Password level
