6.4 Interface assignment Mobile Panel 177 PN
Mobile Panel 177 (WinCC flexible)
Operating Instructions (Compact), Edition 07/2005
6-11
6.4.2 RJ45
RJ45 connector for the connecting cable


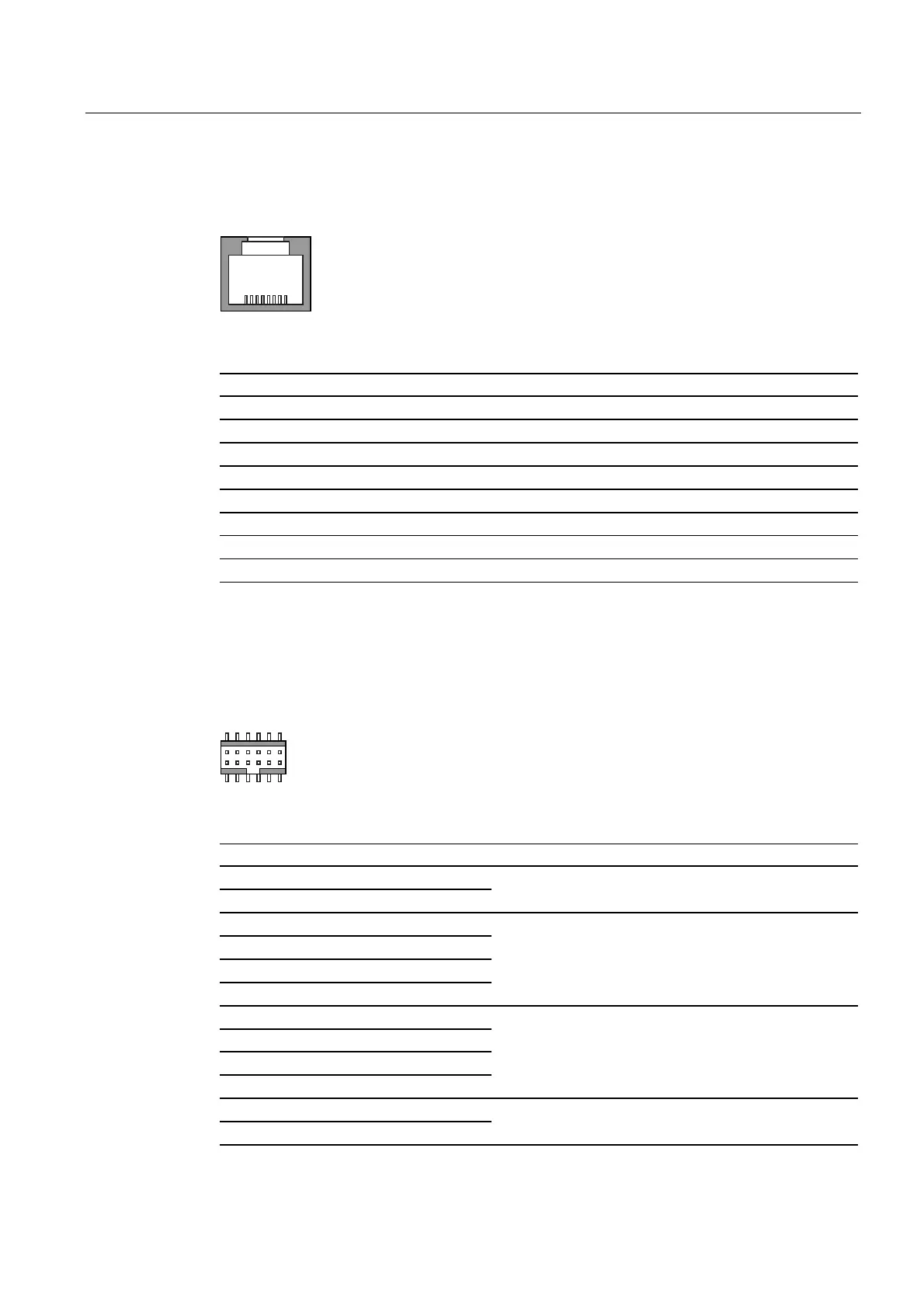

Figure 6-8 Pin assignment of the RJ45 connector
PIN Assignment
1 TD+
2 TD-
3 RD+
4 n. c.
5 n. c.
6 RD-
7 ICD+
8 ICD–
6.4.3 Female header
Female header for the connecting cable
 
 
Figure 6-9 Pin assignment of 12-pin female header
PIN Assignment Circuit
1 +24 V DC
2 GND 24 V
Power supply
3 Stop 23
4 Stop 24
5 Stop 13
6 Stop 14
Stop circuit
7 Enable 1+
8 Enable 1–
9 Enable 2+
10 Enable 2–
Enable circuit
11 ICD+
12 ICD–
Box ID
