Specifications
6.6 Interface assignment Terminal Box PN
Mobile Panel 177 (WinCC flexible)
6-16 Operating Instructions (Compact), Edition 07/2005
6.6 6.6 Interface assignment Terminal Box PN
Position of the ports




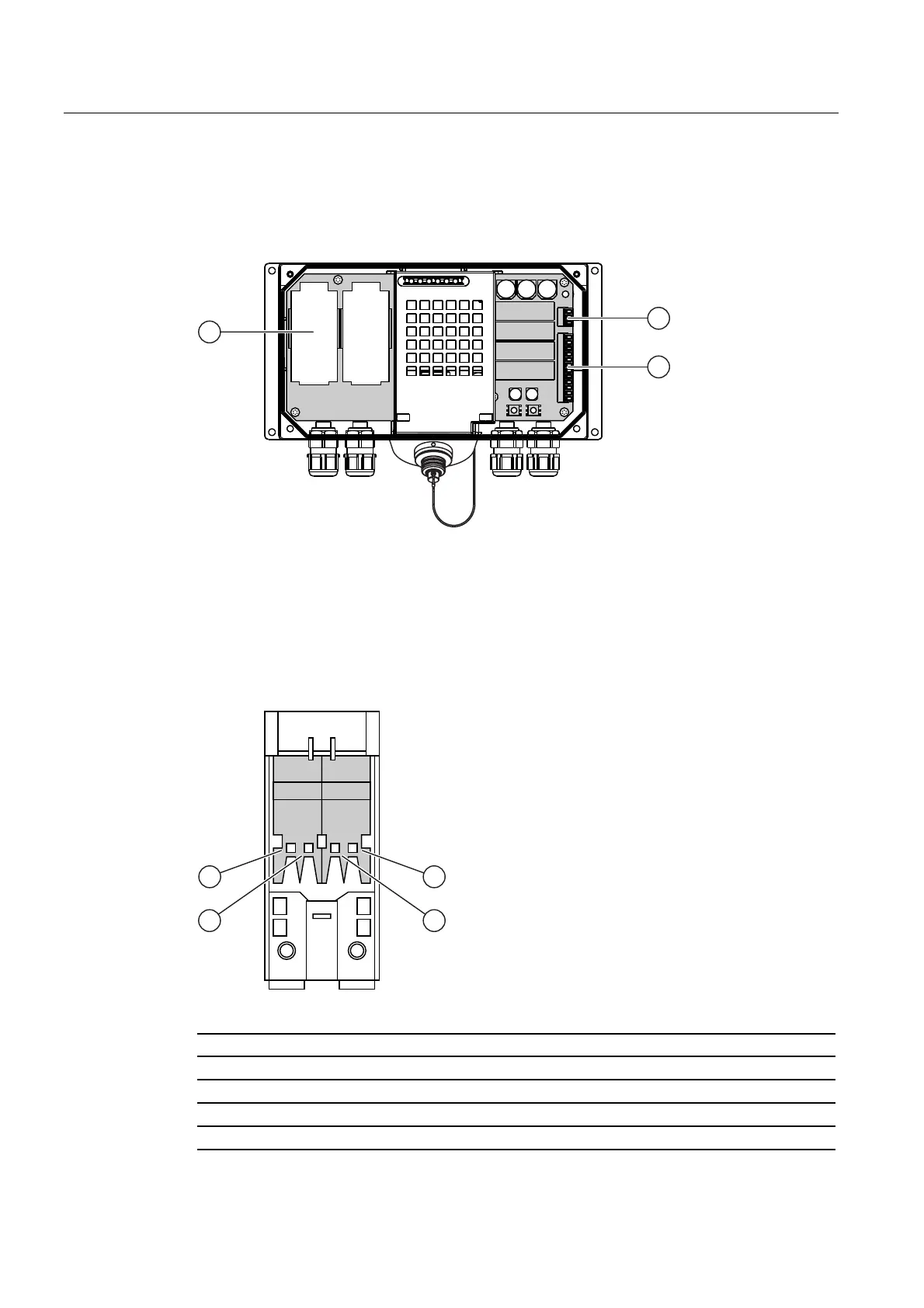

Figure 6-14 Position of the ports
① Fast connector
② Terminal strip 1
③ Terminal strip 2
Fast connector
The terminal box contains two fast connectors for connecting to PROFINET.
   

 

Figure 6-15 Assignment of 4-pin fast connector
Pin Assignment
1 TD+
2 RD+
3 TD-
4 RD-
