Siemens simatic hmi op27 User Manual

18-12
OP27, OP37 Equipment Manual
Release 05/99
3. Connect the connector of the DKM ribbon cable to the plug connector of
the OP in such a way that the color -coded side of the ribbon cable is facing
toward the center of the unit (see Figure 18-9).
Color coding
Pins
Ribbon cable

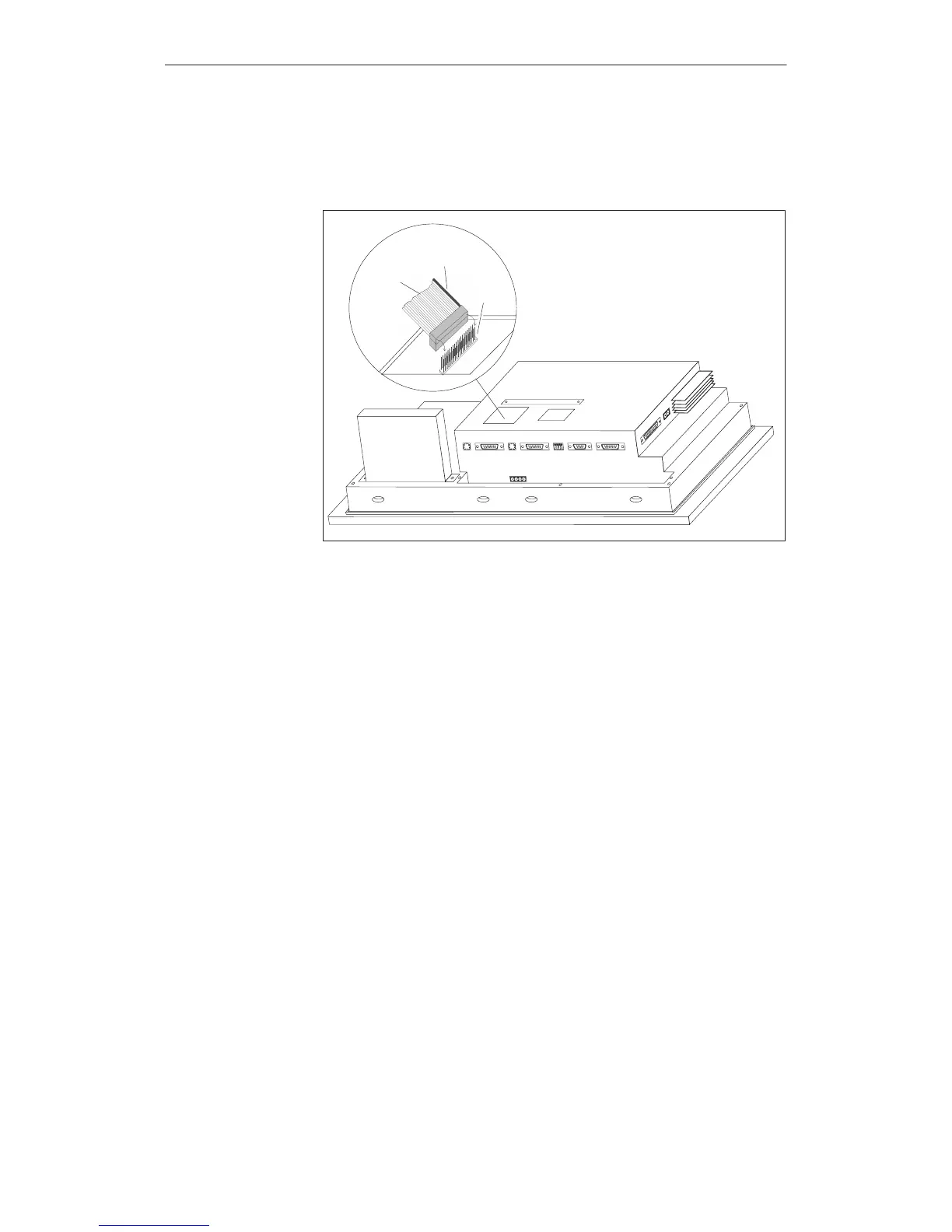

Figure 18-9 Connect the control panel interface plug (example OP37)
Options
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Siemens simatic hmi op27 Specifications

General

Brand	Siemens
Model	simatic hmi op27
Category	Control Panel
Language	English
