Properties
Interface module IM151-1 STANDARD (6ES7151-1AA06-0AB0)
8 Manual, 07/2015, A5E01075950-AD
Terminal assignment
The following table shows the terminal assignment of the IM151-1 STANDARD interface
module for the 24 V DC voltage supply and PROFIBUS DP:

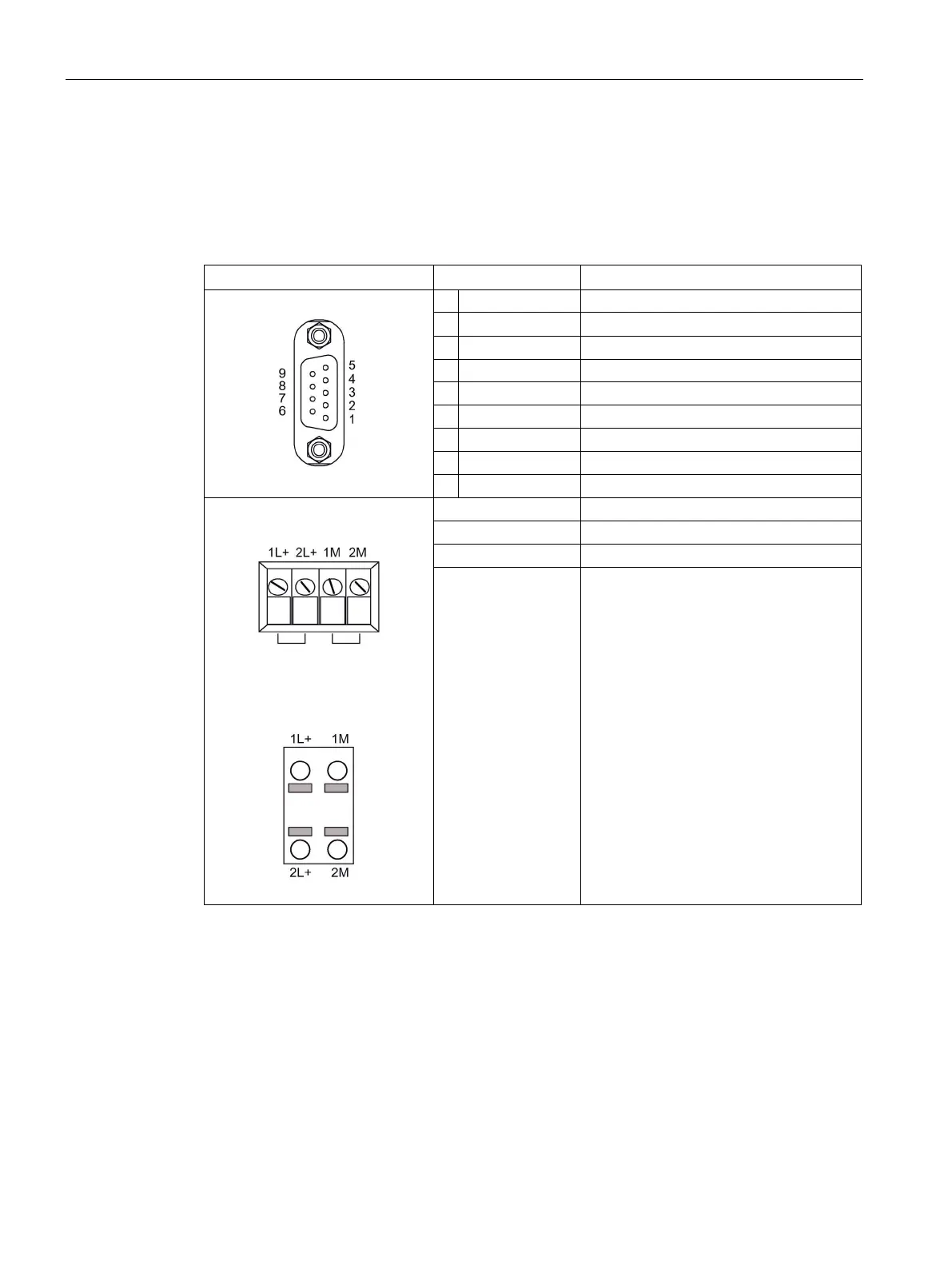

Table 1- 1 Terminal assignment of the IM151-1 STANDARD interface module
View
Signal name
Description
1
-
-
2 - -
3
RxD/TxD-P
Data line B
4
RTS
Request to send
5
M5V2
Data reference potential (from station)
6
P5V2
Supply plus (from station)
7
-
-
8
RxD/TxD-N
Data line A
9
Up to 6ES7151-1AA04-0AB0,
product release 6
As of 6ES7151-1AA04-0AB0,
product release 7 or as of
6ES7151-1AA05-0AB0
1L+
24 V DC
2L+
24 V DC (for loop through)
1M
Ground
2M Ground (for loop through)
